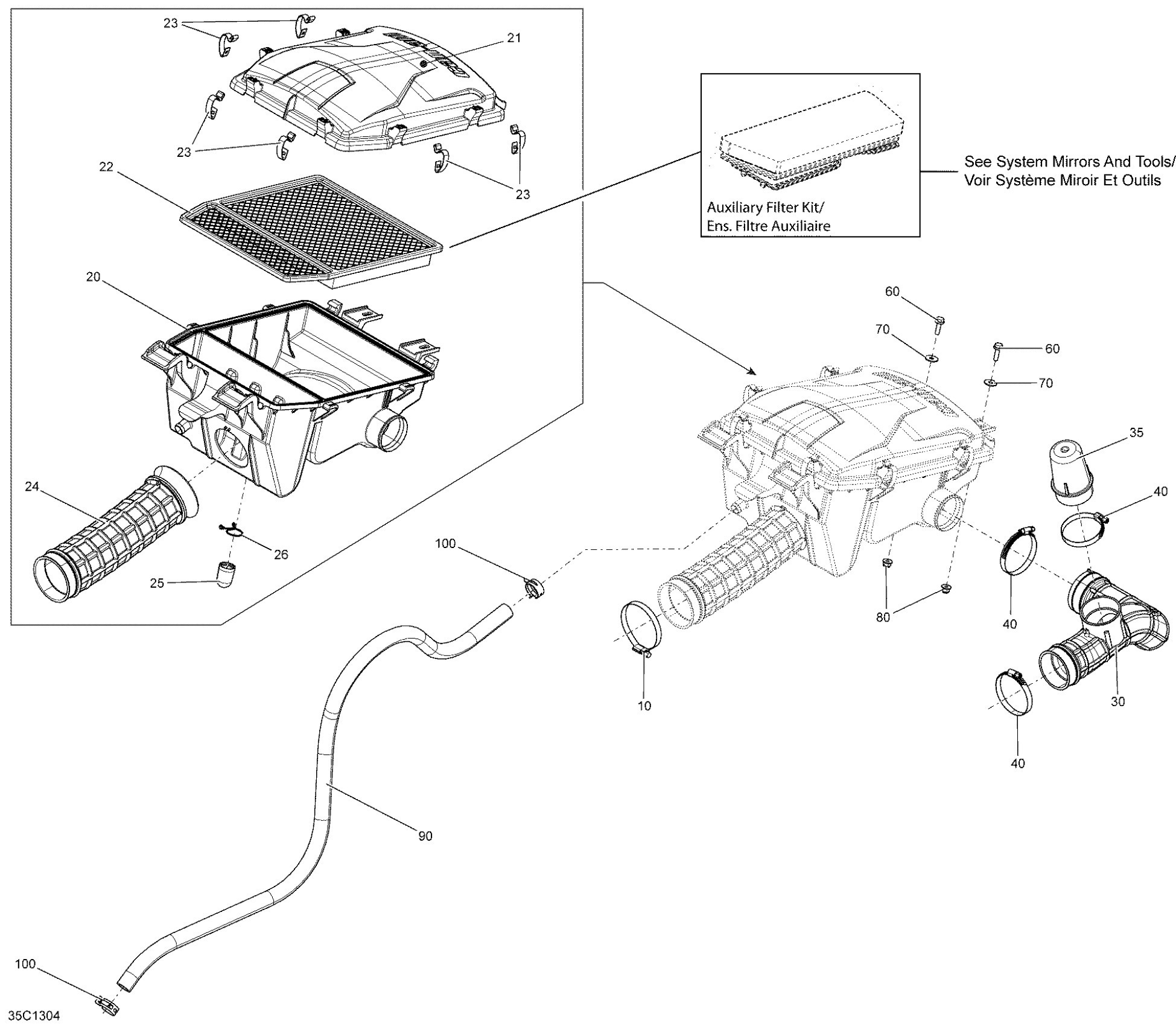

Can-Am Maverick 1000, STD, XRS, 2013 Air Intake Diagram

#

Description
Price

10

Norma Clamp

293650091

$4.60

20

Air Intake Silencer Base

707800517

$50.74

21

Air Intake Silencer Cover

707800326

$32.28

22

Air Filter

707800327

$50.34

23

Cover Bracket

707800249

$8.45

24

Intake Adaptor

707800329

$46.12

25

Drain Tube

707800080

$7.37

26

Retainer Clip

707800278

$12.91

30

Intake Adaptor

707800532

$59.97

35

Intake Adaptor Tank

707800533

$4.62

40

Norma Clamp

293650079

$8.89

60

Hex. Flange Screw M6 X 20

207662044

$1.66

70

Flat Washer

250200082

$0.35

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

90

Was 707800411 Hose 15.88 mm

219704438

$11.98

100

Norma Spring Clamp

293650213

$3.11
