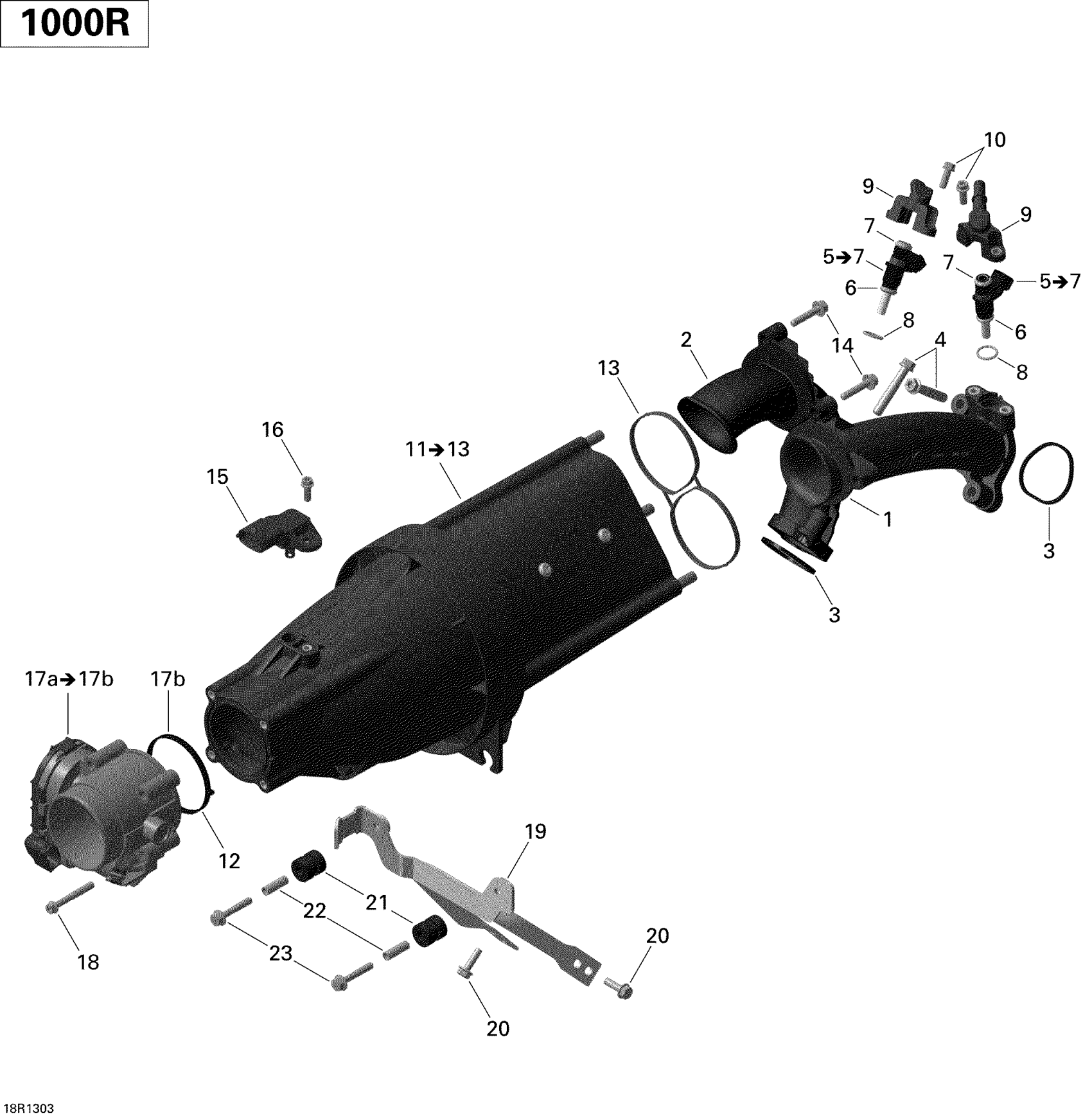

Can-Am Maverick 1000, STD, XRS, 2013 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Rear Air Intake Manifold

420667740

$73.99

2

Front Air Intake Manifold

420667742

$73.99

3

Gasket

420630642

$5.39

4

Hex. Flange Screw M8 X 45

420641208

$7.51

5

Injection Valve Ass'Y | Includes 18 to 20

420874833

$158.99

6

O-Ring

420431890

$7.49

7

O-Ring

420631220

$14.28

8

O-Ring

420631296

$0.76

9

Fuel Rail

420874901

$24.49

10

Torx Flange Screw M6 X 16

420641048

$2.96

11

Air Inlet Manifold Ass'y | Includes 11 to 13

420667750

$184.99

12

Gasket | Included in gasket kit

420431900

$5.40

13

Gasket

420431903

$8.85

14

Hex. Screw M6 X 30

420241947

$4.76

15

Pressure And Temperature Sensor

707000995

$88.99

16

Hex. Flange Screw M6 X 12

420440147

$2.00

17a

Throttle Body Socket Ass'y

420892596

$466.49

17b

Gasket | Included in gasket kit

420431900

$5.40

18

Torx Flange Screw M6 X 45

420641198

$4.12

19

Support

420651521

$81.99

20

Hex.Screw M6 X 20

420441311

$5.18

21

Rubber Bracket

420660090

$4.12

22

Spacer

420847971

$7.41

23

Hex. Screw M6 X 35

420441457

$3.91
