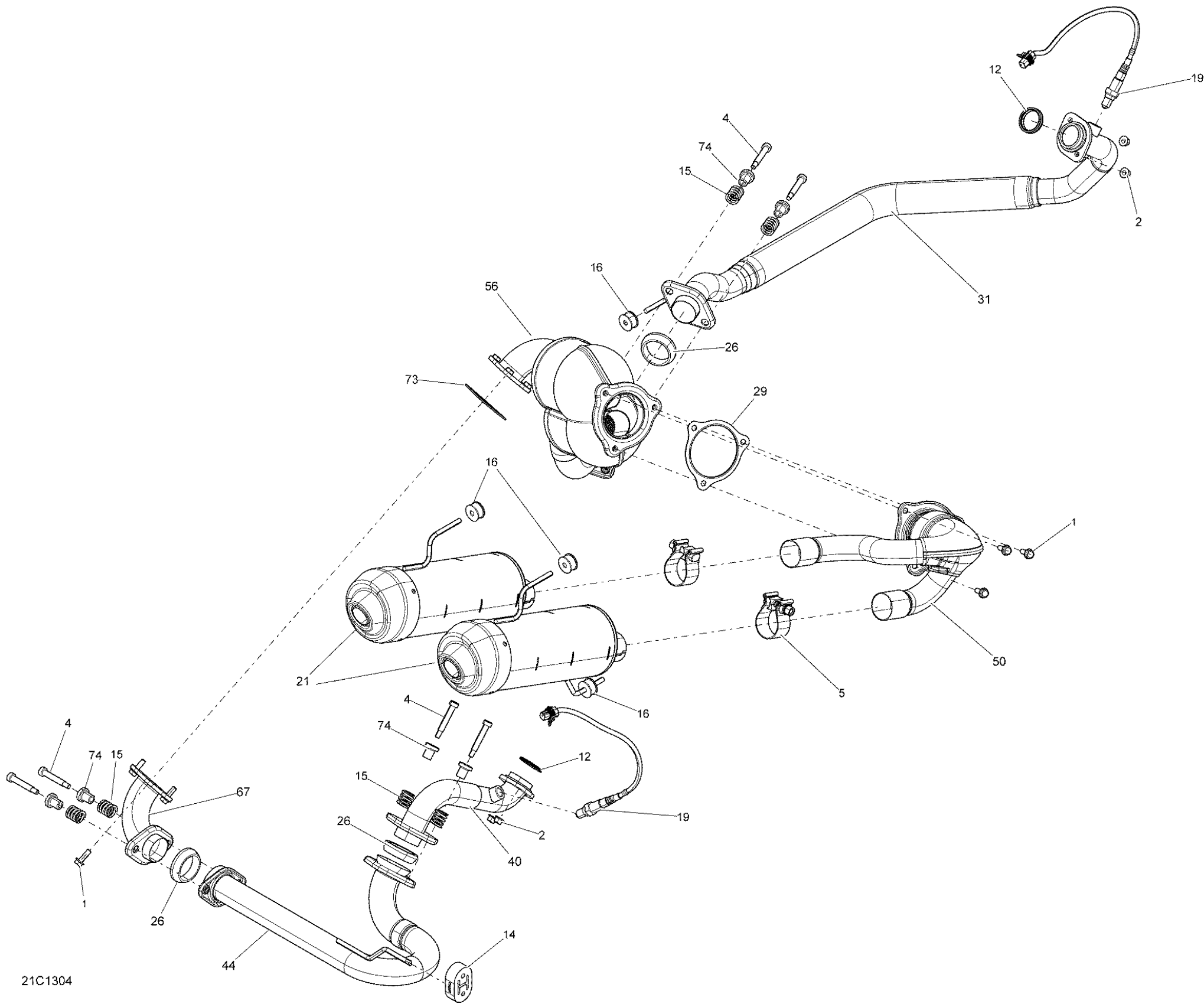

Can-Am Maverick 1000, STD, XRS, 2013 Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 25

207682544

$0.90

2

Hex. Flange Nut M8

233081416

$1.63

4

Socket Head Screw M10 X 50

250000658

$7.98

5

Gear Clamp

293650231

$12.97

12

Gasket

707600317

$10.52

14

Rubber Bumper

707600638

$14.37

15

Spring

707600682

$6.45

16

Anti-Vibration Rubber

707600702

$8.34

19

Oxygen Sensor

707600872

$115.67

21

Muffler

707601038

$775.35

26

Seal

707601128

$18.43

29

SEAL JOINT - Call your local BRP dealership

707601147

Unavailable

31

FRONT HEAD PIPE - Call your local BRP dealership

707601210

Unavailable

40

REAR HEAD PIPE - Call your local BRP dealership

707601213

Unavailable

44

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707601214

Unavailable

50

PIPE_EXHAUST OUT WELD - Call your local BRP dealership

707601278

Unavailable

56

PIPE - Call your local BRP dealership

707601281

Unavailable

67

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707601232

Unavailable

73

SEAL - Call your local BRP dealership

707601244

Unavailable

74

Bushing

707601254

$11.06
