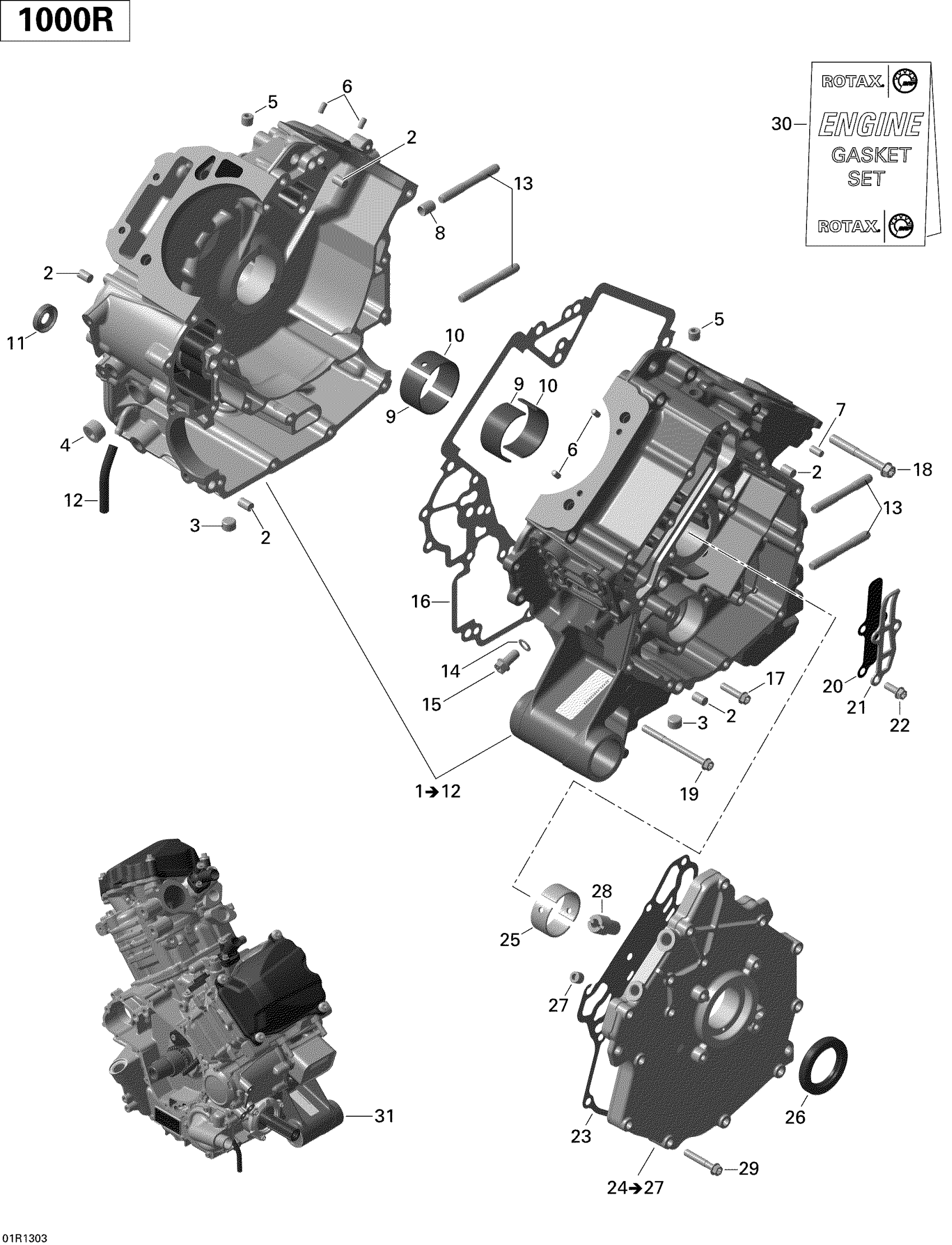

Can-Am Maverick 1000, STD, XRS, 2013 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 12

420686416

$1,199.97

2

Center Pin 8 X 12

420632010

$3.07

3

Plug Screw M12x1,5

420840658

$7.31

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.23

5

Plug Screw M10 X 1

420641323

$11.48

6

Drive Pin 5 X 10

420929650

$1.34

7

Needle Pin

420932780

$7.23

8

Dowel Pin 10 X 13

420929670

$10.52

9

Plain Bearing

420233960

$22.79

10

Plain Bearing

420233965

$22.79

11

Oil Seal

420650315

$9.62

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Stud

420240816

$7.37

14

Sealing Ring

420950141

$1.64

15

Torx Flange Screw M8 X 16

420440852

$4.00

16

Gasket

420651227

$32.28

17

Torx Flange Screw M6 X 25

420641238

$2.68

18

Torx Flange Screw M8 X 65

420440402

$7.23

19

Torx Flange Screw M6 X 75

420440657

$4.28

20

Reed Valve

420224721

$16.89

21

Reed Valve Stop

420224725

$11.09

22

Torx Flange Screw M6 X 16

420641048

$2.46

23

Gasket

420651211

$26.12

24

PTO Cover Ass'y | Includes 25a to 29

420612335

$272.28

25

Bearing Sleeve

420233995

$19.94

26

Oil Seal

420631933

$26.89

27

Plug Screw M10 X 1

420641323

$11.48

28

Hose Nipple M12 X 1.5

420256334

$10.14

29

Torx Flange Screw M6 X 35

420440274

$0.83

30

Gasket Kit, Engine

420684151

$452.28

31

Long Block Kit

420101006

$3,995.99
