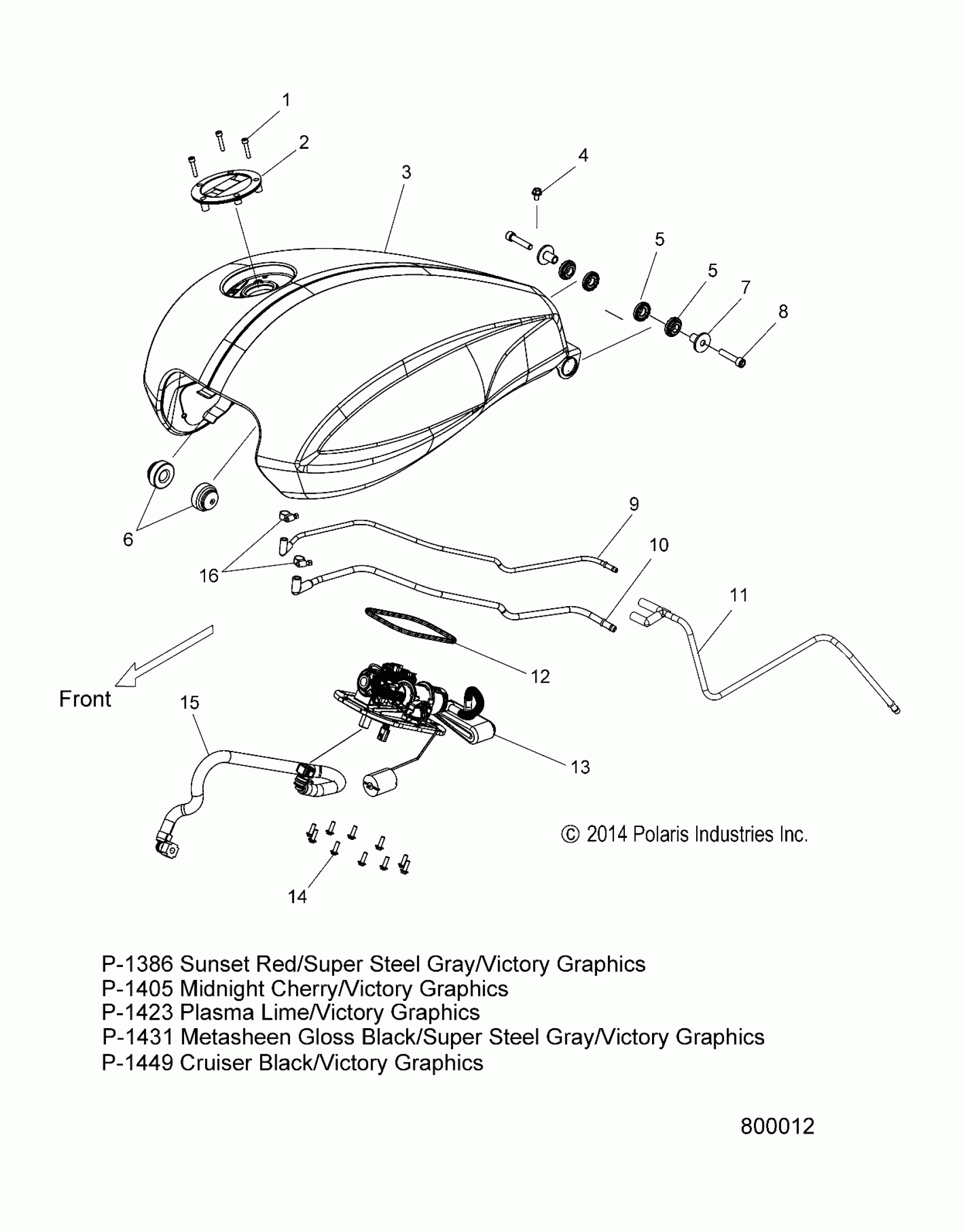

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS - V15UW/YW/ZW36 FUEL SYSTEM, FUEL TANK - V15UW/YW/ZW36 ALL OPTIONS (800012) Diagram

#

Description

Price

1

SCREW

7518086

$5.59

2

ASM., IGNITION, FUEL CAP, FRK, SBLKS, BLACK

4012944-266

Unavailable

3

TANK, FUEL

1016149-1431

Unavailable

3

TANK, FUEL

1016149-1386

Unavailable

3

TANK, FUEL

1016149-1405

Unavailable

3

TANK, FUEL

1016149-1423

Unavailable

3

TANK, FUEL [X-1]

1016149-1449

Unavailable

4

SCREW

7518393

Unavailable

5

ISOLATOR, TANK, REAR

5413491

Unavailable

5

ISOLATOR, TANK, REAR

5413491

Unavailable

6

ISOLATOR, TANK, FRONT

5413479

Unavailable

7

BUSHING, FLANGE

5136409

Unavailable

8

SCREW

7518178

Unavailable

9

LINE, FUEL VENT

5437603

Unavailable

10

LINE, WATER DRAIN

5437602

Unavailable

11

LINE, WTR/VENT TO GND

5437604

Unavailable

12

SEAL, FUEL

5413346

Unavailable

13

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, FILTER, SENDER] [ALSO ORDER FUEL LINE 5414151, IF REPLACING FUEL PUMP 2521020]

2521171

Unavailable

13

ASM., SENDER, FUEL LEVEL

2521022

Unavailable

13

ASM., FILTER, FUEL

2521021

Unavailable

14

SCREW

7519765

Unavailable

15

LINE, FUEL [FOR FUEL PUMP 2521171]

5414151

Unavailable

16

CLAMP, HOSE

7081151

Unavailable
