- MAGNUM/MAGNUM X-1 ALL OPTIONS - V15UW/YW/ZW36
ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 1 - V15UW/YW/ZW36 ALL OPTIONS (800011)

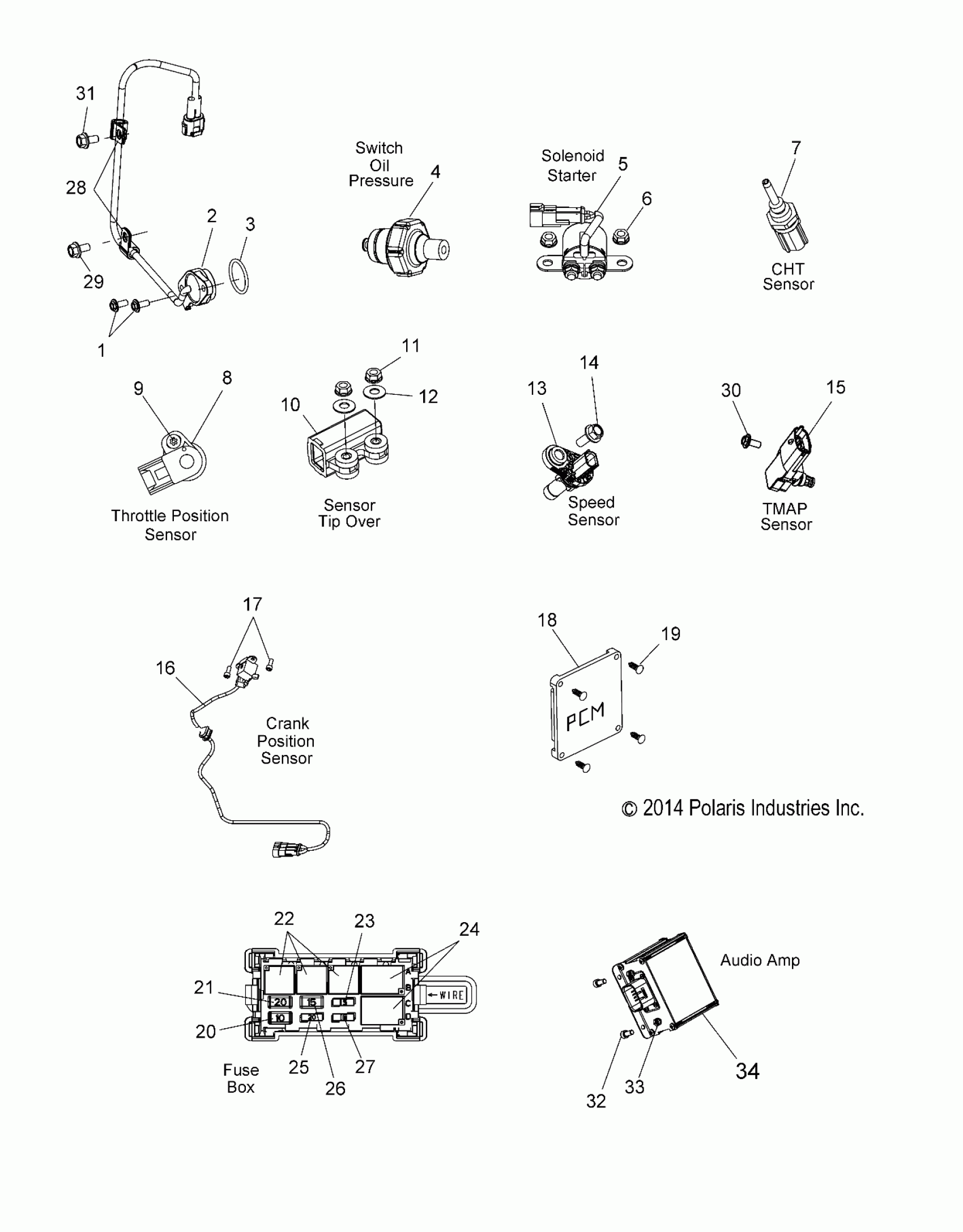

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS - V15UW/YW/ZW36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 1 - V15UW/YW/ZW36 ALL OPTIONS (800011) Diagram
#
Description
Price
1
SCREW
7518338
$4.79
2
SWITCH, GEAR INDICATOR
4013956
Unavailable
3
O-RING
5412530
$1.59
4
SWITCH, OIL PRESSURE
4012668
Unavailable
5
SOLENOID, STARTER,C1100,W/WASHER
4014471
Unavailable
6
Nut
7710495
$4.79
7
SENSOR, CYLINDER HEAD TEMP
4014970
Unavailable
8
SENSOR, THROTTLE POSITION
4012101
Unavailable
9
SCREW
7518901
Unavailable
10
SENSOR, TIP OVER
4011296
Unavailable
11
NUT
7547126
$3.19
12
WASHER, FLAT
7556477
Unavailable
13
SENSOR, VEHICLE SPEED
4011884
Unavailable
14
SCREW
7517750
Unavailable
15
Sensor, T-Map
2410422
Unavailable
16
SENSOR, CRANK POSITION
4012280
Unavailable
17
SCREW
7518045
$10.39
18
PCM, SERVICE
4013160
Unavailable
19
CLIP, PLASTIC DART
7670141
$4.79
20
BREAKER, CIRCUIT, 10 AMP.
4011371
$15.99
21
BREAKER-CIRCUIT,20 AMP
4011372
$40.46
22
RELAY-SPST,SERIES 303,SEALED
4011283
Unavailable
23
FUSE-MINI BLADE,15 AMP
2410280
Unavailable
24
RELAY, SERIES 301
4011284
$31.99
25
FUSE-PARK,20 AMP
2434017
Unavailable
26
BREAKER, CIRCUIT, 15 AMP.
4011406
$63.99
27
FUSE-IGNITION,10 AMP
2434016
$4.79
28
CLAMP-REAR BRAKE
7080983
$3.99
29
Screw
7517278
$5.59
30
CLAMP-REAR BRAKE
7080983
$3.99
31
SCREW
7518923
Unavailable
32
SCREW [X-1]
7517276
$7.19
33
NUT-M5X.8,HX NYL-Y [X-1]
7546601
$1.49
34
MODULE, AUDIO AMP [X-1]
4014568
$275.87
