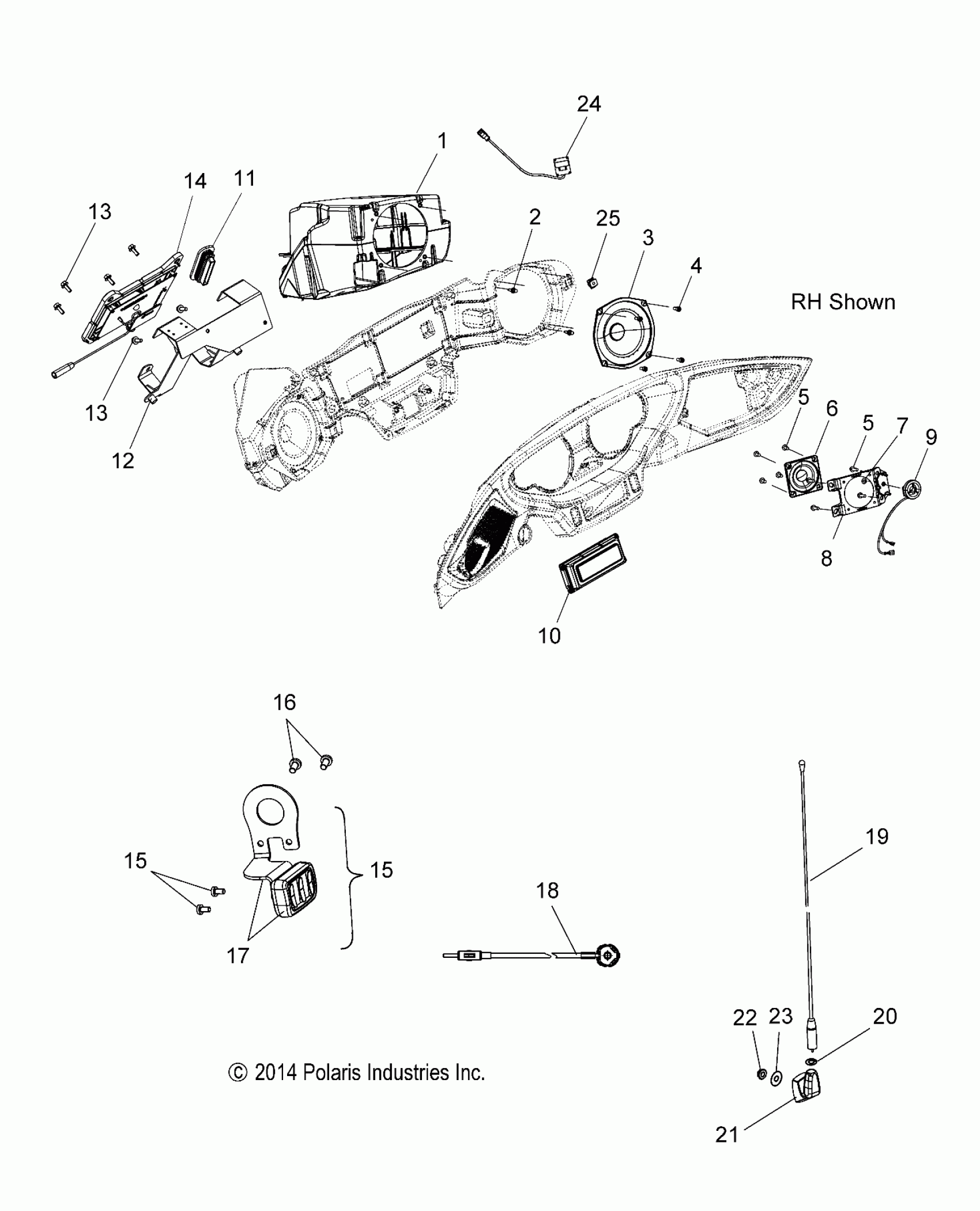

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS - V15UW/YW/ZW36 ELECTRICAL, AUDIO SYSTEM - V15UW/YW/ZW36 ALL OPTIONS (49VICAUDIO15MAG) Diagram

ASM., HOUSING, SPEAKER, RH [INCL. 24]

1020835

Unavailable

ASM., HOUSING, SPEAKER, LH [INCL. 24]

1020834

Unavailable

RIVET, PLASTIC

7661891

Unavailable

SPEAKER, MID WOOFER, 50W

4014820

Unavailable

SCREW

7518811

Unavailable

SCREW

7518641

$3.19

SCREW

7518641

$3.19

SPEAKER, 2.5 MID

4014821

Unavailable

SCREW

7520138

Unavailable

BRKT., SPEAKER GRILL

5451567

Unavailable

SPEAKER, TWEETER

4014822

Unavailable

MODULE, RADIO, MAIN DISPLAY [CONTACT VICTORY TECH SERVICE REP. FOR REPLACEMENT]

-------

Unavailable

PLUG, RADIO

5414927

Unavailable

MOUNT, RADIO

5258585

Unavailable

SCREW

7518591

$3.73

SCREW

7518591

$3.73

MODULE, RADIO, MAIN CONTROLLER [CONTACT VICTORY TECH SERVICE REP. FOR REPLACEMENT]

-------

Unavailable

SCREW

7518691

Unavailable

ASM., RADIO SWITCH, 7 INPUT [INCL. SWITCH, BRKT., AND SCREWS]

1020641

Unavailable

SCREW

7518691

Unavailable

ASM., RADIO SWITCH, 7 INPUT [INCL. SWITCH, BRKT., AND SCREWS]

1020641

Unavailable

WASHER, SPRING LOCK

7552801

$1.59

WASHER, FLAT

7556544

$4.79

SCREW

7517420

Unavailable

SWITCH, RADIO, 7 INPUT

4014874

Unavailable

BRKT., SWITCH, RADIO

5259485

Unavailable

ASM., HARNESS, AM/FM ANTENNA

2411489

$99.99

ANTENNA, MAST, 33 INCH

4012213

Unavailable

WASHER, SPRING LOCK

7552801

$1.59

MOUNT, ANTENNA, 90 DEGREE, ADJ.

4012274

Unavailable

NUT, NYLOK

7547059

$4.79

WASHER, FLAT

7556544

$4.79

HARNESS, SPEAKER ENCLOSURE

2412797

Unavailable

NUT-PAL, M4

7547324

$3.99
