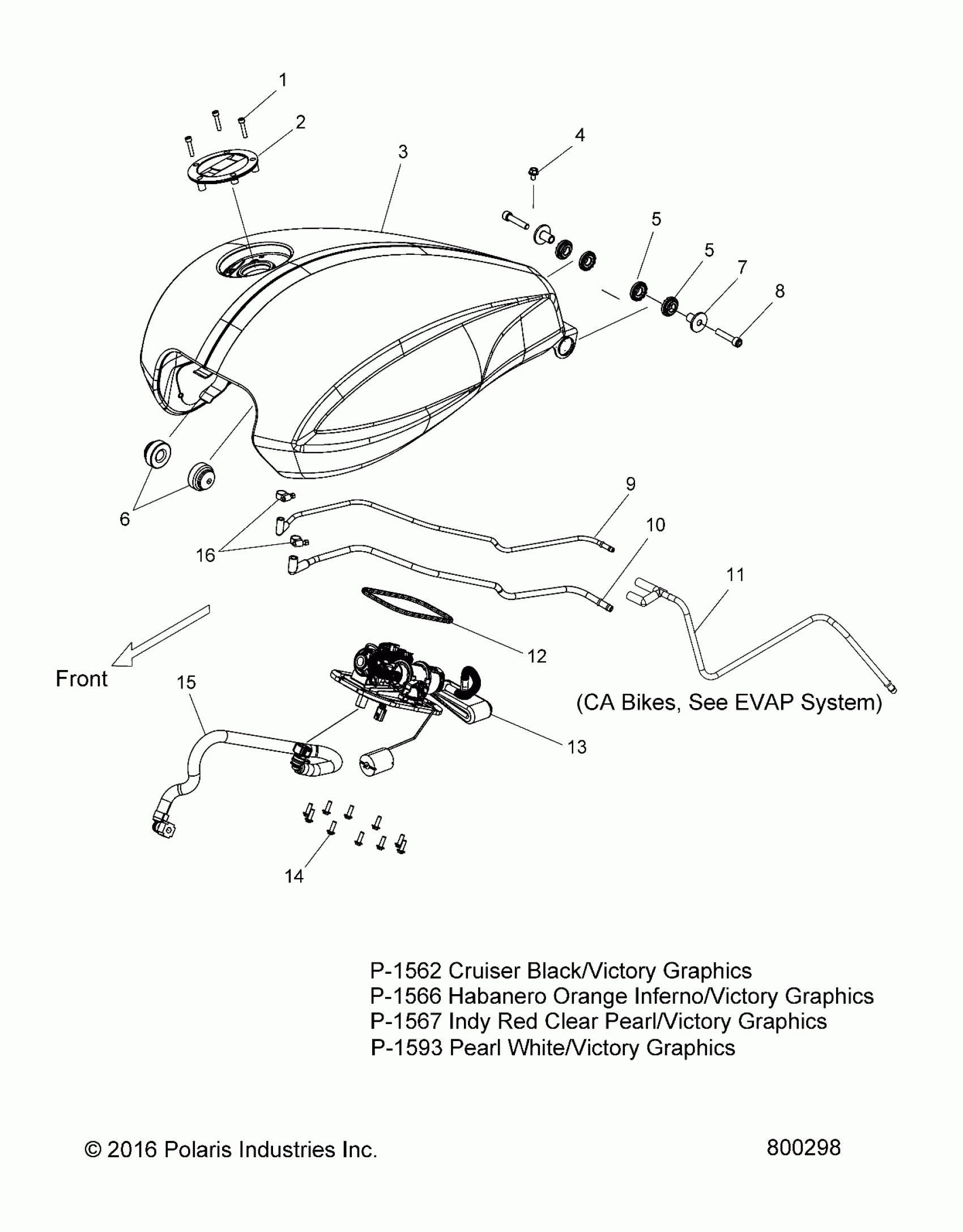

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V17XMA/XMX FUEL SYSTEM, FUEL TANK - V17XMA/XMX ALL OPTIONS (800298) Diagram

#

Description

Price

1

SCREW

7518086

$5.59

2

ASM., IGNITION, FUEL CAP, TRUNK, FRK, SBLKS, BLACK

4012944-266

Unavailable

3

TANK, FUEL

1016149-1562

Unavailable

3

TANK, FUEL

1016149-1566

Unavailable

3

TANK, FUEL

1016149-1567

Unavailable

3

TANK, FUEL [X-1]

1016149-1593

Unavailable

4

SCREW

7518393

Unavailable

5

BUSHING, FLG, RUBBER

5413491

Unavailable

5

BUSHING, FLG, RUBBER

5413491

Unavailable

6

ISOLATOR, TANK, FRONT

5413479

Unavailable

7

BUSHING, FLANGE

5136409

Unavailable

8

SCREW

7518178

Unavailable

9

LINE, FUEL VENT

5453574

Unavailable

10

LINE, WATER DRAIN

5437602

Unavailable

11

LINE, WTR/VENT TO GND

5437604

Unavailable

12

SEAL, FUEL

5413346

Unavailable

13

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, FILTER, SENDER] [ALSO ORDER FUEL LINE 5414151, IF REPLACING FUEL PUMP 2521020]

2521171

Unavailable

13

ASM., SENDER, FUEL LEVEL

2521022

Unavailable

13

ASM., FILTER, FUEL

2521021

Unavailable

14

SCREW

7519765

Unavailable

15

LINE, FUEL

5414151

Unavailable

16

CLAMP, HOSE

7081151

Unavailable
