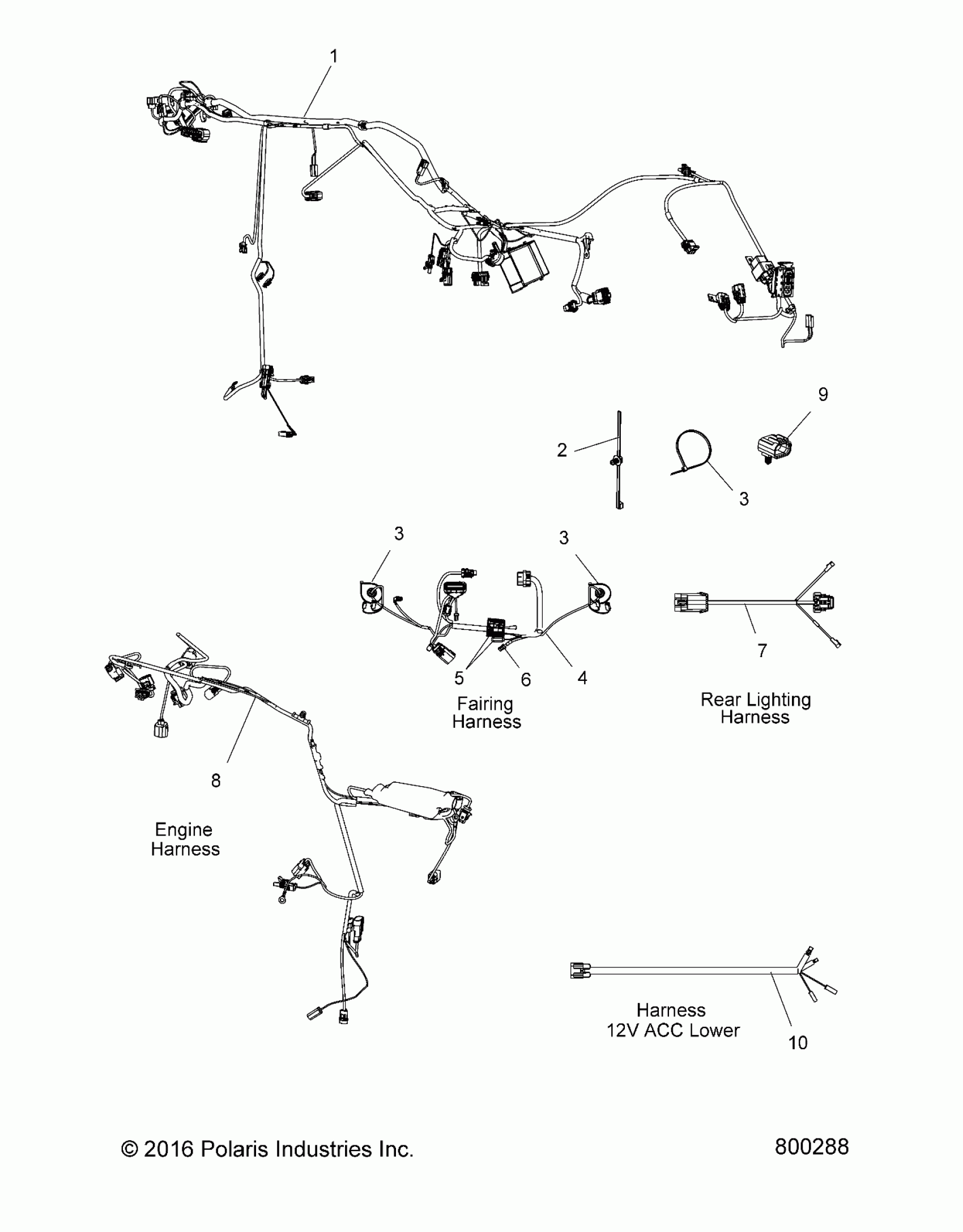

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V17XMA/XMX ELECTRICAL, WIRE HARNESSES - V17XMA/XMX ALL OPTIONS (800288) Diagram

#

Description
Price

1

FUSE-PARK,20 AMP

2434017

Unavailable

1

FUSE-MAIN,30 AMP

2434015

$7.19

1

COVER-FUSEHOLDER

4012260

$9.70

1

COVER-RELAY/FUSE CENTER

5438758

$11.32

1

RELAY

4011828

Unavailable

1

HARNESS-CHASSIS, CROSS, ABS

2413500

Unavailable

2

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

4

FUSE-25A,MINI BLADE

4011653

$7.99

4

COVER-FUSEHOLDER

4012260

$9.70

4

HARNESS, FAIRING, XC, 100W

2412738

Unavailable

5

CAP, BLACK

5438230

$5.59

6

CAP, BLACK

5437357

Unavailable

7

HARNESS, LIGHTING, REAR

2411046

Unavailable

8

KIT, HARNESS, IAC

2878507

$135.99

8

DIODE, 6 AMP

2411035

$51.99

8

HARNESS, ENGINE

2413153

Unavailable

9

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

10

HARNESS, 12V ACC, LOWER

2411747

Unavailable
