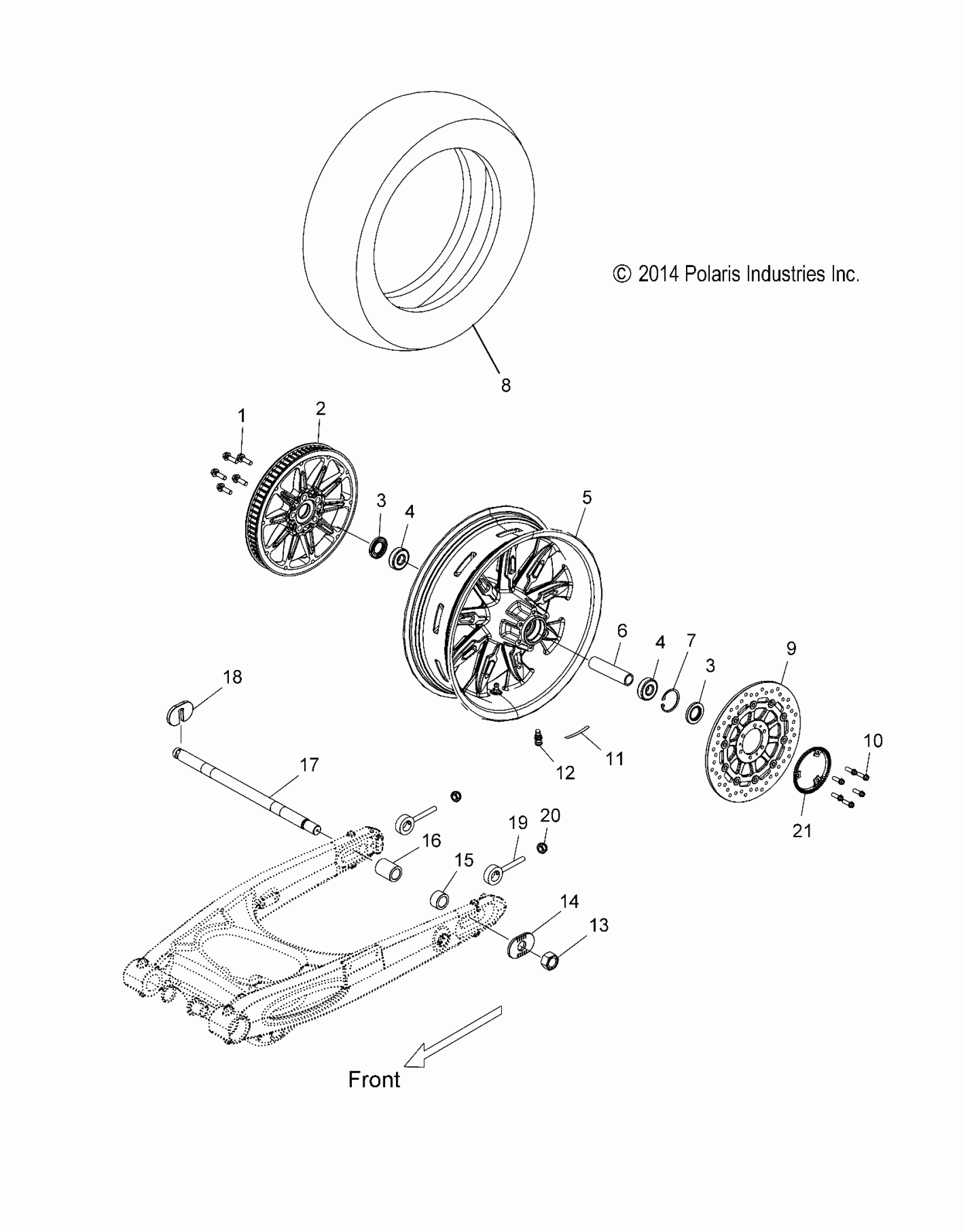

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V16YW36/UW36 WHEELS, REAR - V16YW36/UW6 ALL OPTIONS (49VICWHEELRR15MAG) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

ASM., SPROCKET, DRIVEN, 70T, BLACK WRINKLE

1333369-521

$554.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

ASM., WHEEL, REAR, 16x5, CAST, BLK [INCL. 3-7,12]

1522248-266

Unavailable

5

WHEEL, BILLET, REAR [X-1]

1522297

$1,844.99

6

SPACER, BEARING, MID

5335811

$34.99

7

Ring, Retaining

7710526

$10.32

8

TIRE, 180/60, E3 MULTI COMPOUND

5414888

Unavailable

9

ROTOR, BRAKE, BLACK

1911692-266

$379.99

10

SCREW

7518661

$1.59

11

WEIGHT, BALANCE, BLK

1521682

Unavailable

12

VALVE, RIM

1521312

$11.32

13

NUT

7547226

$23.81

14

WASHER, INDICATOR, AXLE

5248452-236

$27.78

15

SPACER, BEARING, LH

5631479

$3.97

16

SPACER, WHEEL, REAR, RH

5631581

$11.99

17

AXLE, REAR

5137446

$63.49

18

RETAINER, AXLE, REAR

5248599

$27.78

19

ADJUSTER, AXLE

1014895

$36.41

20

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

21

RING, TONE, ABS

5632541

$31.75
