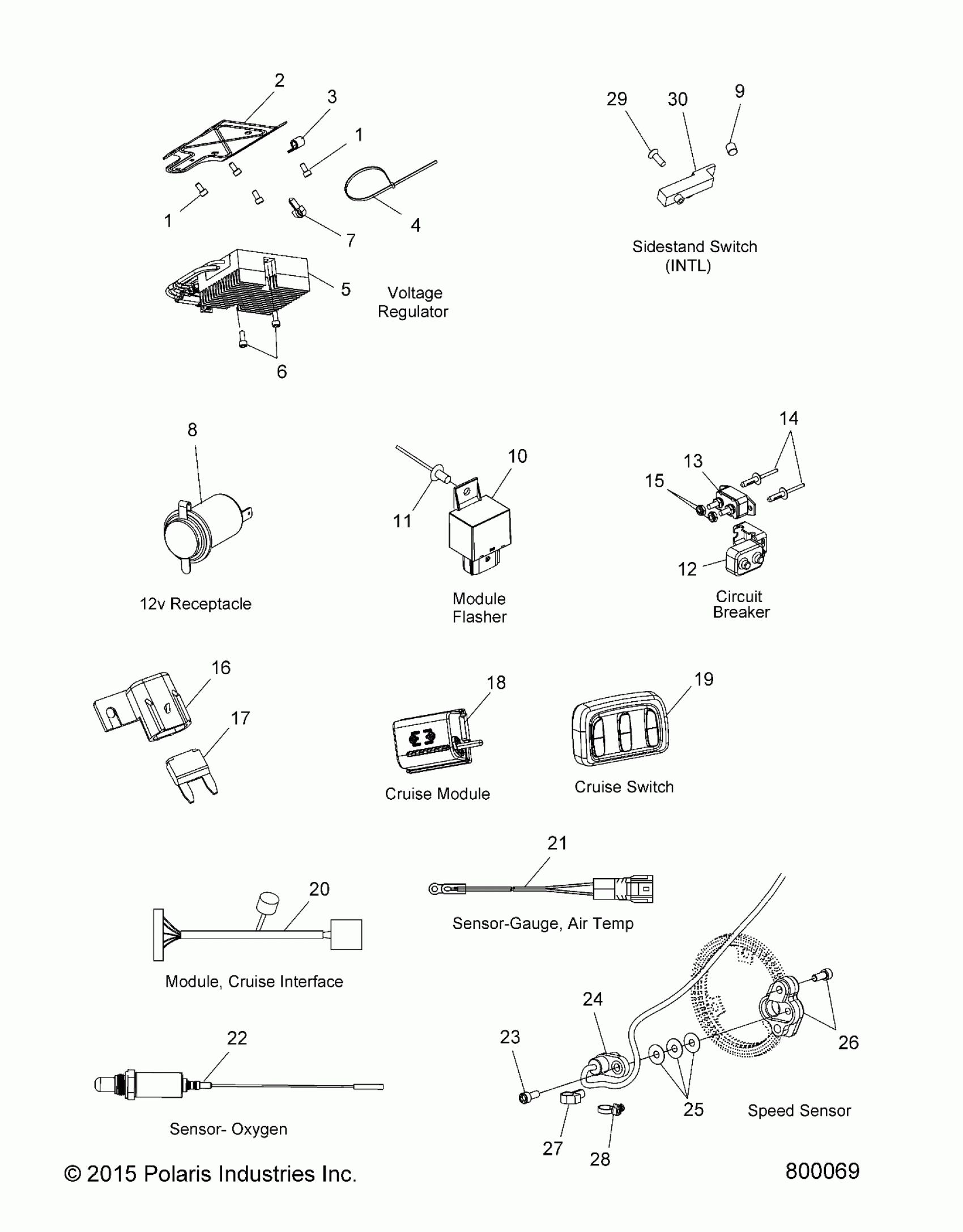

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V16YW36/UW36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 2 - V16YW36/UW36 ALL OPTIONS (800069) Diagram

#

Description
Price

1

Screw

7517739

$10.46

1

Screw

7517739

$10.46

2

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

$67.46

3

CLAMP-REAR BRAKE

7080983

$4.35

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

REGULATOR, VOLTAGE, BLACK

4012717

$344.99

6

SCREW

7517272

$7.84

7

Clip

7670102

$2.38

8

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

9

MAGNET, SIDE STAND [INTL.]

4013131

$7.27

10

MODULE, FLASHER, LED

4013199

Unavailable

11

RIVET

7081617

$5.56

12

BOOT

4010778

$5.65

13

BREAKER, CIRCUIT, 40A

2410332

$32.37

14

Rivet

7081040

$1.19

15

NUT

7541931

$5.99

16

COVER-FUSEHOLDER

4012260

$10.51

17

FUSE-MAIN,30 AMP

2434015

$8.87

18

MODULE, CRUISE

4012752

$454.99

19

SWITCH, CRUISE, HIGH CURRENT, BLACK

4013049

$234.99

20

MODULE, INTERFACE, FERITE

4013839

Unavailable

21

SENSOR, GAUGE, AIR TEMP

2410443

$68.79

22

SENSOR-LAMBDA,LSF 4.2

4011853

$140.38

23

SCREW

7517272

$7.84

24

SENSOR, WHEEL SPEED, ABS

4013251

$242.05

25

SHIM, SENSOR, ABS

5255106

Unavailable

26

SCREW [FRONT]

7517272

$7.84

26

MOUNT, SPEED SENSOR, ABS [FRONT]

5632575

$36.41

27

CLIP, SILENCER [FRONT]

7670102

$2.38

28

CABLE-TIE,DIA10-50MM,FIR-TREE [REAR]

7081334

$1.59

29

SCR-FLHD-M4X0.7X12MM,TORX [INTL.]

7519276

$4.76

30

SWITCH, SIDE STAND [INTL.]

4013130

$36.41
