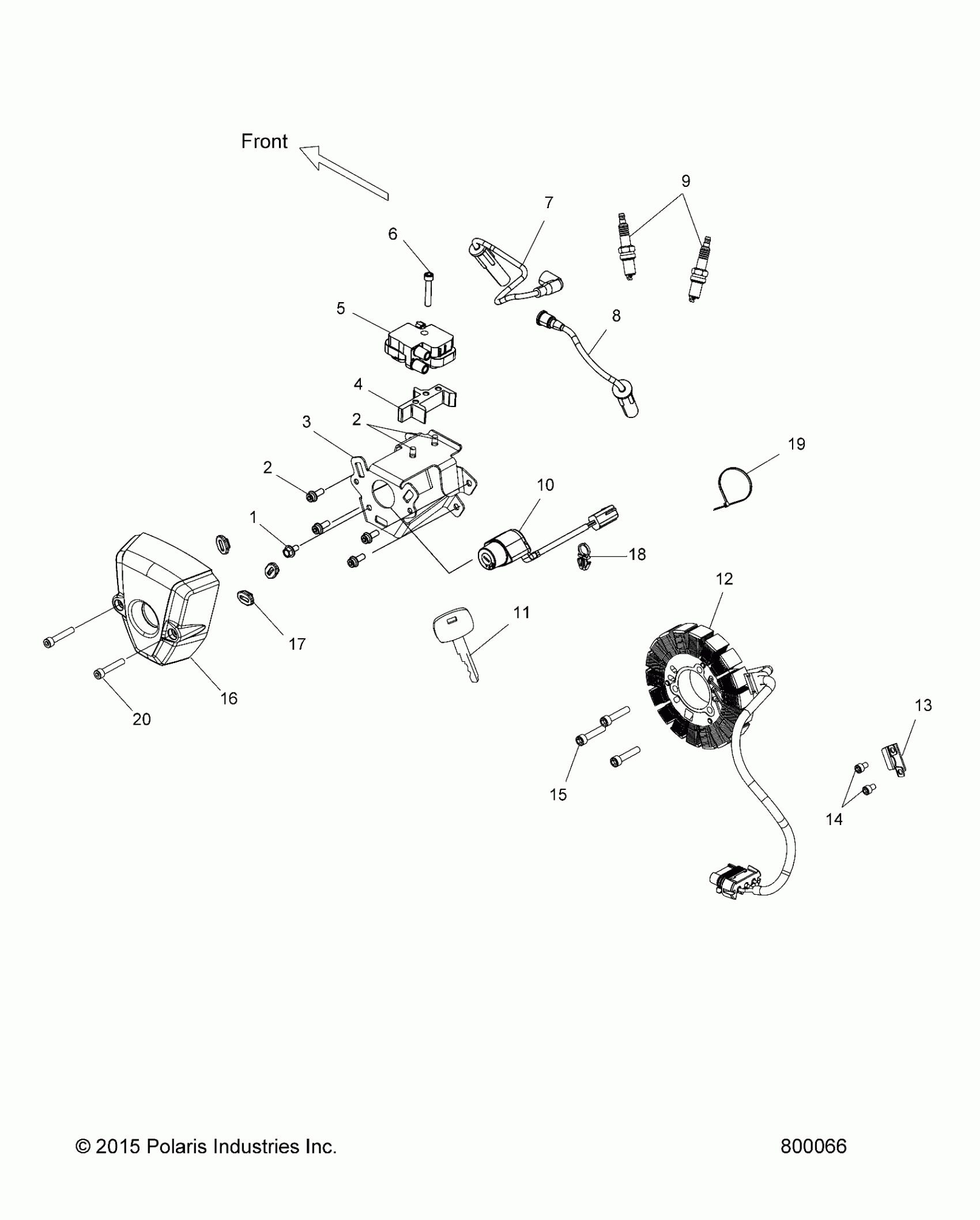

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V16YW36/UW36 ELECTRICAL, IGNITION SYSTEM - V16YW36/UW36 ALL OPTIONS (800066) Diagram

#

Description
Price

1

SCREW

7517704

$7.19

2

SCREW

7518803

$3.99

2

SCREW

7518803

$3.99

3

BRACKET, IGNITION COIL

5255393

Unavailable

4

SPACER, IGNITION COIL

5510601

Unavailable

5

COIL-EFI

4010425

Unavailable

6

SCREW

7517259

$5.59

7

LEAD, SPARK PLUG [FRONT CYLINDER]

4014932

Unavailable

8

LEAD, SPARK PLUG [REAR CYLINDER]

4014933

Unavailable

9

PLUG, SPARK, DCPR6E

3070202

Unavailable

10

ASM., IGNITION/FUEL/TRUNK/FRK/SB, BLACK

4012944-266

Unavailable

11

KEY, BLANK

4110239

Unavailable

12

STATOR, CHARGING, 20 MAG

4012715

Unavailable

13

CLIP, STATOR WIRE

5251115

Unavailable

14

SCREW

7517847

$3.19

15

SCREW

7517301

$2.39

16

COVER, IGNITION/COIL, LH, CHROME

5632602-156

Unavailable

16

COVER, IGNITION/COIL, LH, FLAT BLACK [X-1]

5632602-463

Unavailable

17

BUSHING, RECTANGULAR

5414353

Unavailable

18

CLIP, SNAP-IN

7080756

$4.79

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

SCREW

7519370

Unavailable
