- MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V16YW36/UW36
CHASSIS, FRAME ASM. - V16YW36/UW36 ALL OPTIONS (800064)

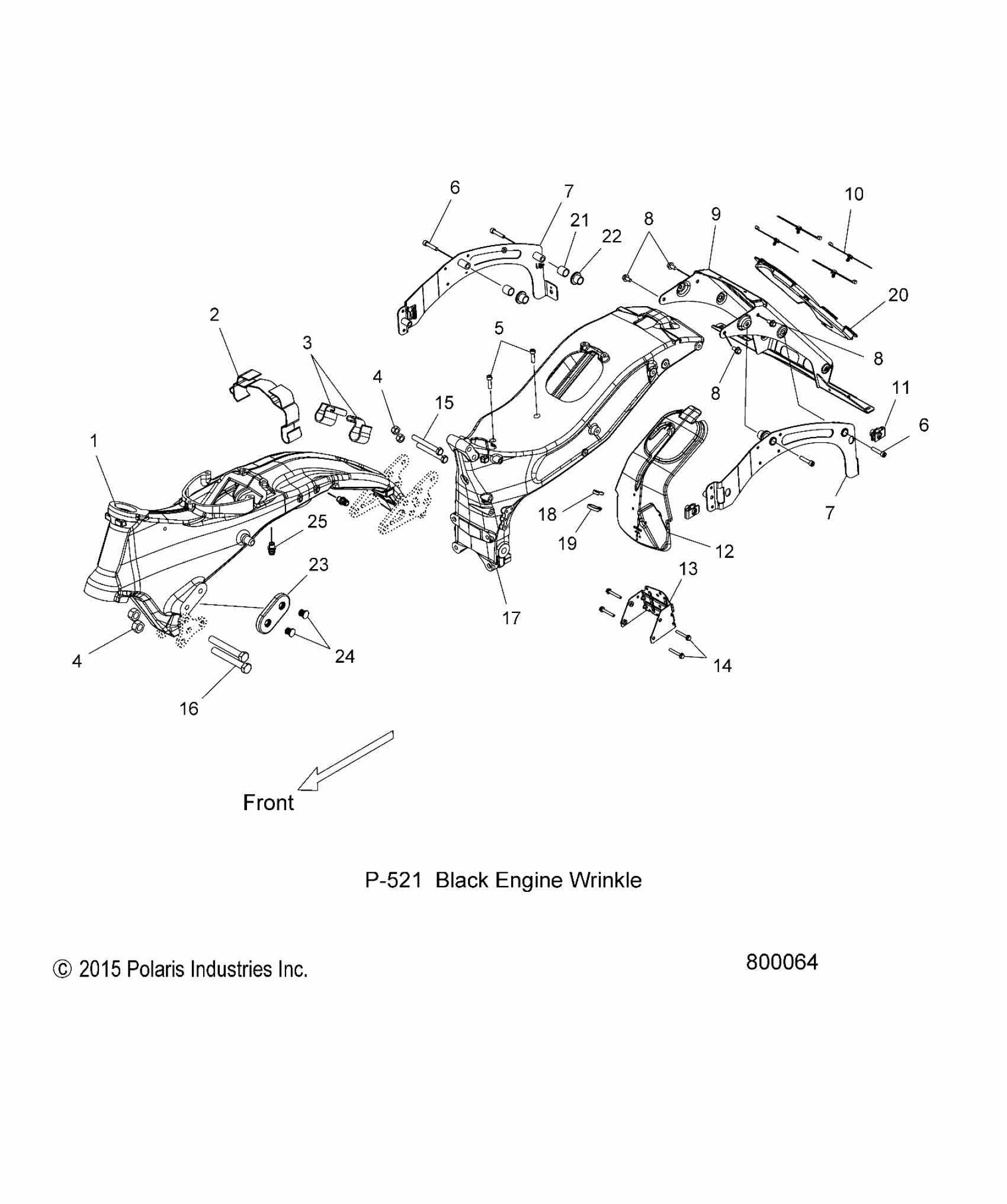

Polaris MAGNUM/MAGNUM X-1 ALL OPTIONS (R03) - V16YW36/UW36 CHASSIS, FRAME ASM. - V16YW36/UW36 ALL OPTIONS (800064) Diagram
#
Description
Price
1
ASM., AIRBOX, FRAME, SUB, BLACK [INCL. 25]
1016470-521
Unavailable
2
CLIP, AIRBOX LINES
5438092
Unavailable
3
CLIP, EXTRUDED, HARNESS
5521778
Unavailable
4
NUT
7547232
$23.99
4
NUT
7547232
$23.99
5
SCREW
7517361
$23.99
6
SCREW
7518178
Unavailable
6
SCREW
7518178
Unavailable
7
BRACKET, SB, RH
1017863
Unavailable
7
BRACKET, SB, LH
1017862
Unavailable
7
BRACKET, SB, RH
1017863
Unavailable
7
BRACKET, SB, LH
1017862
Unavailable
8
SCREW
7519005
$3.99
8
SCREW
7519005
$3.99
8
SCREW
7519005
$3.99
9
SUBSTRUCTURE, REAR, BLACK
1017822-329
Unavailable
10
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
11
NUT-U TYPE, M10, SHORT
7547748
$4.79
12
FLAP, DEBRIS
5813569
Unavailable
13
BRACKET, CRUISE CONTROL
1017358
Unavailable
14
Screw
7517950
$5.59
15
SCREW
7518125
$11.19
16
SCREW
7519028
$7.19
17
FRAME, MAIN, REAR, BLACK
5136323-521
Unavailable
18
Clip, Silencer
7670102
$2.39
19
CLIP
7081645
Unavailable
20
PANEL, SHIELD, DEBRIS
5438964
Unavailable
21
BUSHING
5438724
Unavailable
22
BUSHING, FLANGED
5438725
Unavailable
23
COVER, HWY BAR MOUNT
5414106
Unavailable
24
PLUG, NYLON
7670131
$4.84
25
FITTING
5135322
Unavailable
