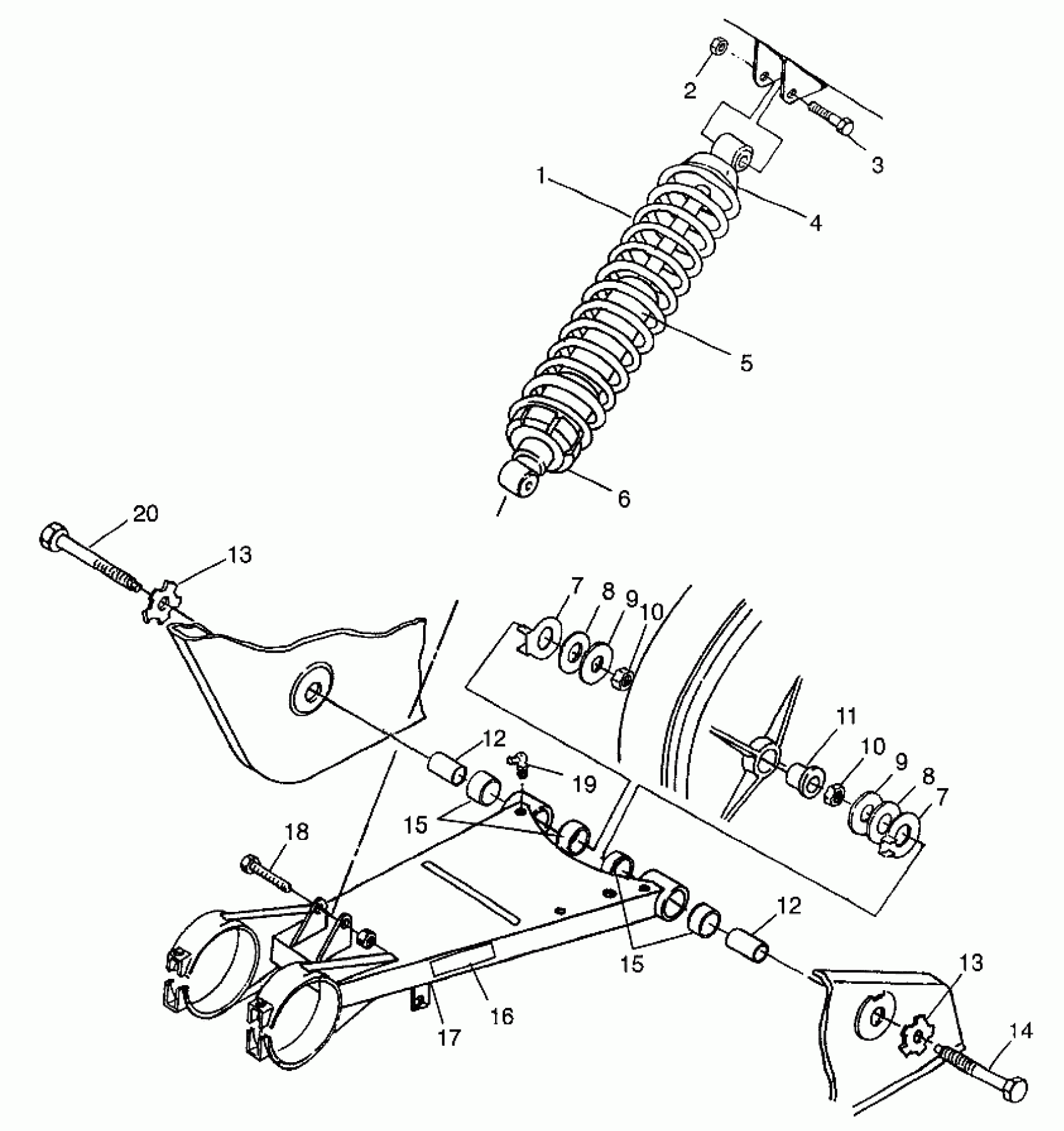

Polaris MAGNUM 6X6 - W97AE42A SWING ARM/SHOCK MOUNTING Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42 (4940754075C008) Diagram

#

Description
Price

1

SPRING,COMP,REAR,BLK.

7041305-067

Unavailable

2

NUT-LOCK(10)

7542439

$1.49

3

BOLT(10)

7515415

$1.49

4

RETAINER-TOP (Top)

5220225

$10.39

5

SHOCK

7041220

Unavailable

6

SPACER,SHOCK RETAINER(10)

5210953

$6.39

7

BUSHING

5240952

$34.99

7

BUSHING

5240952

$34.99

8

BUSHING Substituted by 5433414

5431977

Unavailable

8

BUSHING Substituted by 5433414

5431977

Unavailable

9

WASHER(10)

7555911

$4.79

9

WASHER(10)

7555911

$4.79

10

NUT, LOCK(10)

7542602

Unavailable

10

NUT, LOCK(10)

7542602

Unavailable

11

Bushing, Pivot (See Pg. A48, Ref. 4)

-------

Unavailable

12

BUSHING,SWING ARM

5020793

$8.79

12

BUSHING,SWING ARM

5020793

$8.79

13

PLATE,BOLT LOCK

5220958

$35.99

13

PLATE,BOLT LOCK

5220958

$35.99

14

BOLT, SHOULDER

7512703

Unavailable

15

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

15

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

16

DECAL,CHAIN TENSION Substituted by 7074752

7074177

Unavailable

17

ARM ASM,SWING

1580091

$354.99

18

BOLT(10)

7515438

$4.79

19

FITTING, LUBE. (45

7080438

$10.39

20

BOLT, SHOULDER

7512702

Unavailable
