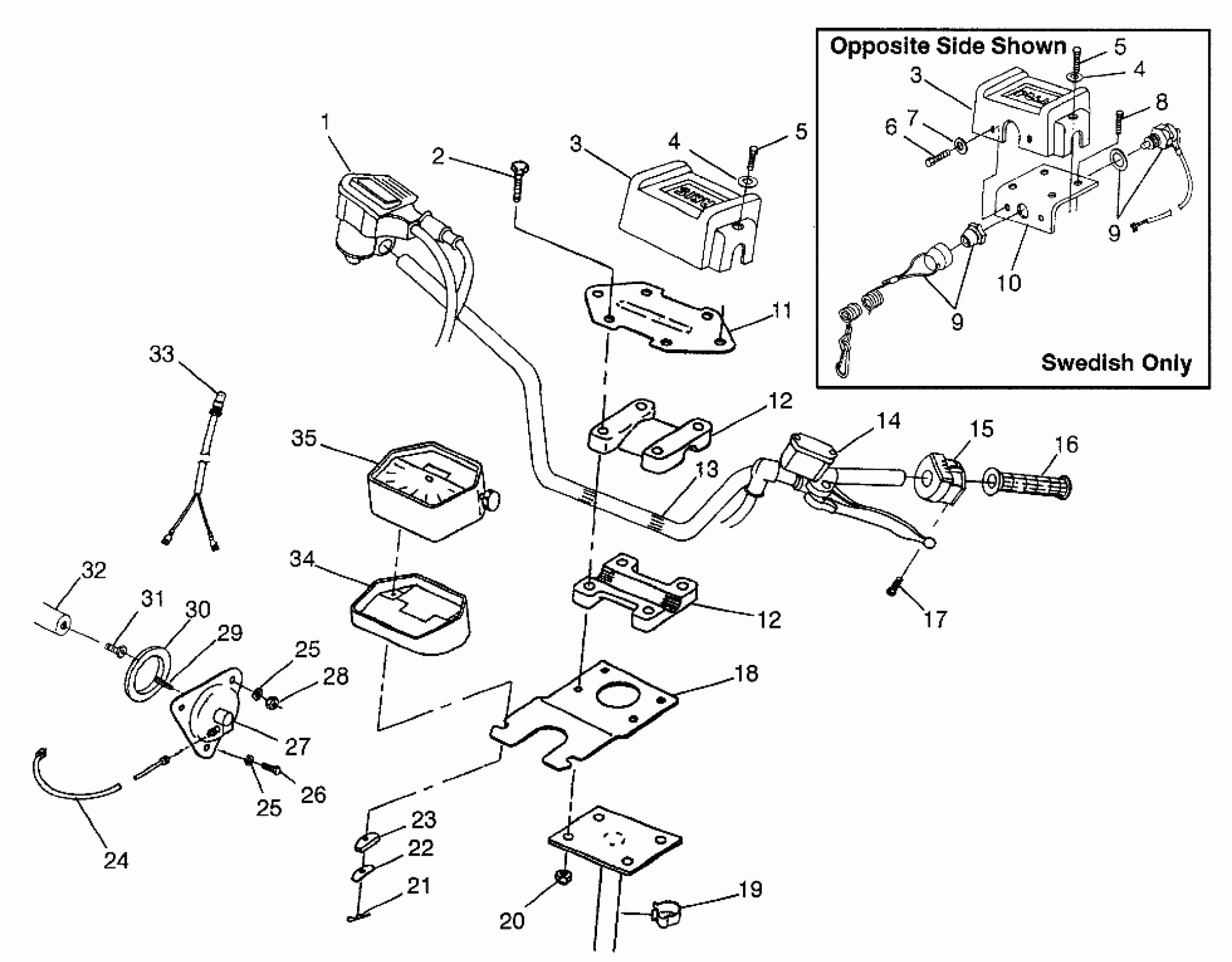

Polaris MAGNUM 6X6 - W97AE42A STEERING - HANDLEBAR Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075B010) Diagram

#

Description
Price

1

Asm., Throttle Control (See Pg. A30, Ref. 5)

----

Unavailable

2

SCREW(10)

7515188

$2.38

3

PAD, HANDLEBAR (US)

5810379

$40.46

3

PAD,H'BAR,SCAN (SWED)

5811366

$40.46

3

PAD, HANDLEBAR (US)

5810379

$40.46

3

PAD,H'BAR,SCAN (SWED)

5811366

$40.46

4

Washer

7556033

$4.76

4

Washer

7556033

$4.76

5

SCREW Substituted by 7515197 (US)

7517395

$1.19

5

BOLT(10) Substituted by 7515197 (SWED)

7512286

$1.19

5

SCREW Substituted by 7515197 (US)

7517395

$1.19

5

BOLT(10) Substituted by 7515197 (SWED)

7512286

$1.19

6

SCR-#8X.625,SELF TAP-PH/PN-ZTB (SWED)

7511881

$1.19

7

WASHER(10) (SWED)

7555783

$3.97

8

SCREW Substituted by 7517216 (SWED)

7517225

Unavailable

9

SW,TETHER,(SWED.MAG) (SWED)

4110249

Unavailable

9

SW,TETHER,(SWED.MAG) (SWED)

4110249

Unavailable

10

BRKT,TETH.SWITCH,BLK (SWED)

5241774-067

$5.71

11

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

12

KIT,H'BAR BLOCK (Incl. 2, 12, 20)

2200774

Unavailable

12

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

12

KIT,H'BAR BLOCK (Incl. 2, 12, 20)

2200774

Unavailable

12

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

13

TUBE,H'BAR,BLK Substituted by 5243138-067

5224586-067

Unavailable

14

Asm., Master Cylinder (See Pg. A28 for Details)

----

Unavailable

15

SWITCH,LH,H'BAR,H/L/O

4110205

Unavailable

16

GRIP, HANDLEBAR

5431030

$28.32

17

SCREW

2010055

Unavailable

18

BRACKET,SPEEDO

5222269-067

$15.56

19

CLIP(10)

7080278

$2.62

20

NUT(10)

7542124

$1.19

21

HAIRPIN, COTTER(10)

7660701

$1.98

22

PLATE,MTG,(SPEEDO)

5211189

$12.99

23

SPACER,SPEEDO.MTG.

5810442

Unavailable

24

CABLE,SPEEDO.

3280216

Unavailable

25

WASHER(10)

7555725

Unavailable

25

WASHER(10)

7555725

Unavailable

26

BOLT(10)

7515378

$1.37

27

ADAPTER,DRIVE,(1:1.34)

3280220

Unavailable

28

NUT-5/16-18 NYLOK-Y

7542324

$0.79

29

KEY,SPEEDO.DRIVE

3280217

Unavailable

30

SEAL,ANGLE DRIVE

3280164

Unavailable

31

BUSHING,SPEEDO.DRIVE

5020741

$8.97

32

Shaft, Output (See Pg. A48, Ref. 55)

----

Unavailable

33

BULB TAILLIGHT(10)

4030015

$4.03

34

MOUNT, SPEEDOMETER

5410546

Unavailable

35

SPEEDOMETER, ATV (US)

3280129

Unavailable

35

SPEEDO.(KPH),SCAND.ATV (SWED)

3280135

$90.74
