Description

Price

1

BOLT, BLACK(10)

7512282

$1.49

2

CABLE, TAILGATE

7080496

Unavailable

3

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

4

NUT-LOCK(10)

7542122

$1.49

4

NUT-LOCK(10)

7542122

$1.49

4

NUT-LOCK(10)

7542122

$1.49

4

NUT-LOCK(10)

7542122

$1.49

4

NUT-LOCK(10)

7542122

$1.49

5

TAILGATE,E.B.GR. (Green)

1040283-195

Unavailable

6

WASHER, SPRING(10) Substituted by 7555828

7555824

Unavailable

7

ROD,TOP PIVOT Substituted by 5020833

5020839

Unavailable

8

HANDLE, TAILGATE

5431524

Unavailable

9

SPRING,COMP,T'GATE LATCH

7041302

$4.79

10

PAD,RACK MOUNT

5810455

$3.19

11

PANEL,LH,SIDE (Green)

1040455-195

Unavailable

12

BOLT(10) Substituted by 7512240

7512111

Unavailable

13

WASHER(10)

7558301

$1.49

13

WASHER(10)

7558301

$1.49

13

WASHER(10)

7558301

$1.49

14

SCREW(10)

7512208

$3.99

14

SCREW(10)

7512208

$3.99

15

COVER,BACKREST,STL.GRY. (Gray)

2681664-132

Unavailable

15

BACKREST ASM,GRAY (Gray) (Incl. Cover)

2682346-132

Unavailable

16

HANDLE,GRAB,E.B.GREEN

7030011-195

$17.30

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

19

LATCH,BOX,E.B.GR. (Green)

1040192-195

Unavailable

20

Decal - Rider Warning (See Pg. A9. Ref.9)

-------

Unavailable

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

REFLECTOR ASM,RED

2670133

$5.75

23

WASHER(10) Substituted by 7558301

7555776

Unavailable

24

NUT HEX-LOCK(10)

7542101

$3.99

25

SCREW(10)

7515314

Unavailable

26

ROD, PIVOT

5020662

$17.59

27

SCREW

7517242

$3.83

28

BRACKET,T/L MOUNT

5240244-067

Unavailable

29

BED,WELD,E.B.GR. (Green)

1040280-195

Unavailable

30

NUT HEX(10)

7542105

$3.99

31

U-BOLT(10)

7515137

Unavailable

32

BOLT(10)

7512130

$3.99

33

SCREW(10)

7512113

$3.99

34

PANEL,RH,SIDE,E.B.GREEN (Green)

1040456-195

Unavailable

35

SPACER

5333170

Unavailable

36

BOLT(10)

7512392

$4.79

37

SHOCK, DUMPBOX

7041301

$59.99

38

BOLT(10) Substituted by 7515352

7515306

Unavailable

39

NUT,FLANGE LOCK(10)

7542449

$3.99

40

SCREW(10)

7512492

$1.49

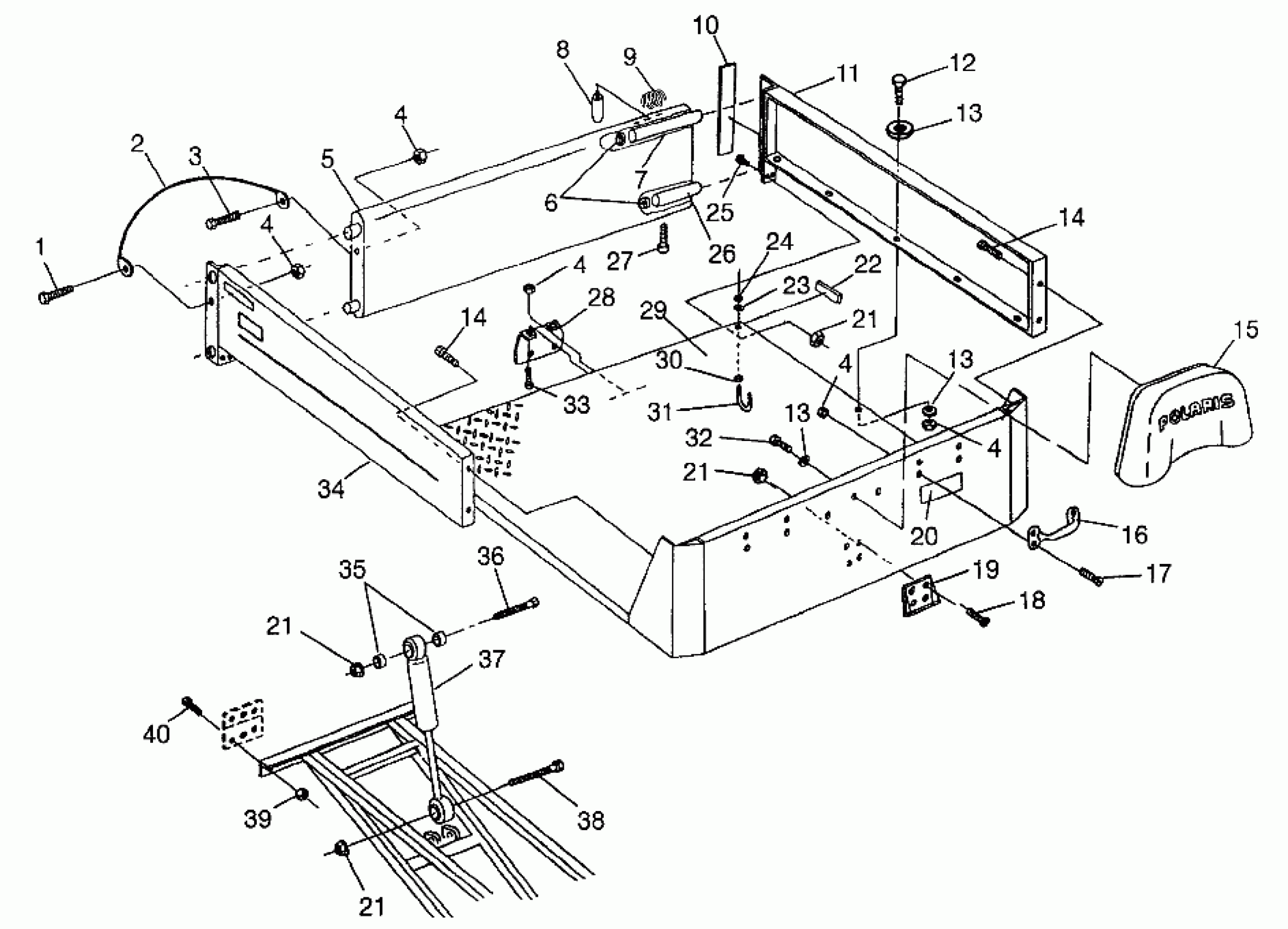

Polaris MAGNUM 6X6 - W97AE42A REAR BED MOUNTING - W97AE42A (4940754075A008) Diagram

BOLT, BLACK(10)

CABLE, TAILGATE

BOLT ,(10) Substituted by 7517377

NUT-LOCK(10)

NUT-LOCK(10)

NUT-LOCK(10)

NUT-LOCK(10)

NUT-LOCK(10)

TAILGATE,E.B.GR. (Green)

WASHER, SPRING(10) Substituted by 7555828

ROD,TOP PIVOT Substituted by 5020833

HANDLE, TAILGATE

SPRING,COMP,T'GATE LATCH

PAD,RACK MOUNT

PANEL,LH,SIDE (Green)

BOLT(10) Substituted by 7512240

WASHER(10)

WASHER(10)

WASHER(10)

SCREW(10)

SCREW(10)

COVER,BACKREST,STL.GRY. (Gray)

BACKREST ASM,GRAY (Gray) (Incl. Cover)

HANDLE,GRAB,E.B.GREEN

SCR-1/4-20X5/8 FL HX SOC CP-Y

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

LATCH,BOX,E.B.GR. (Green)

Decal - Rider Warning (See Pg. A9. Ref.9)

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

REFLECTOR ASM,RED

WASHER(10) Substituted by 7558301

NUT HEX-LOCK(10)

SCREW(10)

ROD, PIVOT

SCREW

BRACKET,T/L MOUNT

BED,WELD,E.B.GR. (Green)

NUT HEX(10)

U-BOLT(10)

BOLT(10)

SCREW(10)

PANEL,RH,SIDE,E.B.GREEN (Green)

SPACER

BOLT(10)

SHOCK, DUMPBOX

BOLT(10) Substituted by 7515352

NUT,FLANGE LOCK(10)

SCREW(10)
