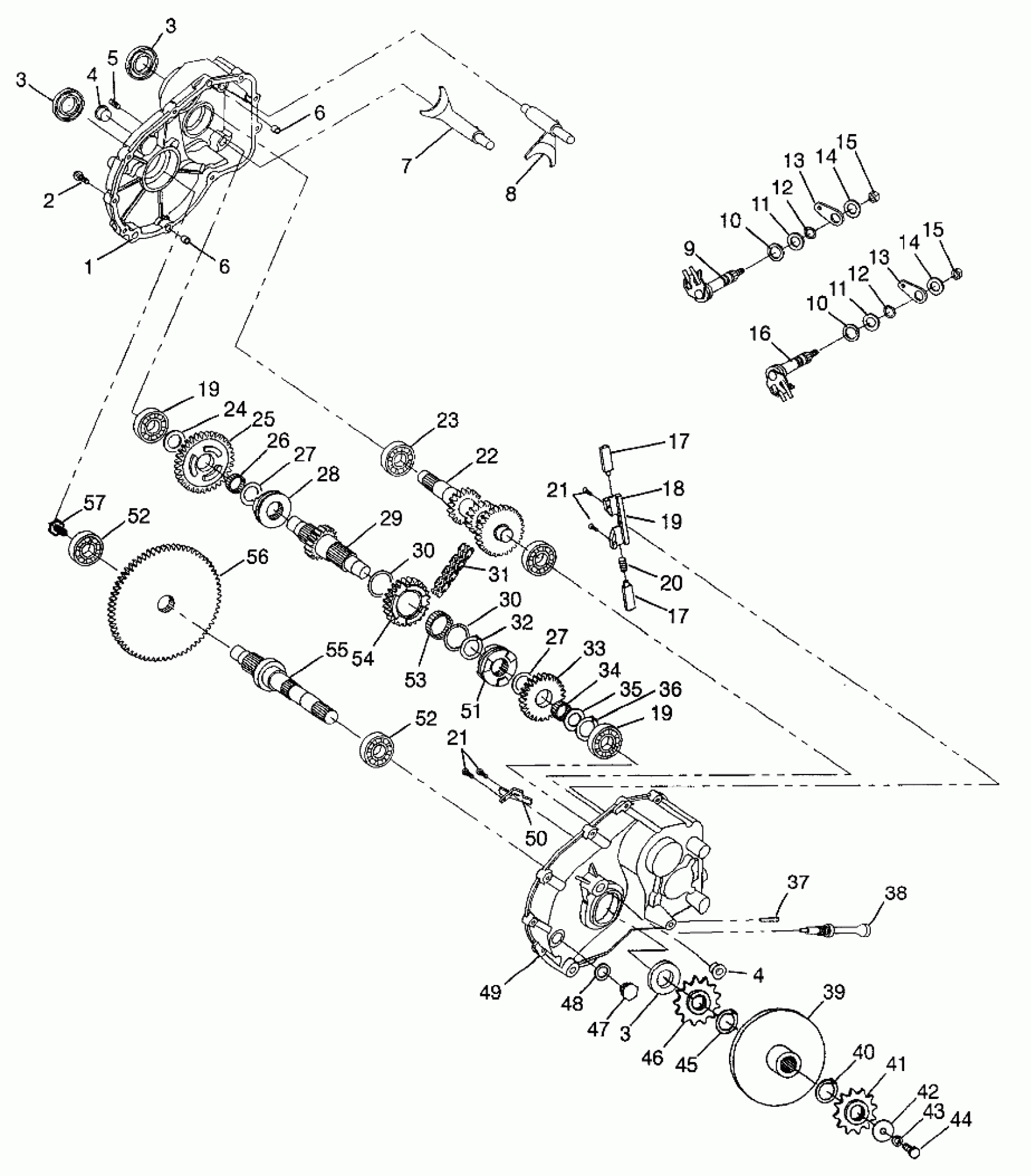

Polaris MAGNUM 6X6 - W97AE42A GEARCASE Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075D005) Diagram

#

Description
Price

-

GEARCASE ASM,MAGNUM 4WD,HCR (Incl. 1-38, 47-57)

1341184

Unavailable

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

7

SHIFTRAIL,LOW

3233022

Unavailable

8

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

9

SHAFT,LOW SHIFT

3233151

$51.59

10

O-RING Substituted by 3233548

3233044

Unavailable

10

O-RING Substituted by 3233548

3233044

Unavailable

11

Washer

3233040

$9.59

11

Washer

3233040

$9.59

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

Bellcrank

3233153

$27.99

13

Bellcrank

3233153

$27.99

14

Washer

3233054

$6.46

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

15

Nut

3233055

Unavailable

16

SHAFT,HIGH/REV.SHIFT

3233152

Unavailable

17

PIN

3233031

$32.11

17

PIN

3233031

$32.11

18

BRACKET

3233030

$21.43

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

Spring

3233032

$12.94

21

SCREW Substituted by 3233747

3233033

Unavailable

21

SCREW Substituted by 3233747

3233033

Unavailable

22

SHAFT,INPUT,31T,HCR

3233361

Unavailable

23

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

24

WASHER

3233007

Unavailable

25

GEAR, 33T

3233125

Unavailable

26

BEARING,NEEDLE

3233009

$39.99

27

Washer

3233010

Unavailable

27

Washer

3233010

Unavailable

28

DOG,ENGAGEMENT,LOW

3233126

Unavailable

29

SHAFT,REV,29T,HCR

3233362

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

CHAIN,SILENT,34P (11W)

3233036

Unavailable

32

RING,RETAINING

3233029

$5.59

33

GEAR,30T,HCR

3233359

Unavailable

34

BEARING,NEEDLE

3233017

$35.99

35

Washer

3233176

$9.59

36

RING,RETAINING

3233177

$6.39

37

Vent

3233037

Unavailable

38

DIPSTICK Substituted by 3233478

3233115

$24.27

39

Disc, Brake (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

40

Ring, Retaining (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

41

Sprocket, 11T (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

42

Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

44

Screw (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

46

Sprocket, 13T (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

47

Plug

3233448

$23.99

48

Washer

3233035

Unavailable

49

CASE, RH

3233003

Unavailable

50

DEFLECTOR,OIL

3233043

$13.19

51

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

52

BEARING

3233020

$47.99

52

BEARING

3233020

$47.99

53

BEARING, NEEDLE

3233014

$43.99

54

SPROCKET, 24T

3233127

Unavailable

55

SHAFT,OUTPUT

3233150

Unavailable

56

GEAR,O/P,100T,HCR

3233360

Unavailable

57

BUSHING,SPEEDO.DRIVE

5020741

$9.03
