GEARCASE/BRAKE and CHAIN COVER MOUNTING Magnum 6X6 W97AE42A and Swedish Mag (4940754075C014)

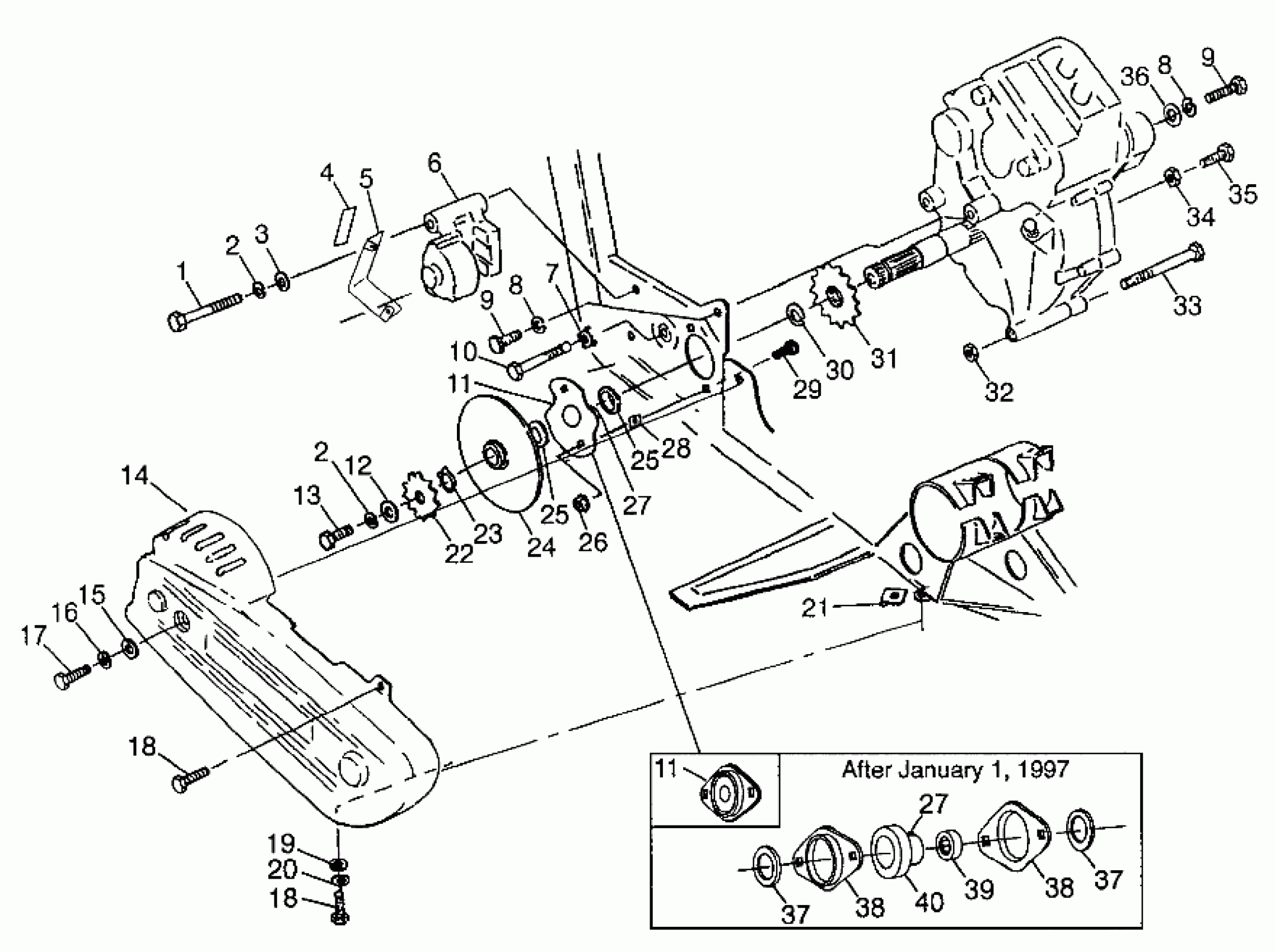

Polaris MAGNUM 6X6 - W97AE42A GEARCASE/BRAKE and CHAIN COVER MOUNTING Magnum 6X6 W97AE42A and Swedish Mag (4940754075C014) Diagram
#
1
BOLT(10)
7515345
$5.59
2
LOCK WASHER(10)
7552901
$1.49
2
LOCK WASHER(10)
7552901
$1.49
3
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
4
DECAL,BRAKE SHIELD
7075339
Unavailable
5
SHIELD,R.CALIPER,BLK.
5241018-067
Unavailable
6
CALIPER ASM,BRAKE
1910125
Unavailable
7
Plate, Bolt Lock (See Pg. A37, Ref. 13)
-------
Unavailable
8
WASHER(10)
7552603
$1.49
8
WASHER(10)
7552603
$1.49
9
BOLT(10)
7515522
$3.99
9
BOLT(10)
7515522
$3.99
10
Bolt, Shoulder (See Pg. A37, Ref. 14)
-------
Unavailable
11
BRG.ASM,O/P SHAFT (Incl. 28) (Before Jan. 1, 1997)
1590237
$84.99
11
SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)
1590265
Unavailable
11
BRG.ASM,O/P SHAFT (Incl. 28) (Before Jan. 1, 1997)
1590237
$84.99
11
SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)
1590265
Unavailable
12
WASHER FLAT(10)
7555701
$3.99
13
BOLT(10)
7515321
$1.49
14
GUARD,CHAIN,CTR.
5431717
Unavailable
15
WASHER(10) Substituted by 7558402
7555770
Unavailable
16
WASHER(10)
7552606
$4.79
17
BOLT(10)
7515346
$5.59
18
BOLT(10)
7512269
Unavailable
18
BOLT(10)
7512269
Unavailable
19
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
20
WASHER(10)
7552605
$5.27
21
NUT, SPEED(10)
7670060
$3.99
22
SPKT, 11T
3221058
$74.99
23
RING,RETAINING(10)
7710433
$4.79
24
DISC ASM,BRAKE
1910177
Unavailable
25
SEAL, BRAKE (Only w/PN 1590237)
3610026
$7.99
25
SEAL, BRAKE (Only w/PN 1590237)
3610026
$7.99
26
NUT,FLANGE LOCK(10)
7542449
$3.99
27
FITTING,LUBE.W/BALL CK.(10) (Only w/PN 1590237)
7080306
$3.19
27
FITTING,LUBE,45 DEG.(10) (Only w/PN 1590265)
7080586
Unavailable
27
FITTING,LUBE.W/BALL CK.(10) (Only w/PN 1590237)
7080306
$3.19
27
FITTING,LUBE,45 DEG.(10) (Only w/PN 1590265)
7080586
Unavailable
28
SPACER,(10) (.020)
5210764
Unavailable
28
SHIM,.010,GEARCASE (.010)
5211065
Unavailable
28
SHIM,(.030) (.030) Note: Use shims only with Output Shaft Bearing PN 1590237
5211517
Unavailable
29
BOLT,CARRIAGE(10)
7515484
Unavailable
30
RING,SNAP(10)
7710434
$3.99
31
SPKT,13T,SPLINED
3221041
$43.99
32
NUT LOCK(10)
7542403
$3.99
33
BOLT(10)
7515472
$2.39
34
NUT(10)
7542404
$1.59
35
BOLT(10)
7515485
$3.03
36
WASHER(10) Substituted by 7555806
7555720
$0.79
37
SEAL,BRAKE
3610062
$9.70
37
SEAL,BRAKE
3610062
$9.70
38
FLANGETTE,O/P SHAFT BRNG.
5242072
Unavailable
38
FLANGETTE,O/P SHAFT BRNG.
5242072
Unavailable
39
BEARING,NEEDLE
3554202
Unavailable
40
HSG,BRNG,O/P SHAFT
5131643
Unavailable
