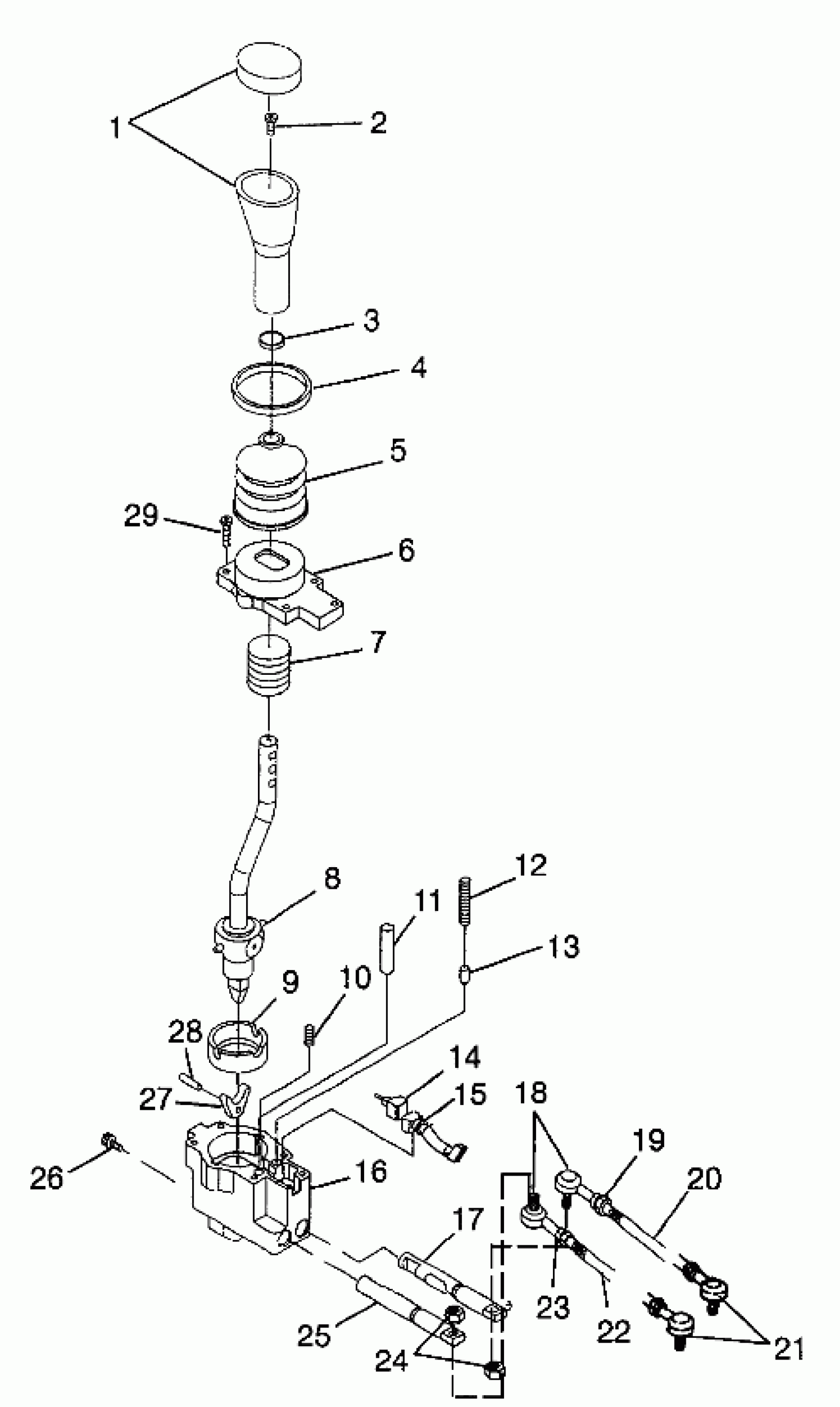

Polaris MAGNUM 6X6 - W97AE42A GEAR SELECTOR Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075D007) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,CON,MAG (Incl. 1-17, 25-29)

1341219

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

COVER,GEAR SELECTOR

3233213

Unavailable

7

SPRING,HOLDING

3233158

Unavailable

8

HANDLE SUBASM,(GS MAGNUM)

3233227

Unavailable

9

CUP,BEARING

3233063

$15.99

10

SPRING,CENTERING

3233083

Unavailable

11

PIN, STOP

3233062

Unavailable

12

SPRING,DETENT

3233069

Unavailable

13

BULLET,DETENT

3233060

$64.99

14

SW,GEARSELECT,W/THRM.JKT.

3233455

Unavailable

15

STRAP, WIRE

3233090

$2.86

16

BODY,GEAR SELECTOR

3233216

Unavailable

17

SLIDE ASM,HIGH/REV

3233217

Unavailable

18

ROD END,RH,6MM.

7061014

$65.99

19

NUT(10)

7546702

$1.49

20

SHIFT,ROD,LINKAGE,HIGH RANGE

5020703

Unavailable

21

ROD END,LH,6MM.

7061013

$65.99

22

SHIFT,ROD,LINKAGE,LOW RANGE

5020702

Unavailable

23

NUT(10)

7546701

$3.99

24

NUT(10) Substituted by 7546703

7546707

Unavailable

25

SLIDE ASM,LOW

3233218

Unavailable

26

SCREW(10)

7515181

$2.39

27

INTERLOCK,BUTTERFLY

3233084

Unavailable

28

PIN,INTERLOCK

3233070

Unavailable

29

SCREW Substituted by 3233498

3233085

Unavailable
