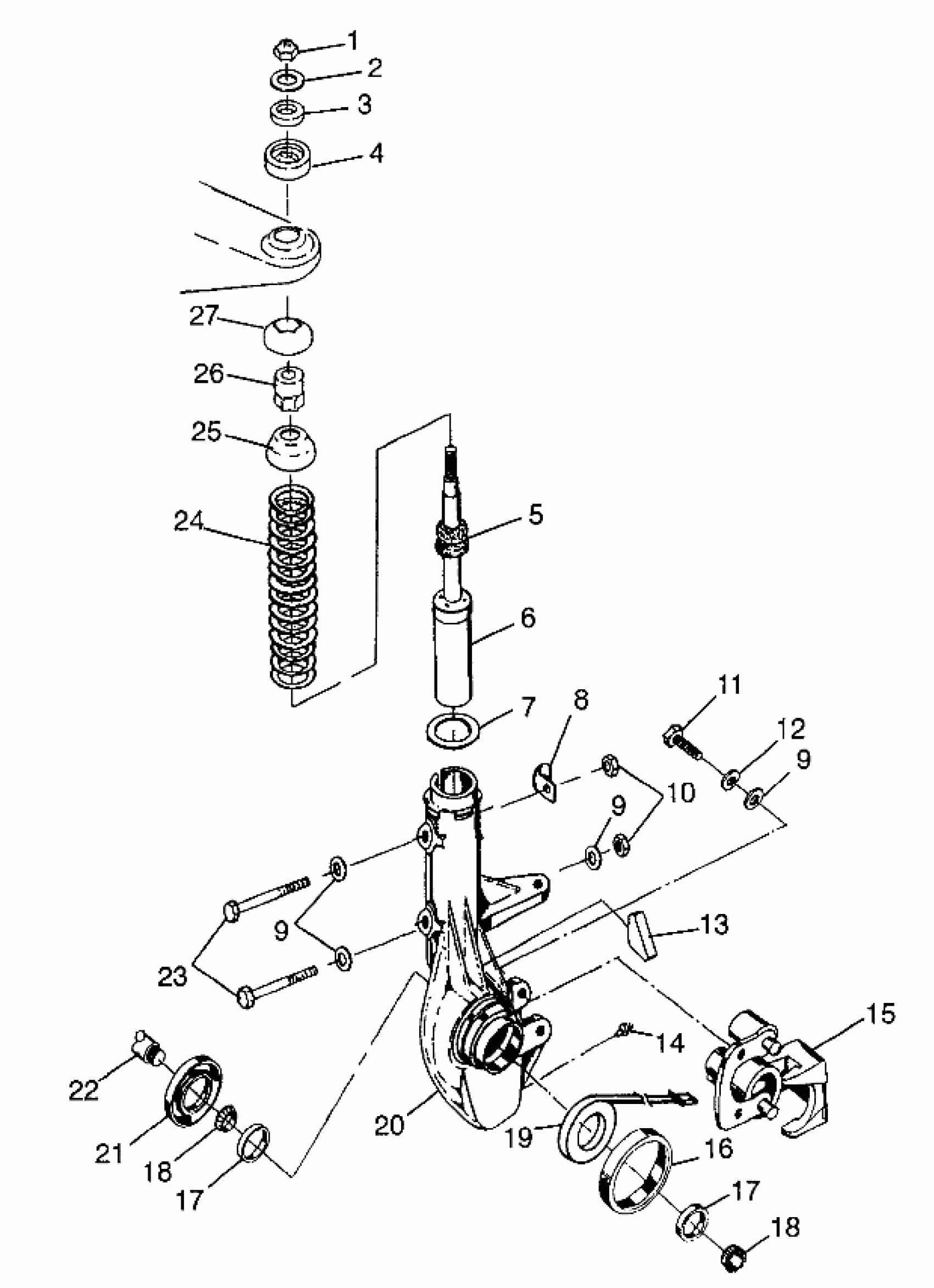

Polaris MAGNUM 6X6 - W97AE42A FRONT STRUT Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075B007) Diagram

#

Description
Price

1

NUT,FLEX LOC(10)

7542507

Unavailable

2

WASHER(10)

7555749

$1.19

3

SPACER-RUBBER

5810291

$3.97

4

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

5

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

6

STRUT,FRONT,32MM. Substituted by 7041755

7041374

$168.87

7

WASHER-2.06X2.62X.105-Y

5211115

$3.97

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.14

9

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

9

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

9

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

NUT FLEX-LOC(10)

7542303

$6.35

11

SCREW, CAP(10)

7512365

$1.19

12

LOCK WASHER(10)

7552901

$1.19

13

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

14

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

15

Asm., Front Brake Caliper, RH (See Pg.)

----

Unavailable

16

SLEEVE,STRUT HUB SEAL

5222193

$64.75

17

BRG,TAPER,ROLL CUP

3554507

$31.75

17

BRG,TAPER,ROLL CUP

3554507

$31.75

18

BEARING,TAPERED ROLLER

3554509

$23.81

18

BEARING,TAPERED ROLLER

3554509

$23.81

19

COIL,MAGNET.HVY,W/PLUG-IN Substituted by 2201313

4170010

$129.51

20

HUBSTRUT ASM,LH (32mm), Heavy (Incl. 13, 14, 17, 19, 21)

2200975

Unavailable

20

HUBSTRUT ASM,RH (32mm), Heavy (Incl. 13, 14, 17, 19, 21)

2200976

Unavailable

21

SEAL, HUB STRUT

3610028

$32.37

22

Asm., Drive Shaft w/Sleeve (See Pg., Ref.)

----

Unavailable

23

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

24

SPRING,COIL(STRUT),BLK.

7041450-067

Unavailable

25

RETAINER,SPRING,TOP

5220602

Unavailable

26

SPACER,THREADED

5130668

$27.78

27

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51
