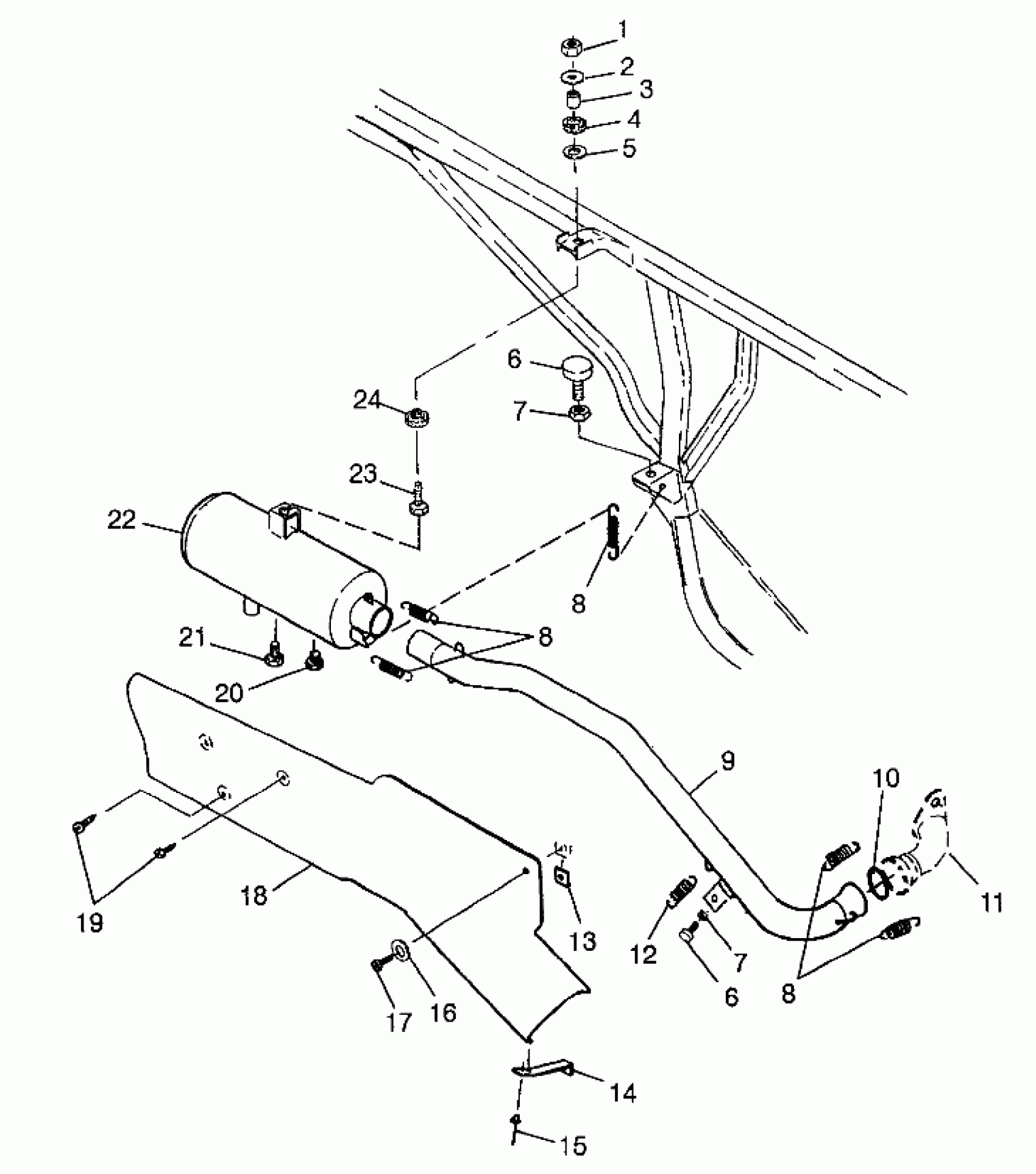

Polaris MAGNUM 6X6 - W97AE42A EXHAUST SYSTEM - W97AE42A (4940754075A013) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

WASHER,RUBBER

5410436

$1.59

5

BUSHING(10)

7555781

Unavailable

6

MOUNT,TORQUE-STOP

3110064

Unavailable

6

MOUNT,TORQUE-STOP

3110064

Unavailable

7

NUT HEX(10)

7542301

$1.59

7

NUT HEX(10)

7542301

$1.59

8

SPRING, EXHAUST(10)

7042031

$5.65

8

SPRING, EXHAUST(10)

7042031

$5.65

8

SPRING, EXHAUST(10)

7042031

$5.65

9

HEADPIPE WELD,BLK. Substituted by 1260856-029

1260630-029

Unavailable

10

SEAL-EXHAUST

5240898

$15.99

11

Manifold, Blk (See Pg. A12, Ref. 40)

-------

Unavailable

12

SPRING-EXHAUST(10)

7042029

$4.84

13

NUT, SPEED(10)

7670060

$3.99

14

BRKT,BLK,HEATSHIELD

5240179-067

Unavailable

15

RIVET(50)

7621462

$1.49

16

WASHER(10) Substituted by 7558301

7555776

Unavailable

17

BOLT, BLACK(10)

7512282

$1.49

18

HEATSHIELD ASM. (Incl. Foil)

1260717

Unavailable

19

SCREW(10)

7515140

$3.19

20

PLUG, CLEANOUT

7052083

$15.87

21

BOLT(10)

7512666

$2.39

22

EXHAUST,BLK

1260742-029

Unavailable

23

BOLT,CARRIAGE(10)

7515383

Unavailable

24

DAMPENER

5410241

Unavailable
