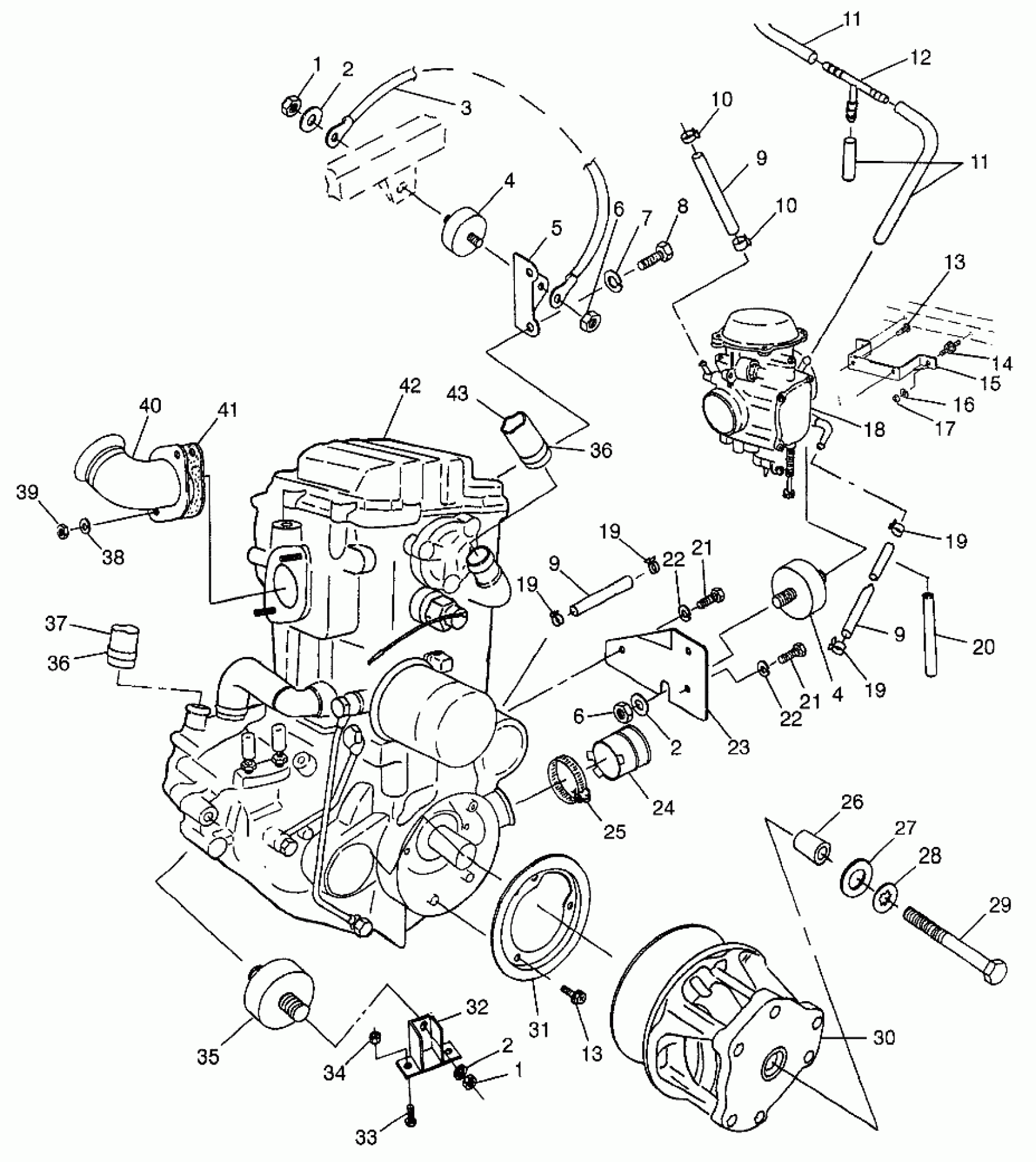

Polaris MAGNUM 6X6 - W97AE42A ENGINE MOUNTING - W97AE42A (4940754075A011) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

3

CABLE,GND-ENGINE

4010132

Unavailable

4

MOUNT,RUBBER,TOP

3110044

Unavailable

4

MOUNT,RUBBER,TOP

3110044

Unavailable

5

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

9

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

9

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

10

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

Screw and Washer (See Pg. D8, Ref. 6)

-------

Unavailable

13

Screw and Washer (See Pg. D8, Ref. 6)

-------

Unavailable

14

MOUNT,CARB.

3110050

$12.99

15

BRKT, CARB.MT.

5240609-067

Unavailable

16

WASHER(10)

7552605

$5.27

17

NUT HEX(10)

7542105

$3.99

18

Asm., Carburetor (See Pg. D14, Ref. 46)

-------

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

21

SCREW(10)

7512490

$3.99

21

SCREW(10)

7512490

$3.99

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

22

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

23

MOUNT,R.ENG,BLK

5241921-067

$10.71

24

BOOT,CLUTCH INTAKE

5410421

$11.19

25

CLAMP, NARROW BAND(10)

7080511

$4.79

26

BUSHING-.437 X.770 X.50

5430261

$7.19

27

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

BOLT(10)

7512566

$30.79

30

Asm., Drive Clutch (See Pg. C10 For Details)

-------

Unavailable

31

Bracket, Retainer Seal, (See Pg. C12, Ref. 19)

-------

Unavailable

32

MOUNT,ENG,BLK

1040534-067

$13.99

33

BOLT(10)

7515321

$1.49

34

NUT FLEX-LOC(10)

7542303

$6.39

35

MOUNT,RUBBER,FRONT

3110046

Unavailable

36

CLAMP,HOSE,(10)

7080614

$7.19

36

CLAMP,HOSE,(10)

7080614

$7.19

37

Hose, Water (See Pg. A10, Ref. 35)

-------

Unavailable

38

Washer, Lock (See Pg. D9, Ref. 22)

-------

Unavailable

39

Nut (See Pg. D9, Ref. 23)

-------

Unavailable

40

MANIFOLD,BLK

1260832-029

Unavailable

41

Gasket, Exhaust (See Pg. D9, Ref. 33)

-------

Unavailable

42

ENG.(S.B.)EH42PLE-01 [No Longer Available] (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior

3085555

Unavailable

43

Hose, Chafe Protected (See Pg. A10, Ref. 2)

-------

Unavailable
