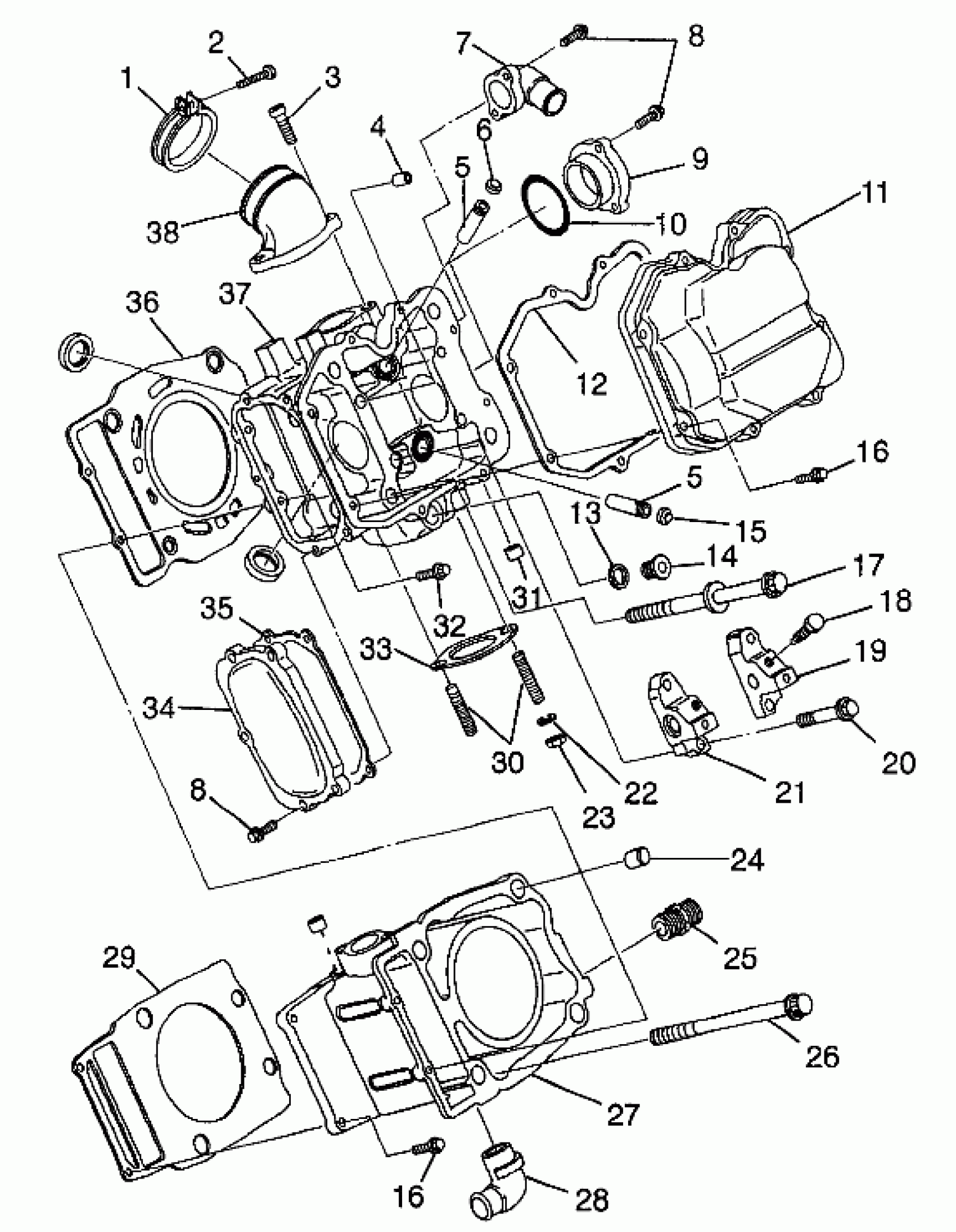

Polaris MAGNUM 6X6 - W97AE42A CYLINDER Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075D009) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.39

3

Bolt, Allen

3081330

$3.99

4

PIN,STRAIGHT

3084857

Unavailable

5

GUIDE,VALVE

3084994

$39.99

5

GUIDE,VALVE

3084994

$39.99

6

SEAL,INTAKE VALVE

3084858

$13.59

7

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

9

ADAPTER,CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$23.99

11

COVER,ROCKER

3085073

$75.99

12

GASKET,(R.COVER)

3085074

$31.99

13

GASKET

3084861

$4.79

14

PLUG

3084860

$7.19

15

SEAL,EXHAUST VALVE

3084859

$23.99

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

BOLT

3084875

Unavailable

18

BOLT

3084880

Unavailable

19

SUPPORT,VALVE ROCKER

3084864

Unavailable

20

BOLT

3084876

$4.79

21

SUPPORT,VALVE ROCKER

3084863

$91.99

22

WASHER LOCK ,(10)

3080530

$3.19

23

NUT(10)

3080285

Unavailable

24

PIN,STRAIGHT

3084838

Unavailable

25

UNION,OIL PUMP

3084849

Unavailable

26

BOLT, FLANGE

3084873

Unavailable

27

CYLINDER (Incl. 28, 31)

3085537

Unavailable

28

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

29

Gasket, Cylinder

3085370

$38.60

30

STUD,(10)

3085326

Unavailable

31

PLUG, BLIND

3084862

Unavailable

32

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

33

GASKET,EXH.

3085075

$39.99

34

Cover, Camshaft

3084868

Unavailable

35

GASKET Substituted by 3086200

3084869

Unavailable

36

GASKET,HEAD

3085337

$55.99

37

HEAD,CYLINDER * (Incl. 4-6, 13-15, 30, 31)

3085527

$712.79

38

ADAPTER

3084879

Unavailable
