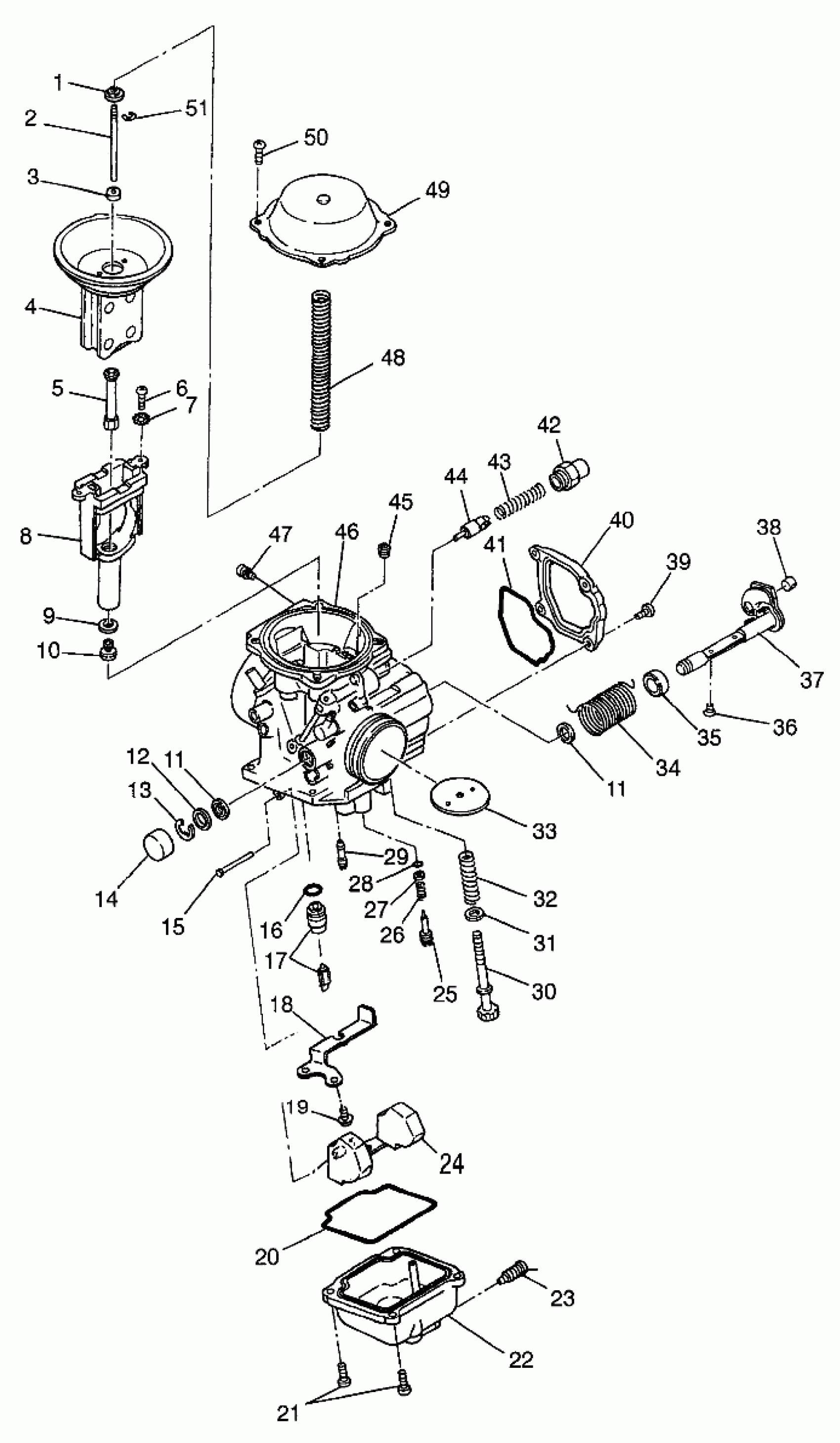

Polaris MAGNUM 6X6 - W97AE42A CARBURETOR Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075D013) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

JET NEEDLE(5F81-3) (5F81-3)

3130528

Unavailable

3

RING Substituted by 3130752

3130509

$5.65

4

DIAPHRAGM ASM.

3130506

Unavailable

5

NEEDLE JET (P-8) (P-8)

3130510

$48.56

6

SCREW

3130541

$11.11

7

WASHER,SPRING

3130540

$4.76

8

JETBLOCK ASM.

3130504

$64.75

9

WASHER (10)

3130014

$1.59

10

MAIN JET,#140 (#140)

3130527

$8.89

11

SEAL

3130515

$12.13

11

SEAL

3130515

$12.13

12

PACKING

----

Unavailable

13

E-RING

3130518

Unavailable

14

CAP

3130519

$10.51

15

PIN, FLOAT

3130361

$9.70

16

O-RING

3130533

$5.65

17

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

$61.74

18

PLATE

3130594

$32.37

19

SCREW

3130591

$3.97

20

O-RING

3130532

$32.37

21

SCREW

3130520

$1.59

22

FLOATBODY ASM.

3130590

$119.98

23

SCREW

3130521

$10.32

24

FLOAT ASM.

3130529

$99.74

25

Adjuster

3130524

$23.81

26

Spring

3130525

$5.65

27

Washer

3130523

$2.38

28

O-Ring

3130522

$5.65

29

JET,PILOT,#40 (#40)

3130624

$28.32

30

SCREW, ADJ.

3130546

$13.75

31

Ring

3130545

$12.13

32

Spring

3130544

$10.51

33

VALVE,THROTTLE (100)

3130502

$62.92

34

SPRING

3130589

$28.32

35

Ring

3130514

$7.27

36

SCREW

3130501

$3.97

37

SHAFT ASM,THROTTLE

3130513

$79.37

38

GUIDE,CABLE

3130543

$32.37

39

SCREW

3130535

$7.14

40

COVER

3130511

$54.99

41

O-Ring

3130512

Unavailable

42

HOLDER,GUIDE

3130199

$28.32

43

SPRING

3130538

$5.65

44

PLUNGER ASM. Substituted by 3130539

3130593

$40.46

45

JET,AIR,#160 (#160)

3130625

$14.56

46

CARBURETOR (Incl. 1-50)

3130724

Unavailable

47

SCREW & WASHER(10)

3084205

$3.97

48

SPRING

3130505

$28.32

49

Cover

3130503

$68.79

50

SCREW-MIKUNI C2=0408

3130592

$1.59

51

E-RING,(10)

3130508

$6.46
