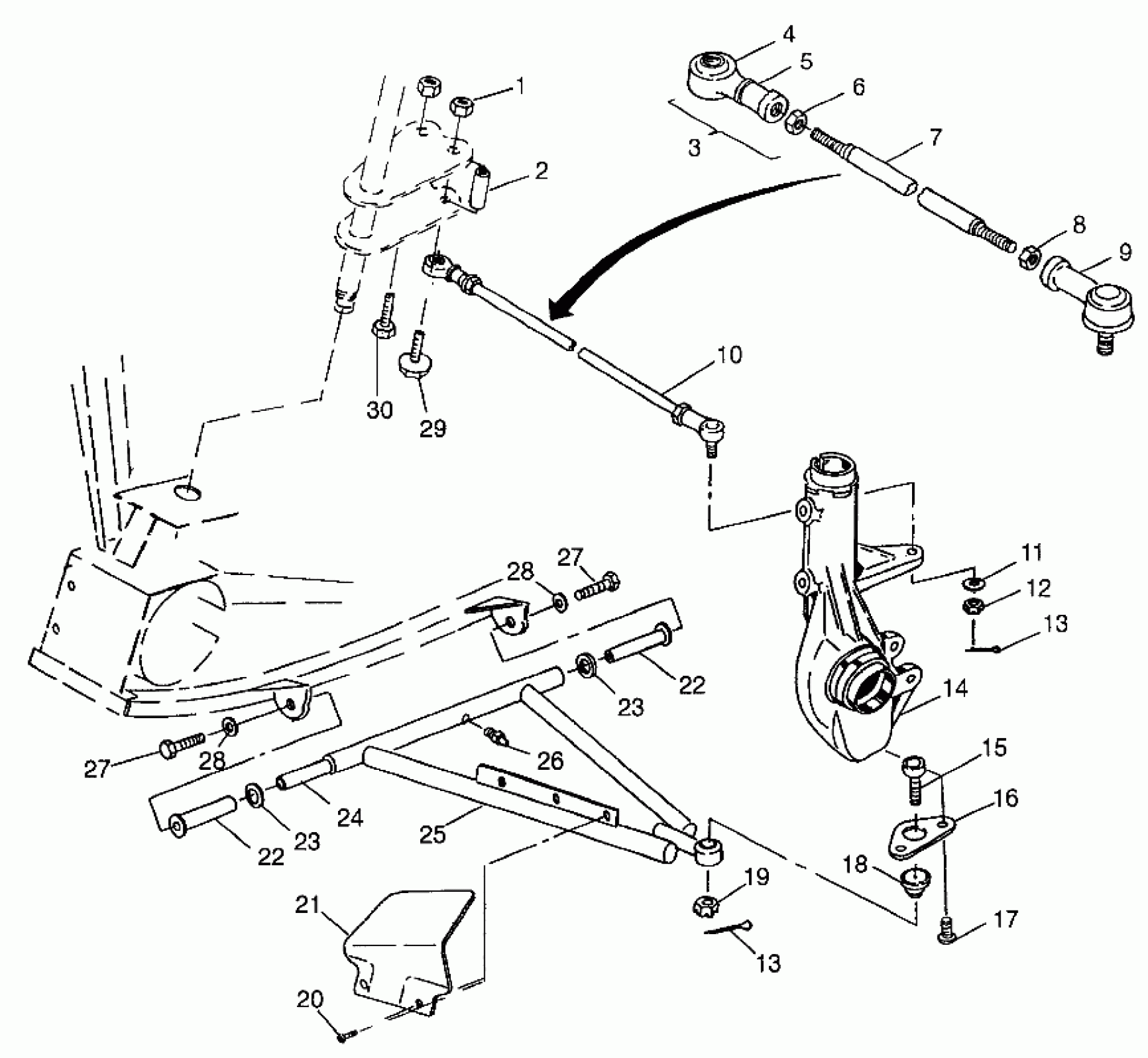

Polaris MAGNUM 6X6 - W97AE42A A-ARM/STRUT MOUNTING Magnum 6X6 W97AE42A and Swedish Magnum 6X6 S97AE42E (4940754075B012) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

ROD END ASM,/SEAL BOOT (Incl. 4, 5)

1822179

$69.99

4

BOOT, SEAL, ROD END

5410540

$7.19

5

ROD END,RH.THRD.

7061015

Unavailable

6

NUT HEX(10)

7542401

$2.39

7

ROD, TIE

5020768

$48.87

8

NUT, LH, 10 MM.(10)

7546902

Unavailable

9

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

10

TIE ROD ASM. Substituted by 1822478 (Incl. 3-9)

1822202

Unavailable

11

WASHER(10)

7555806

$1.49

12

NUT, CASTLE(10)

7546904

$4.79

13

PIN COTTER(10)

7661203

$1.49

13

PIN COTTER(10)

7661203

$1.49

14

Asm., Hubstrut, Service (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

SCREW(10)

7512084

$1.49

21

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

21

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

22

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

22

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

23

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

BUSHING,A-ARM SPACER(10)

5020677

$10.39

24

Shaft, A-Arm

5020681

Unavailable

25

KIT,A-FRAME,LH (Incl. 13, 23-28)

2200627

$123.70

25

KIT,A-FRAME,RH (Incl. 13, 23-28)

2200628

$123.70

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

SCREW(10)

7515554

Unavailable

30

BOLT(10)

7515415

$1.49
