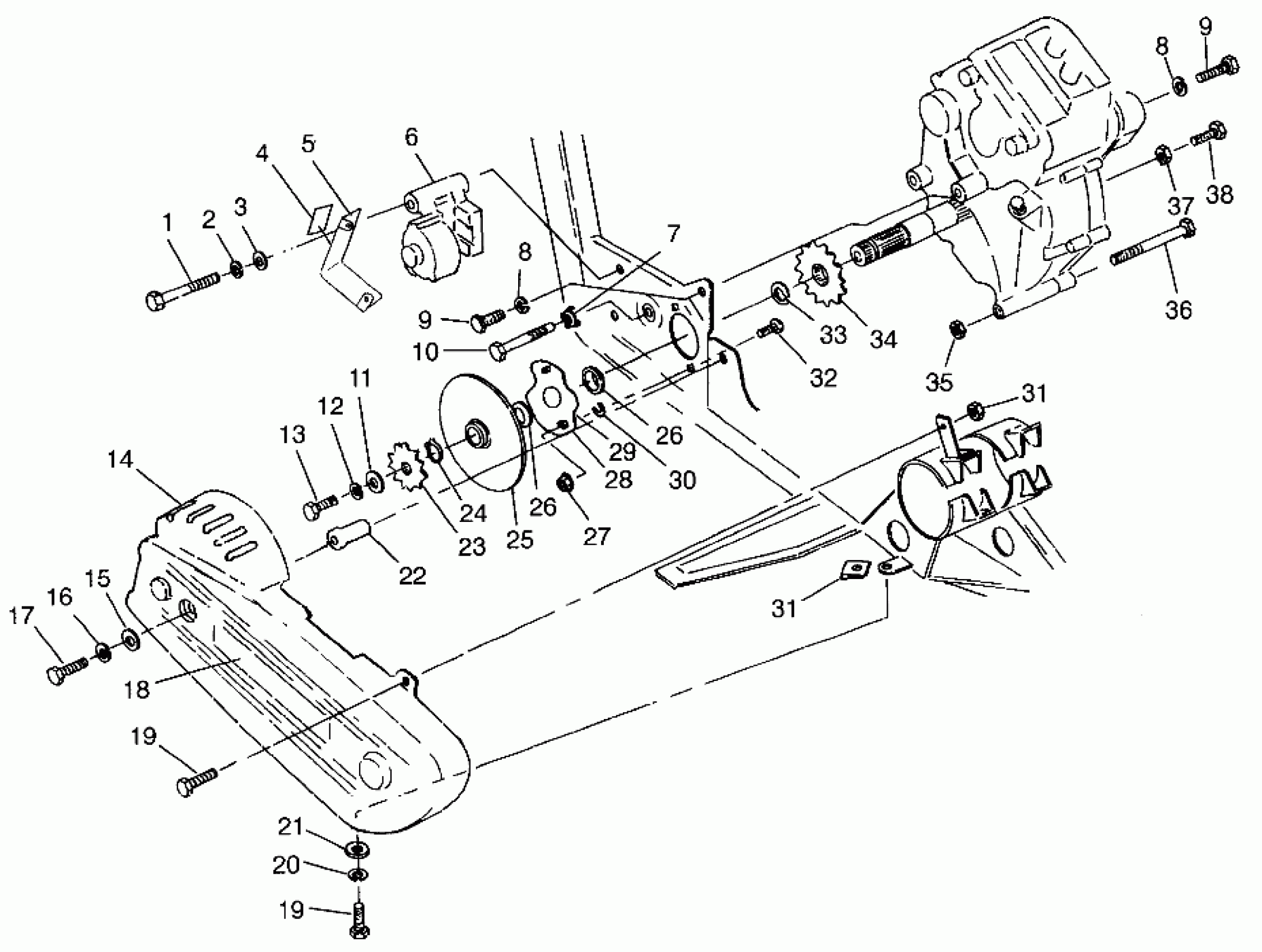

Polaris MAGNUM 6X6 - W968744 GEARCASE/BRAKE and CHAIN COVER MOUNTING Magnum 6X6 - W968744 and Magnum 6X6 (4936073607C013) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,BRAKE

1910125

Unavailable

7

Plate, Bolt Lock (See Pg. C7, Ref.13)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Bolt, Shoulder (See Pg. C7, Ref. 20)

----

Unavailable

11

WASHER FLAT(10)

7555701

$3.97

12

LOCK WASHER(10)

7552901

$1.19

13

BOLT(10)

7515321

Unavailable

14

GUARD,CTR.CHAIN,NOR.

5432254

Unavailable

15

WASHER(10) Substituted by 7558402

7555770

$0.99

16

WASHER(10)

7552606

$4.76

17

BOLT(10)

7515384

Unavailable

18

DECAL,DEMAND 6 DRIVE

7075705

Unavailable

19

BOLT(10)

7512269

Unavailable

19

BOLT(10)

7512269

Unavailable

20

WASHER(10)

7552605

$5.69

21

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

22

SPACER,CHAIN GUARD

5333254

Unavailable

23

SPKT, 11T

3221058

$74.99

24

RING,RETAINING(10)

7710433

$4.76

25

DISC ASM,BRAKE

1910177

Unavailable

26

SEAL, BRAKE

3610026

Unavailable

26

SEAL, BRAKE

3610026

Unavailable

27

NUT,FLANGE LOCK(10)

7542449

$3.97

28

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

29

BRG.ASM,O/P SHAFT

1590237

$84.99

30

SPACER,(10)

5210764

Unavailable

30

SHIM,.010,GEARCASE

5211065

Unavailable

30

SHIM,(.030)

5211517

Unavailable

31

NUT, SPEED(10)

7670060

$3.97

31

NUT, SPEED(10)

7670060

$3.97

32

BOLT,CARRIAGE(10)

7515484

Unavailable

33

RING,SNAP(10)

7710434

$3.97

34

SPKT, 12T

3221044

$44.51

35

NUT LOCK(10)

7542403

Unavailable

36

BOLT(10)

7515472

$2.38

37

NUT(10)

7542404

$1.59

38

BOLT(10)

7515485

$3.02
