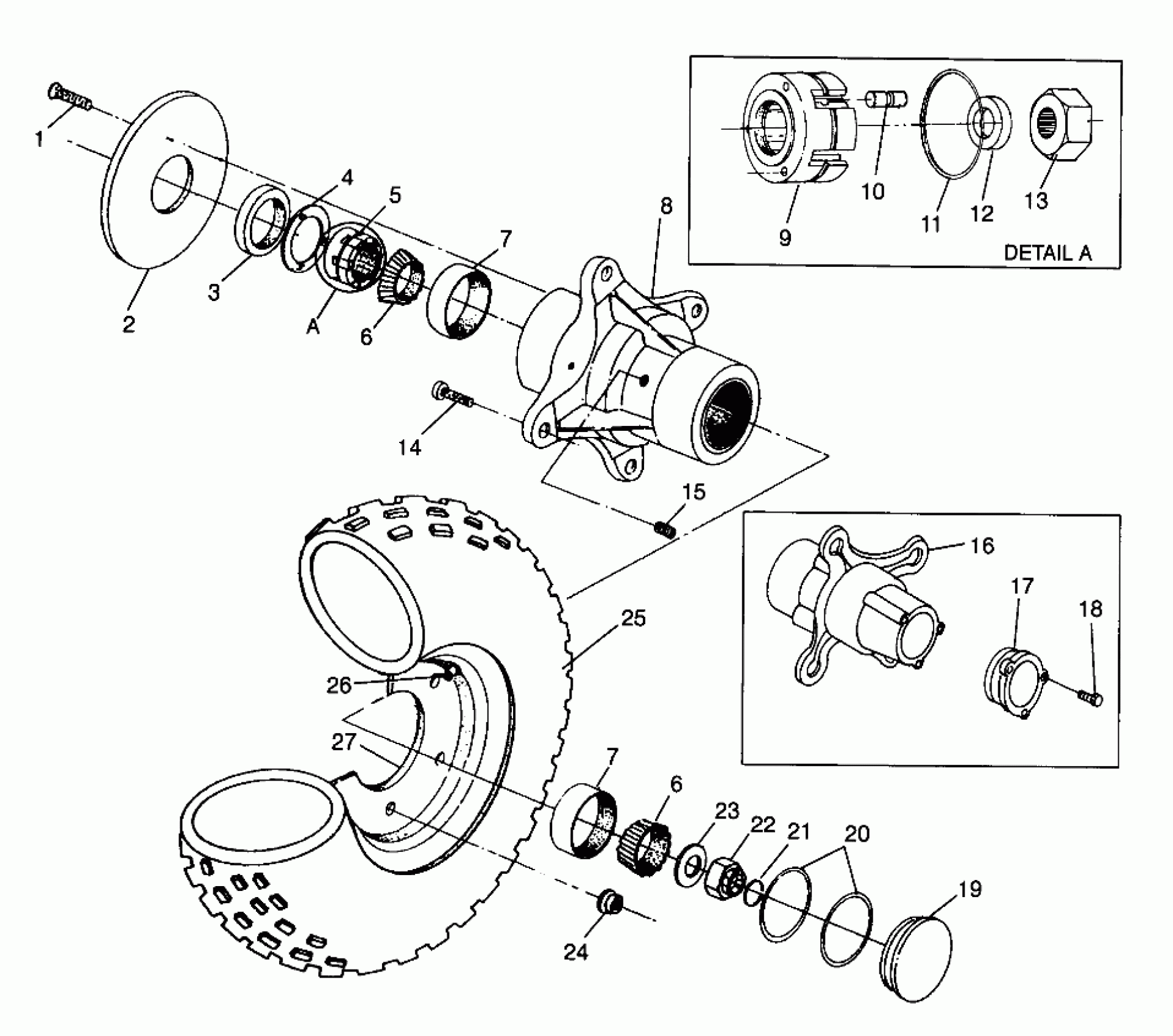

Polaris MAGNUM 6X6 - W968744 FRONT WHEEL Magnum 6X6 W968744 and Magnum 6X6 Swedish S968744 (4936073607B008) Diagram

BOLT(10)

7515321

Unavailable

DISC, BRAKE Substituted by 5242935

5211326

$89.03

SEAL, FR. HUB

3610019

$36.41

Plate, Armature

5211148

$28.32

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281 (Splined Drive Shaft)

1520214

$374.99

BRG,TAPER.ROLL.CONE

3554506

$31.75

BRG,TAPER.ROLL.CONE

3554506

$31.75

BRG,TAPER,ROLL CUP

3554507

$31.75

BRG,TAPER,ROLL CUP

3554507

$31.75

HUB ASM,W/BRG.RACE (Incl. 3, 6, 14)

1520182

Unavailable

Cage, Roll

3250028

Unavailable

ROLLS

3250010

$24.74

SPRING,GARTER

3250032

$17.46

SPACER Substituted by 1321814 (Splined Drive Shaft)

3250031

$24.99

CAM (Splined Drive Shaft)

3250030

$208.16

STUD(10)

7515523

$3.17

PLUG,PIPE

7052045

$13.75

HUB ASM,(3-LOBE)W/BRG.RACE (Incl. 3, 7, 14)

1520227

Unavailable

CAP,HUB,3-LOBE,(AWD) Substituted by 5432611

5432347

$14.56

SCREW(10)

7517250

Unavailable

CAP, HUB

5431367

Unavailable

O RING

5410470

$2.41

RING,RETAINING(10) (Splined)

7710436

$4.76

NUT,LH THREAD

7543204

Unavailable

NUT,RH THREAD

7543201

Unavailable

WASHER(10) (Splined)

7555903

Unavailable

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

TIRE,FR(25X8-12) (25x8x12)

5410947

$99.74

VALVE-RIM

1525017

$6.46

RIM,FRT,6X12(SILVER) Substituted by 1520269-117

1520179-117

$90.87
