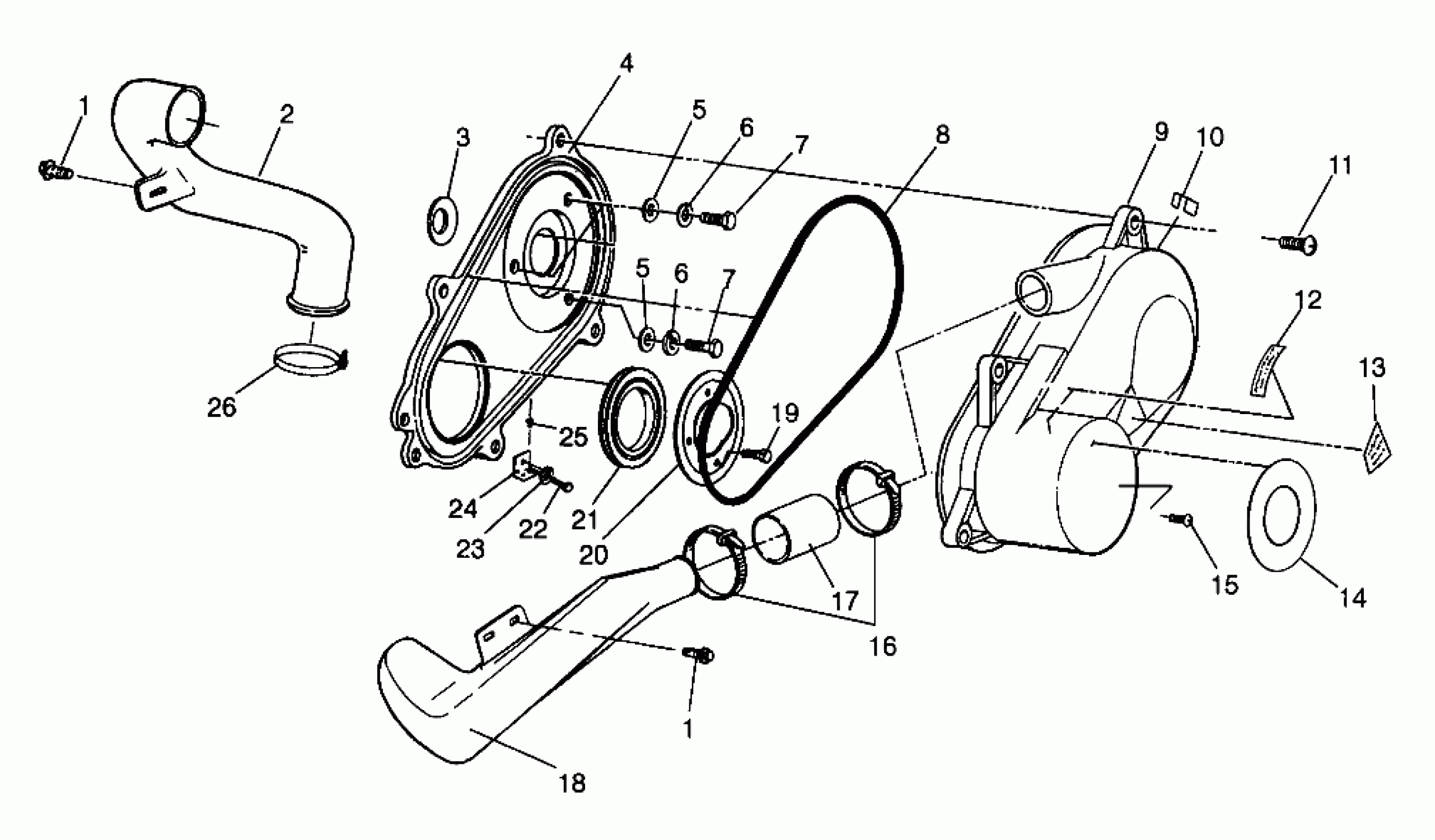

Polaris MAGNUM 6X6 - W968744 CLUTCH COVER Magnum 6X6 W968744 and Magnum 6X6 Swedish S968744 (4936073607C011) Diagram

BOLT(10)

7512232

$1.49

BOLT(10)

7512232

$1.49

DUCT, INLET, DOWN TUBE Substituted by 5432698

5431672

Unavailable

SEAL,CVR,CASE 1/2

5411180

$24.27

KIT,CVR,IN.CLUTCH,(MAG)

2200791

Unavailable

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

WASHER(10) (Not Used With Hi/Low Screws)

7552605

$5.27

WASHER(10) (Not Used With Hi/Low Screws)

7552605

$5.27

SCREW

7517219

$4.79

SCREW

7517219

$4.79

SEAL,CLUTCHCOVER

5521301

$30.88

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

CLIP,CLUTCH COVER(10)

7670051

$2.99

SCREW(10)

7512093

$1.49

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

SCREW(10)

7512094

$1.59

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

BOOT,CLUTCH INTAKE

5410421

$11.19

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

DESC NOT_AVAILABLE

7512219

Unavailable

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

Seal, Cover Case

5410575

Unavailable

SCREW(10)

7512095

$4.79

WASHER(10)

7555935

$2.39

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

RIVET,INTERLOCK,B(50)

7661638

$1.49

CLAMP, NARROW BAND(10)

7080511

$4.79
