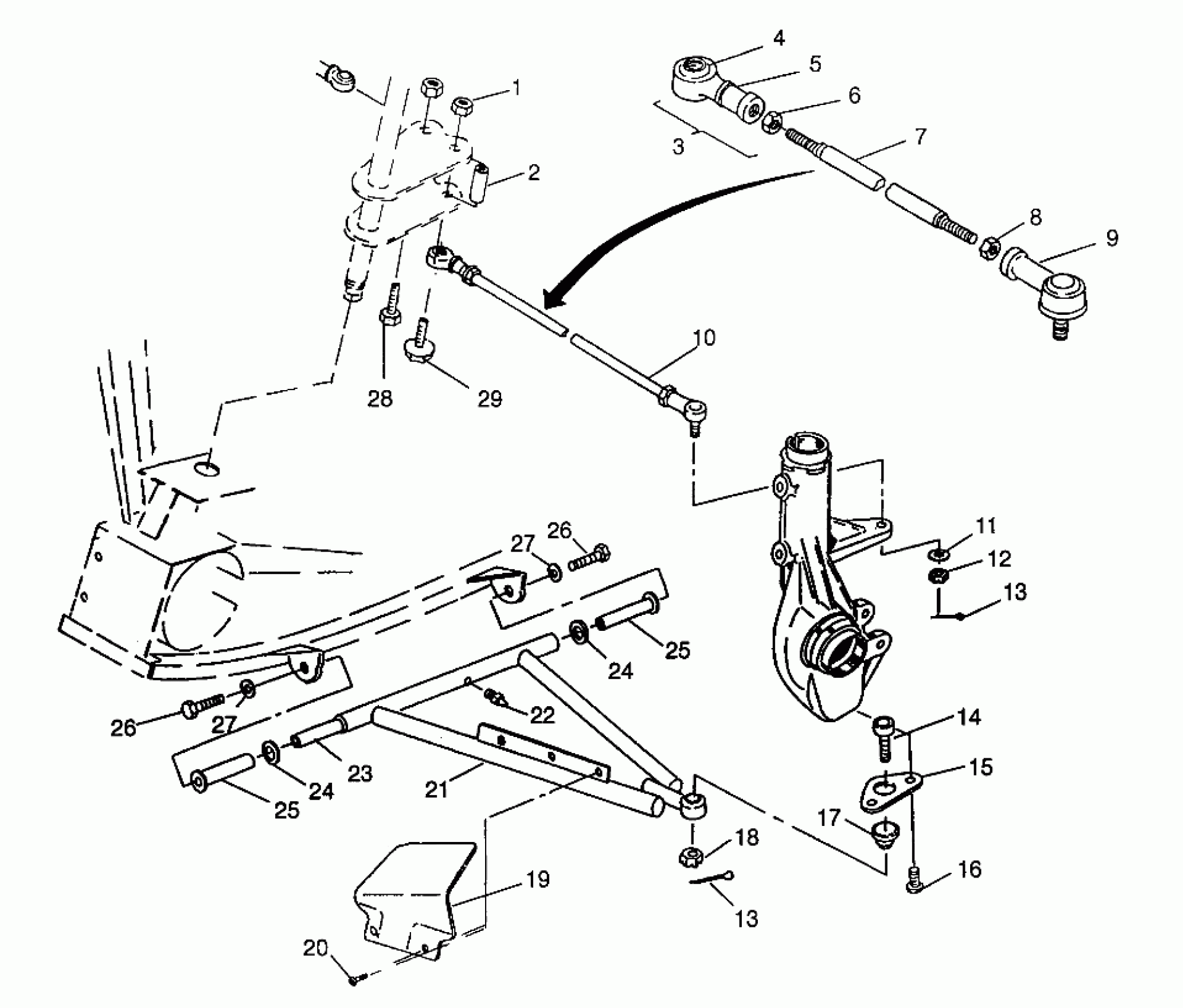

Polaris MAGNUM 6X6 - W968744 A-ARM/STRUT MOUNTING Magnum 6X6 - W968744 and Magnum 6X6 Swedish - S968744 (4936073607B012) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BUSHING

5333367

$6.59

3

ROD END ASM,/SEAL BOOT (Incl. 3, 4)

1822179

Unavailable

4

BOOT, SEAL, ROD END

5410540

$7.14

5

ROD END, RH Substituted by 1822179

7060149

Unavailable

6

NUT HEX(10)

7542401

$2.38

7

ROD, TIE

5020768

$53.32

8

NUT, LH, 10 MM.(10)

7546902

Unavailable

9

ROD END,LH,W/FTG,10 MM.

7060171

$60.70

10

TIE ROD ASM. Substituted by 1822478

1822202

$165.94

11

WASHER(10)

7555806

$0.79

12

NUT, CASTLE(10)

7546904

$4.76

13

PIN COTTER(10)

7661203

$1.19

13

PIN COTTER(10)

7661203

$1.19

14

BALL JOINT Substituted by 7080673

7080364

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

19

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

20

SCREW(10)

7512084

$1.19

21

KIT,A-FRAME,LH (Incl. 13, 21, 22, 24-27)

2200627

$151.99

21

KIT,A-FRAME,RH (Incl. 13, 21, 22, 24-27)

2200628

$151.99

22

ZERK,FITTING,THREADED(10)

7080433

$1.19

23

Shaft, A-Arm

5020681

$33.24

24

BUSHING,A-ARM SPACER(10)

5020677

$10.32

24

BUSHING,A-ARM SPACER(10)

5020677

$10.32

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

26

BOLT(10) Substituted by 7512492

7515458

$1.19

26

BOLT(10) Substituted by 7512492

7515458

$1.19

27

WASHER(10)

7552603

$0.79

27

WASHER(10)

7552603

$0.79

28

BOLT(10)

7515415

$1.19

29

SCREW(10)

7515554

Unavailable
