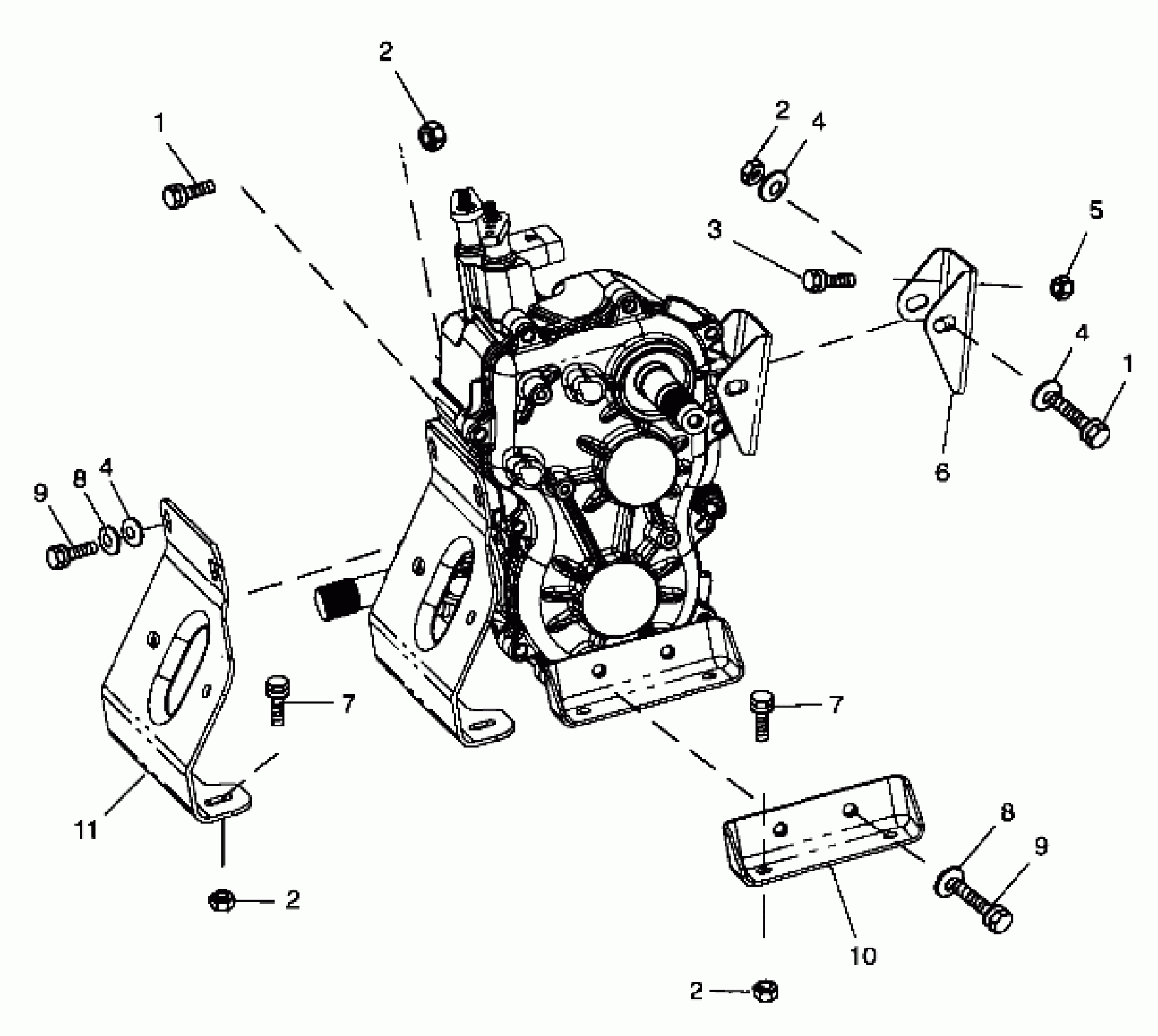

Polaris MAGNUM 500 - A99CD50AA TRANSMISSION MOUNTING - A99CD50AA (4949254925D002) Diagram

#

Description
Price

-

Asm., Main Gearcase (See Footnote) (See Main Gearcase Pg. C10 for Details)

----

Unavailable

1

BOLT(10)

7515417

$4.76

1

BOLT(10)

7515417

$4.76

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

3

SCREW(10)

7515398

$2.38

4

WASHER ,(10)

7555976

$3.97

4

WASHER ,(10)

7555976

$3.97

4

WASHER ,(10)

7555976

$3.97

5

NUT LOCK(10)

7542321

$1.19

6

MOUNT,R.TRANSMISSION

5242819-067

Unavailable

7

SCREW ,(10)

7517289

$3.29

7

SCREW ,(10)

7517289

$3.29

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

MOUNT,TRANSMISSION,BLK

5242820-067

$7.38

11

MOUNT,REAR MOTOR,BLK

1012975-067

Unavailable
