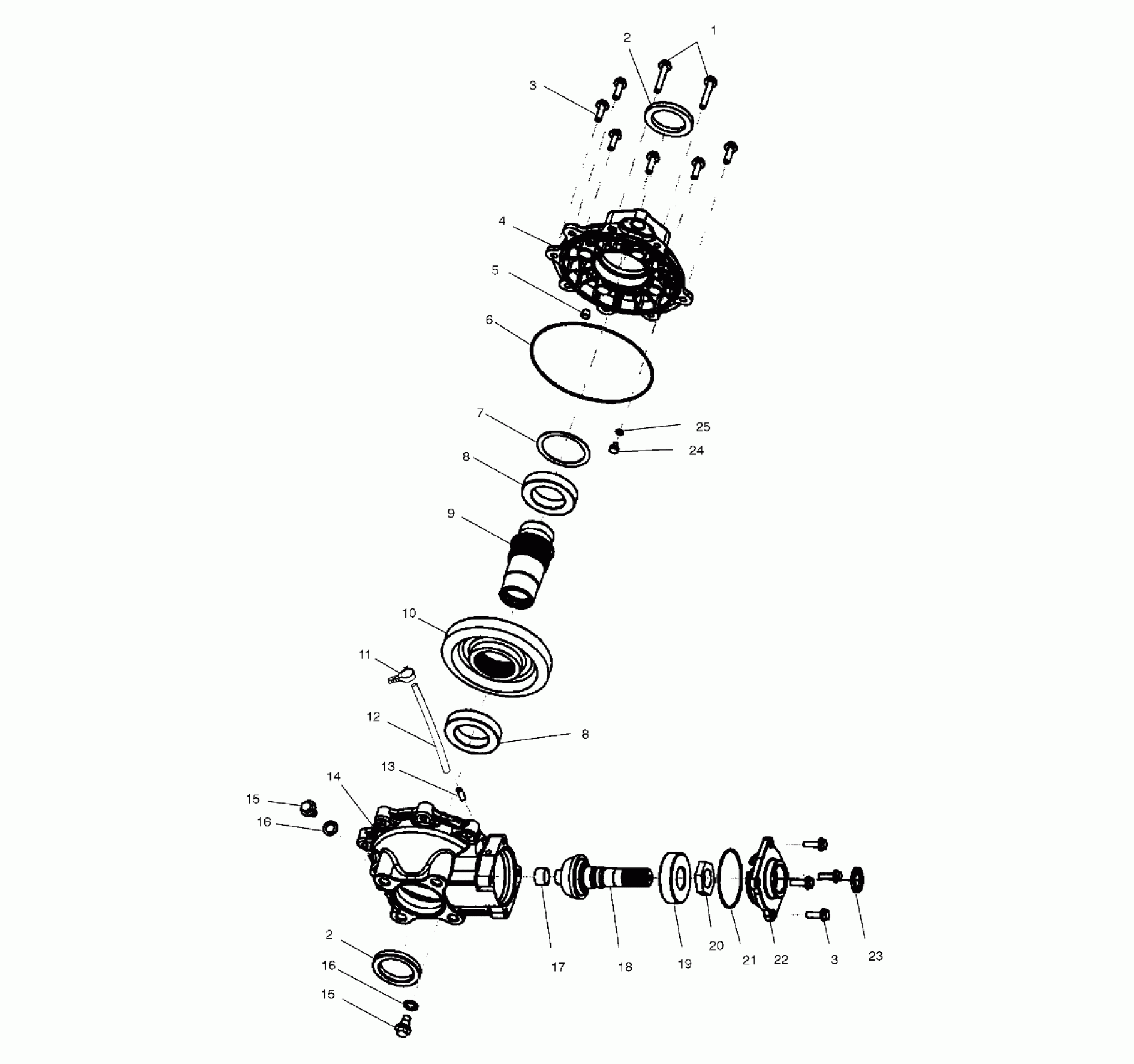

Polaris MAGNUM 500 - A99CD50AA REAR HOUSING - A99CD50AA (4949254925C011) Diagram

#

Description
Price

-

GEARCASE ASM,REAR,HB (Incl. 1-10, 13-25) (For Machines Built Before 2-21-99)

1341254

Unavailable

-

GEARCASE,REAR,ASM. Substituted by 1341321 (Incl. 1-10, 13-25) (For Machines Built After 2-21-99)

1341309

Unavailable

1

Screw

3233585

Unavailable

2

Seal

3233256

Unavailable

2

Seal

3233256

Unavailable

3

Screw

3233252

$5.27

3

Screw

3233252

$5.27

4

GEARCASE COVER OUTPUT

3233584

$262.76

5

PIPE,KNOCK

3233529

$7.99

6

O-RING 166

3233587

$32.37

7

SHIM 3.1 X 2.5

3233581

$39.59

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

9

SHAFT,REAR AXEL

3233580

Unavailable

10

GEAR BEVEL 31T REAR

3233579

Unavailable

11

CLIP,SILENCER,(10)

7670102

$2.39

12

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

13

TUBE,VENT

3233524

$7.19

14

GEARCASE,REAR

3233586

Unavailable

15

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

15

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

16

Washer

3233324

$8.99

16

Washer

3233324

$8.99

17

Bushing

3233577

$19.99

18

SHAFT,PINION,10T BEVEL,REAR Substituted by 3233707 (For Gearcase 1341254)

3233576

Unavailable

18

SHAFT-PINION,10T BEVEL,REAR (For Gearcase 1341309)

3233707

Unavailable

19

BEARING,BALL Substituted by 3233714

3233575

Unavailable

20

NUT

3233574

Unavailable

21

O-RING 151

3233588

$10.55

22

GEARCASE,COVER

3233573

Unavailable

23

Seal

3233319

$27.99

24

THRUST BUTTON

3233582

$7.91

25

SHIM .450 X .265

3233583

$26.39
