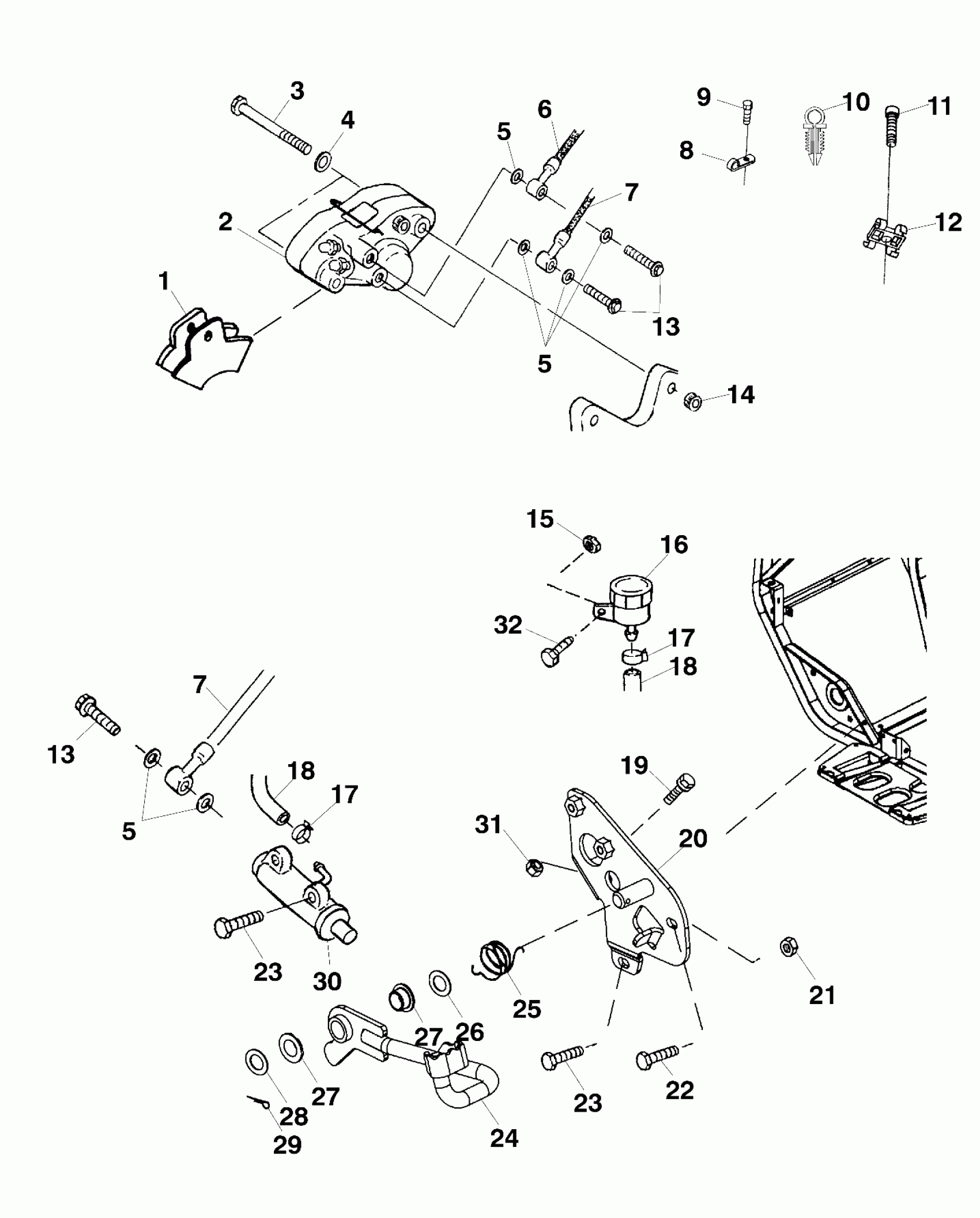

Polaris MAGNUM 500 - A99CD50AA REAR BRAKE - A99CD50AA (4949254925C005) Diagram

#

Description
Price

1

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer, Pin)

2201189

$38.08

2

BLEEDER REPLACEMENT,KIT

2201428

$27.78

2

PISTON-RR CALIPER,DH2P

2201467

$89.03

2

CALIPER ASM,R.BRAKE,WW Substituted by 1910367

1910270

$288.87

2

KIT,SEAL,CALIPER

2201385

$64.75

3

SCREW CAP(10)

7515406

$7.14

4

WASHER(10)

7555806

$0.79

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

LINE-BRAKE,FRT HAND,MAST CYL

1910286

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.14

9

SCREW,(10)

7517386

$1.19

10

CLIP,BRAKELINE,(.250 ID)

7080762

Unavailable

11

SCREW,(10)

7512024

$4.76

12

CLIP-T,DUAL 3/16" LINE

7080816

$5.40

13

BOLT,BANJO,BRAKE

1930674

Unavailable

13

BOLT,BANJO,BRAKE

1930674

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

15

NUT-LOCK(10)

7542122

$1.19

16

RESERVOIR ASM,R.BRAKE

1930854

Unavailable

17

HOSE CLAMP, RED

7080003

$1.19

17

HOSE CLAMP, RED

7080003

$1.19

18

HOSE-RESERVOIR,HB

1910331

$4.92

18

HOSE-RESERVOIR,HB

1910331

$4.92

19

SCREW(10)

7515398

$2.38

20

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

21

NUT, LOCK(10)

7542103

$5.56

22

BOLT(10)

7512247

Unavailable

23

SCREW(10)

7515158

$4.76

23

SCREW(10)

7515158

$4.76

24

BRAKE ROD,HB,PVT,BLK

1012752-067

Unavailable

25

SPRING-TORSION,BRAKE

7041750

$8.89

26

WASHER(10)

7555919

$4.99

27

BUSHING-PEDAL PIVOT

5433189

$3.97

27

BUSHING-PEDAL PIVOT

5433189

$3.97

28

WASHER,SPRING

7556090

$2.62

29

COTTER PIN(10)

7661401

$0.79

30

BRAKE MSTR CYL,FOOT,BANJO

1910311

$174.03

31

NUT-5/16-18 NYLOK-Y

7542324

$0.79

32

BOLT(10) Substituted by 7512240

7512111

$3.97
