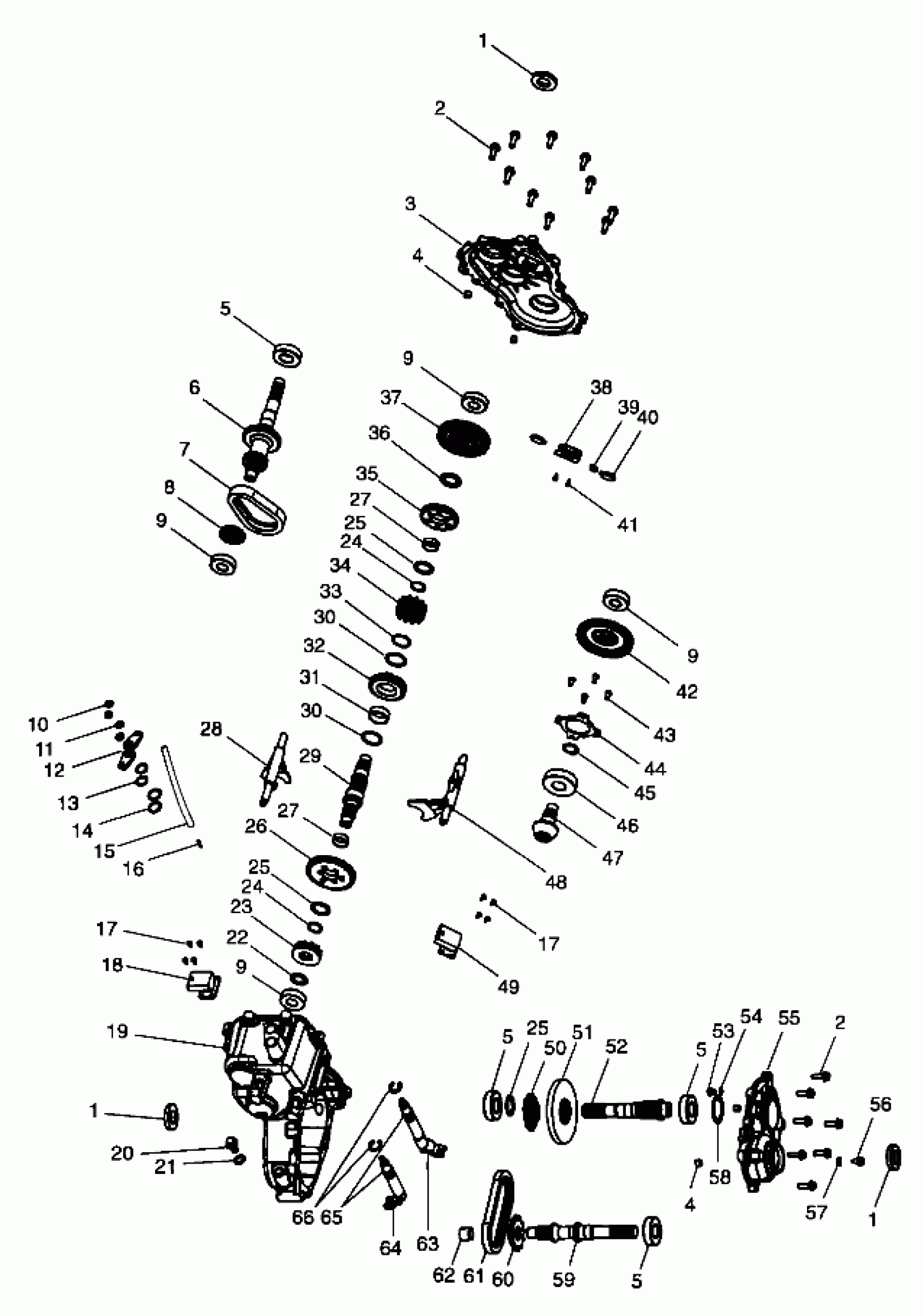

Polaris MAGNUM 500 - A99CD50AA MAIN GEARCASE - A99CD50AA (4949254925C009) Diagram

#

Description
Price

-

GEARCASE ASM,MAIN,HB (Incl. 1-66)

1341252

Unavailable

1

Seal

3233248

$32.37

1

Seal

3233248

$32.37

1

Seal

3233248

$32.37

2

Screw

3233252

$5.69

2

Screw

3233252

$5.69

3

GEARCASE,LH

3233610

Unavailable

4

PIPE,KNOCK

3233529

$10.99

4

PIPE,KNOCK

3233529

$10.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

6

SHAFT,INPUT 31T

3233604

$188.40

7

CHAIN,SILENT,34P

3233036

Unavailable

8

GEAR,16T

3233603

$81.75

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

10

Nut

3233055

$3.32

11

Washer

3233054

$6.46

12

Bellcrank

3233153

$32.37

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

14

Washer

3233040

$9.52

15

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

16

Vent

3233037

Unavailable

17

SCREW,TAP

3233616

$5.65

17

SCREW,TAP

3233616

$5.65

18

SWITCH

3234019

Unavailable

19

GEARCASE,RH

3233902

Unavailable

20

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

21

Washer

3233324

$8.54

22

Washer

3233628

Unavailable

23

ENGAGEMENT DOG,LOW

3233732

$178.08

24

RING,RETAINING

3233306

$4.76

24

RING,RETAINING

3233306

$4.76

25

WASHER,THRUST

3233619

$24.99

25

WASHER,THRUST

3233619

$24.99

25

WASHER,THRUST

3233619

$24.99

26

GEAR,35T

3233631

$132.54

27

BEARING, NEEDLE

3233103

$31.75

27

BEARING, NEEDLE

3233103

$31.75

28

SHIFT FORK

3233602

Unavailable

29

SHAFT REVERSE

3233598

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

BEARING, NEEDLE

3233014

$43.65

32

SPROCKET,24T

3233599

Unavailable

33

RING,RETAINING

3233029

Unavailable

34

DOG,ENGAGE,12PT,HI/REV

3234020

Unavailable

35

GEAR,30T

3233600

$210.46

36

Spacer

3233613

$2.41

37

GEAR,HELICAL,40T

3233601

Unavailable

38

BRACKET,INTERLOCK

3233309

$20.48

39

Spring

3233032

$13.75

40

PIN,INTERLOCK

3233308

Unavailable

41

SCREW Substituted by 3233747

3233033

Unavailable

42

GEAR,HELICAL 44T

3233612

Unavailable

43

Screw

3233608

$5.99

44

COVER,BEARING

3233609

$19.99

45

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

46

BEARING,BALL

3233607

$36.41

47

Subasm., Ground Spiral Bevel [Incl. 51]

3234912

Unavailable

48

SHIFT,FORK,LOW

3233605

Unavailable

49

SWITCH,ITW 2 POSITION

3234001

Unavailable

50

SPROCKET,12T

3233620

Unavailable

51

Subasm., Ground Spiral Bevel [Incl. 47]

3234912

Unavailable

52

SHAFT,REAR OUTPUT

3233622

Unavailable

53

THRUST BUTTON

3233582

$8.99

54

SHIM .450 X .265

3233583

$33.24

55

COVER,OUTPUT

3233623

Unavailable

56

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

57

PLUG, WASHER

3233254

$8.08

58

SHIM

3233611

$34.99

59

SHAFT,FRONT OUTPUT

3233625

$141.65

60

SPROCKET (12T)

3233093

Unavailable

61

ROLLER CHAIN,24P

3233626

Unavailable

62

BUSHING-GARLOCK

3233552

$23.81

63

SHIFT SHAFT

3233624

$58.73

64

SHIFT SHAFT

3233627

Unavailable

65

O-Ring

3233548

$33.24

66

RING,RETAINING

3233618

$1.75
