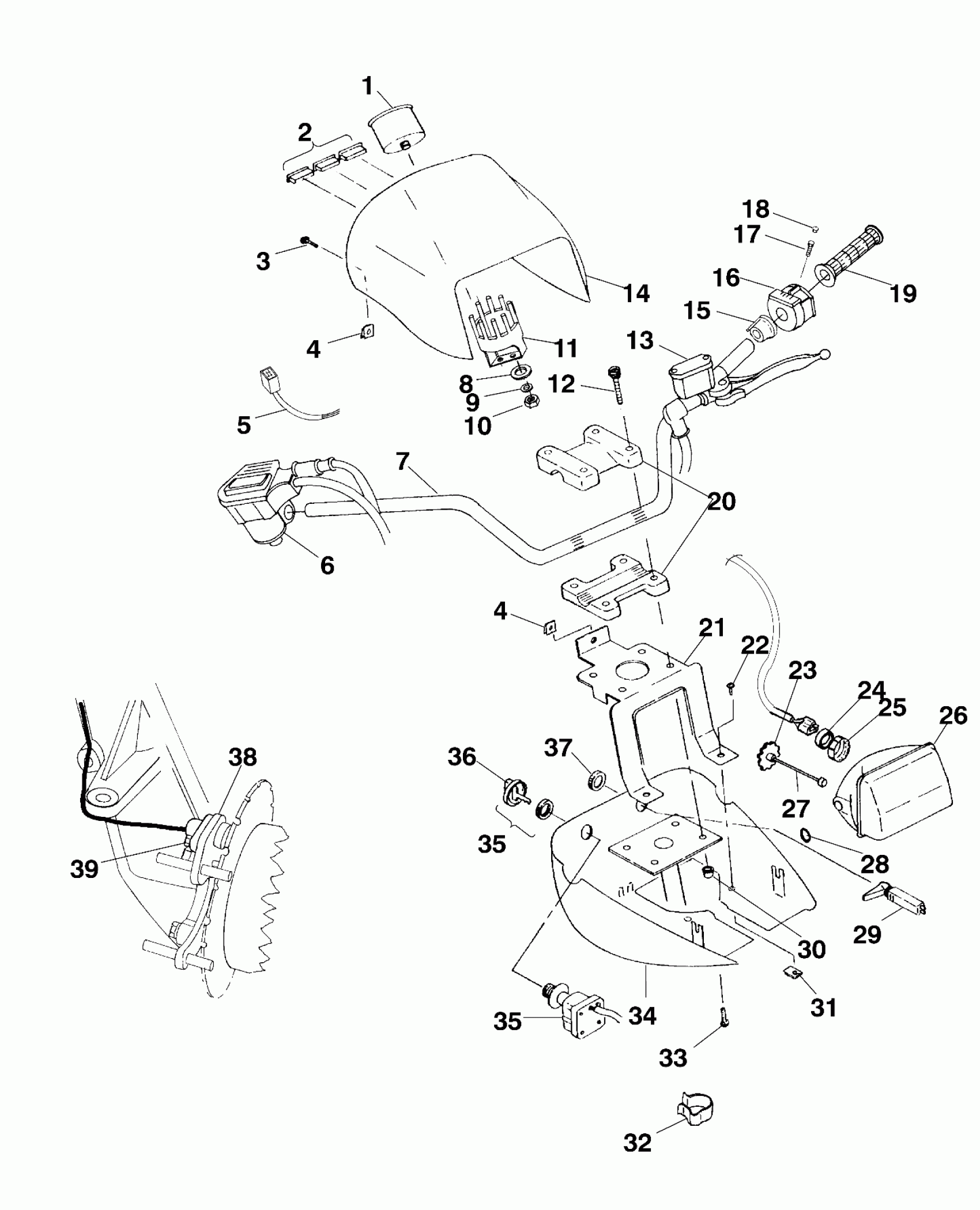

Polaris MAGNUM 500 - A99CD50AA HANDLEBAR and HEADLIGHT POD - A99CD50AA (4949254925B011) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363

3280290

Unavailable

2

PLUG,INDIC.HOLE

5430967

$6.46

2

INDIC"HOT TEMPERATURE"

4040053

$32.37

2

INDIC"NEUT./REV."

4040054

$32.37

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

4

NUT

7670086

$3.97

4

NUT

7670086

$3.97

5

HARNESS-HEADLIGHT POD

2460714

$14.76

6

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B8, Ref. 5)

----

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$119.99

8

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

9

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

10

NUT, BRASS(10)

7541933

Unavailable

11

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

12

SCREW(10)

7515189

$1.19

13

Asm., Master Cylinder (See Footnote) (See Controls - Master Cylinder/Brake Line Pg. B9 for Details)

----

Unavailable

14

POD,HEADLIGHT,UPPER,EB GREEN

5433042-195

Unavailable

15

SPACER,SWITCH,LH

5432926

$2.62

16

SWITCH-HANDLEBAR,HI/LO/OFF,6P Substituted by 4010262

4110243

$206.41

17

SCREW,SET

7517625

$4.76

18

PLUG,HOLE(10)

5432952

$6.46

19

GRIP, HANDLEBAR

5431030

$28.32

20

KIT,H'BAR BLOCK (Incl. Blocks and 20,12,30)

2200774

Unavailable

20

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

21

BRKT,POD MTG,BLK.

5240586-067

$44.99

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

23

KNOB,ADJUSTING

4032079

$28.32

24

BOOT, HEADLIGHT

5411120

$28.32

25

COLLAR,LOCK

4032077

$27.78

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$28.32

29

CABLE,CHOKE,W/ADJUSTER

7080726

$101.17

30

NUT-LOCK(10)

7542122

$1.19

31

NUT,U-TYPE(10)

7670089

$5.56

32

CLIP,CABLE RETAIN,(10)

7080631

Unavailable

33

SCREW(10)

7522021

Unavailable

34

POD,H/L,LOW,BLK.

5431811-070

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

35

SWITCH,IGN.W/ CON (Incl. Key) (See Footnote) NOTE: Ignition Key may be ordered by using the four digitnumber on the key.

4110209

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

35

SWITCH,IGN.W/ CON (Incl. Key) (See Footnote) NOTE: Ignition Key may be ordered by using the four digitnumber on the key.

4110209

Unavailable

36

COVER, KEY Substituted by 5433534

5431964

$13.75

37

Nut

7080229

$19.84

38

SENSOR,HALL EFFECT Substituted by 2201625

4040081

$232.37

39

SCREW(10)

7515133

$3.97
