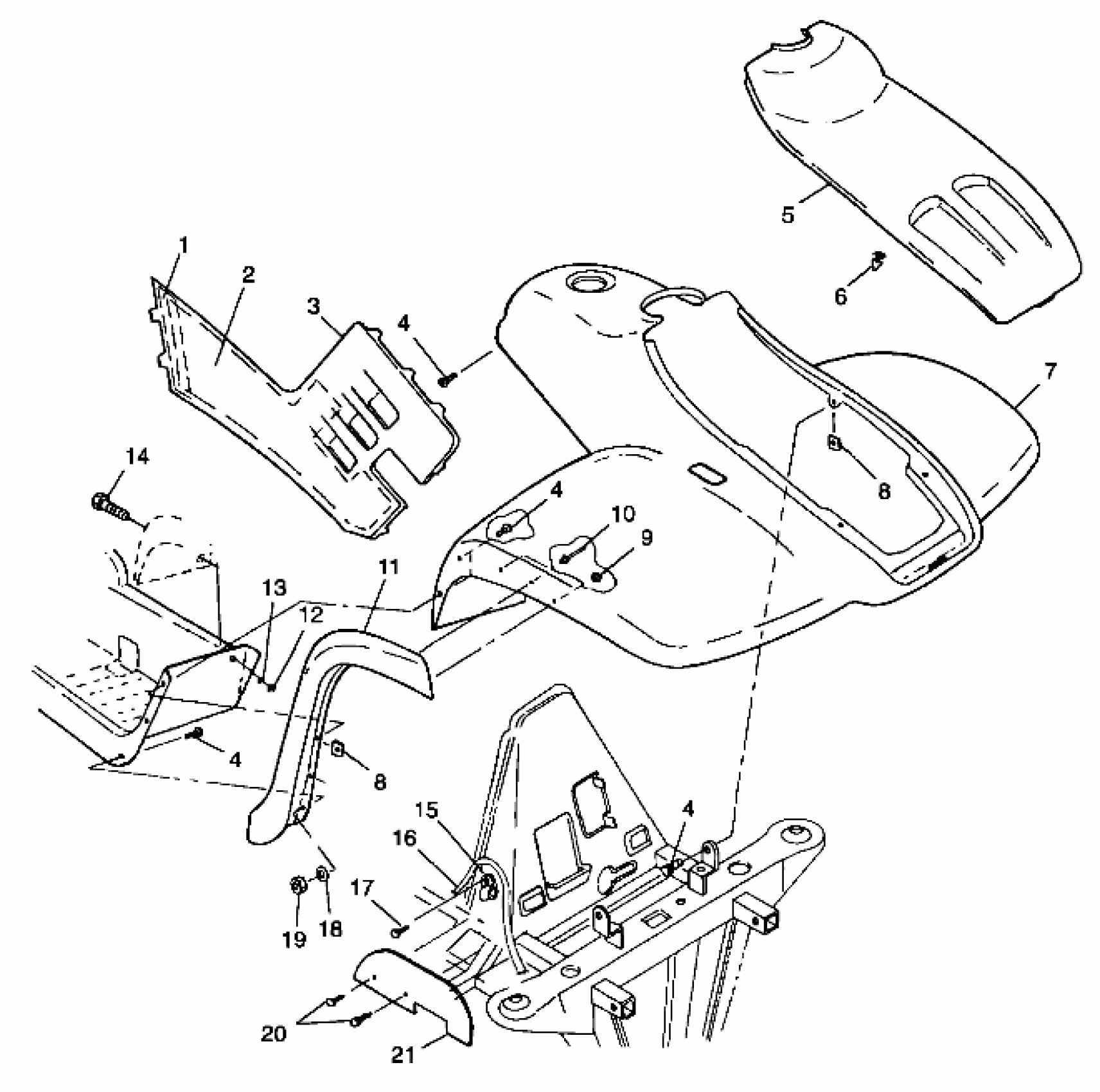

Polaris MAGNUM 500 - A99CD50AA FRONT CAB - A99CD50AA (4949254925A007) Diagram

#

Description
Price

1

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

2

FOIL,FOAM,SIDEPANEL

5810996

$55.99

3

PANEL/FOIL,RH,E.B.GR.

2631977-195

Unavailable

3

PANEL-SIDE,LH,MODIFIED,EB GRN

5433263-195

$87.30

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

5

COVER,FRONT,E.B.GRN.

5432088-195

Unavailable

6

CLIP,SPRING(10)

7670085

$3.51

7

CAB,FRONT,SVC,E.B. GREEN Substituted by 2631990-195

2632031-195

$281.75

8

NUT, SPEED(10)

7670057

$1.49

8

NUT, SPEED(10)

7670057

$1.49

9

PALNUT(10)

7670009

$2.39

10

RIVET(50)

7661645

$3.99

11

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

Unavailable

11

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

12

NUT(10)

7541925

$1.49

13

WASHER(10)

7555792

$4.79

14

SCREW(10) Substituted by 7511989

7512085

Unavailable

15

CLAMP,HOSE,NYLON

7080693

$5.59

16

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

17

SCREW(10)

7512017

$4.79

18

WASHER(10) Substituted by 7558221

7555931

Unavailable

19

NUT-LOCK(10)

7542122

$1.49

20

CLIP-PLASTIC DART, NYLON

7670088

$1.59

21

SHIELD,DEFLECTOR Substituted by 5811917

5811489

$7.38
