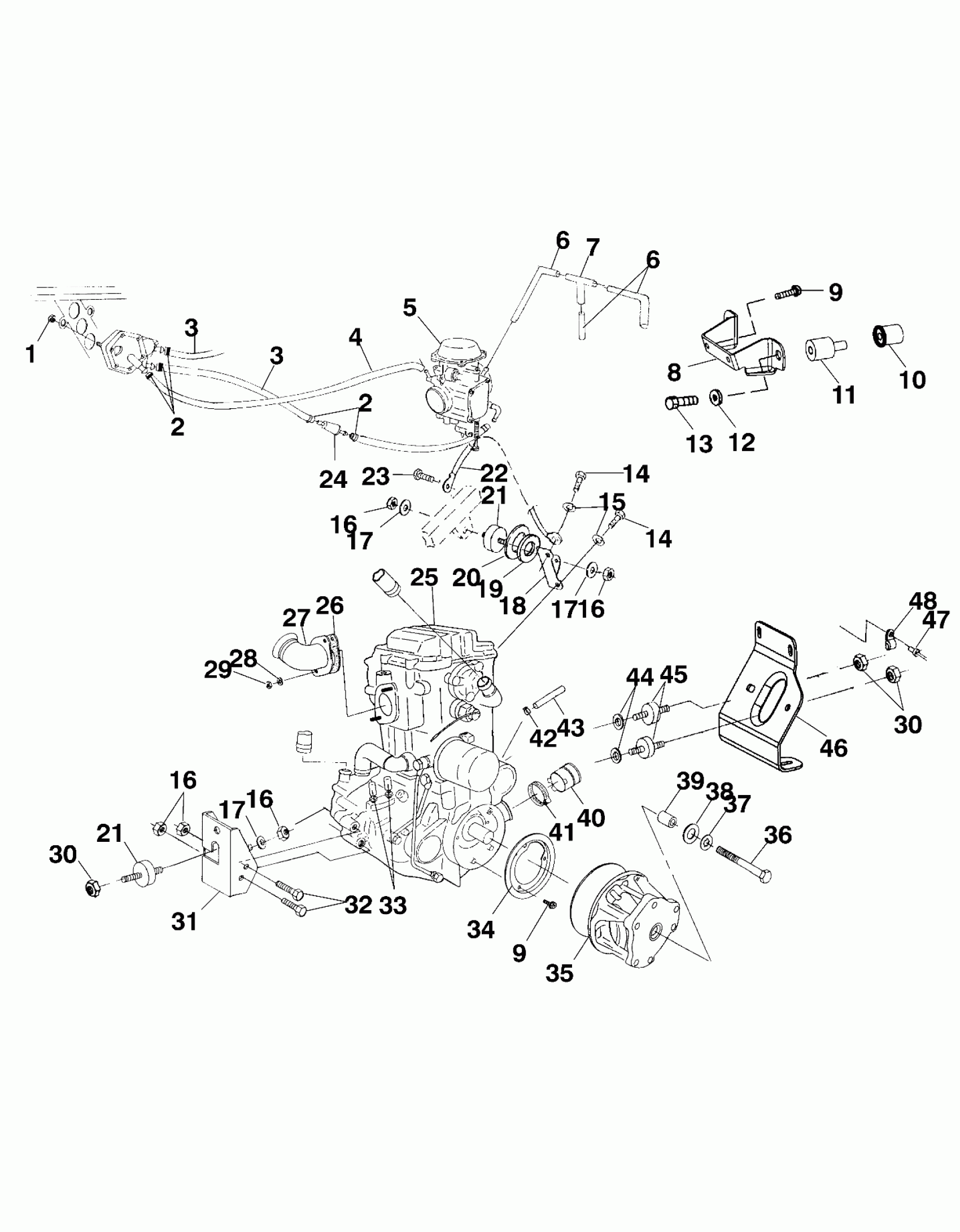

Polaris MAGNUM 500 - A99CD50AA ENGINE MOUNTING - A99CD50AA (4949254925A013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

4

LINE-FUEL IMPULSE,66CM [No Longer Available]

8450083-66

Unavailable

5

Asm., Carburetor (See Footnote) (See Carburetor Pg. D8, Ref. 47)

-------

Unavailable

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FITTING, TEE

7052075

$9.59

8

BRKT, CARB.MT.

5240609-067

Unavailable

9

Screw and Washer (See Crankcase Pg. D5, Ref. 6)

-------

Unavailable

9

Screw and Washer (See Crankcase Pg. D5, Ref. 6)

-------

Unavailable

10

NUTSERT,HEX(10)

7547069

$3.99

11

MOUNT,CARB,RUBBER Substituted by 3021186

3110079

$11.99

12

WASHER(10)

7552605

$5.27

13

SCREW(10)

7512102

$3.19

14

BOLT(10)

7512315

$4.79

14

BOLT(10)

7512315

$4.79

15

LOCK WASHER(10)

7552901

$1.49

16

NUT LOCK(10)

7542403

$3.99

16

NUT LOCK(10)

7542403

$3.99

16

NUT LOCK(10)

7542403

$3.99

16

NUT LOCK(10)

7542403

$3.99

17

WASHER(10)

7555806

$1.49

17

WASHER(10)

7555806

$1.49

17

WASHER(10)

7555806

$1.49

18

MOUNT,ENGINE,TOP,BLK

5242936-067

$5.75

19

WASHER(10)

7555823

$3.99

20

SPACER-MOTOR MNT TOP

5132007

Unavailable

21

MOUNT,RUBBER,TOP

3110044

Unavailable

21

MOUNT,RUBBER,TOP

3110044

Unavailable

22

CABLE,GND-ENGINE

4010132

Unavailable

23

SCREW,(10)

7517386

$1.49

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

ENG.(S.B.)EH50PLE-01 (EH50PLE08) (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorizat

3085556

Unavailable

26

Gasket, Exhaust (See Cylinder Pg. D4, Ref. 20)

-------

Unavailable

27

MANIFOLD,BLK (After 9-11-98)

1260978-029

Unavailable

27

MANIFOLD,BLK. (Before 9-11-98)

1260889-029

$70.39

28

WASHER LOCK ,(10)

3080530

$3.19

29

NUT(10)

3080285

Unavailable

30

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

30

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

31

MOUNT,LOW.FR.ENGINE,BLK.

5242818-067

$40.19

32

BOLT(10)

7515417

$4.79

33

CLAMP-HOSE,.875-SS

7080474

$8.40

34

Bracket, Retainer, Seal (See Footnote) (See Clutch Cover Pg. C3, Ref. 18)

-------

Unavailable

35

Asm., Drive Clutch, ATV-06 (See Footnote) (See Drive Clutch Pg. C1, Ref. 17)

-------

Unavailable

36

BOLT(10)

7512566

$30.79

37

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

38

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

39

BUSHING-.437 X.770 X.50

5430261

$7.19

40

BOOT,CLUTCH INTAKE

5410421

$11.19

41

CLAMP, NARROW BAND(10)

7080511

$4.79

42

CLAMP,HOSE,SPRING

7080694

$6.53

43

Hose, Breather (See Air Box Pg. B2, Ref. 13)

-------

Unavailable

44

WASHER, FLAT(10)

7555815

$3.99

45

MOUNT,RUBBER,FRONT

3110046

Unavailable

46

Mount, Motor, Rear (See Footnote) (See Transmission Mounting Pg. D2, Ref.11)

-------

Unavailable

47

RIVET(50)

7621462

$1.49

48

CLAMP,NYLON,CABLE(10)

7080539

$4.79
