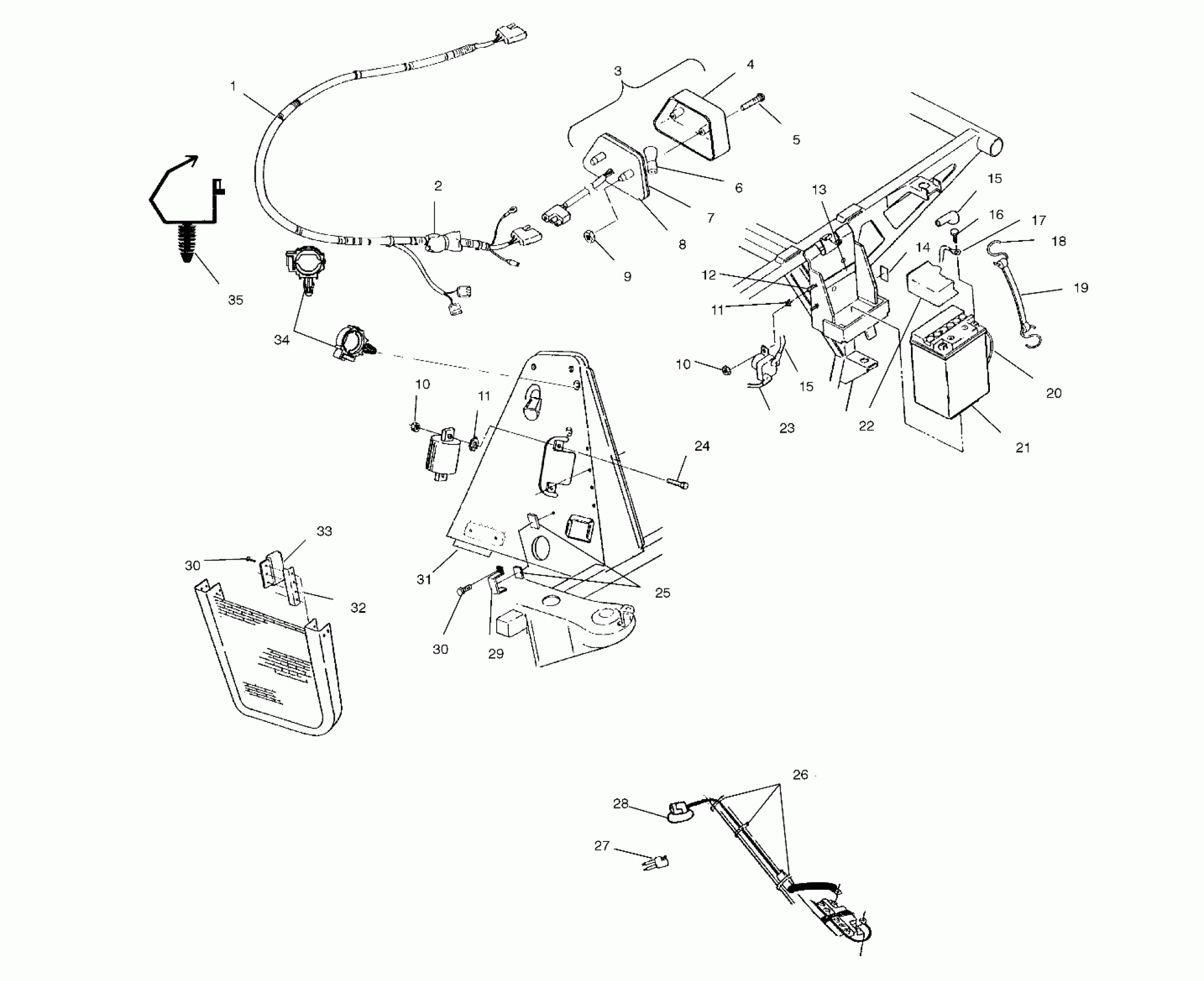

Polaris MAGNUM 500 - A99CD50AA ELECTRICAL/TAILLIGHT - A99CD50AA (4949254925C004) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE,500 XPL,PVT

2460699

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT(10)

7541925

$1.49

10

NUT(10)

7541925

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

SCREW(10)

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

15

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

15

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

16

BOLT,BATT,KIT(SHORT)

2200361

$3.99

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

TUBE,BATTERY VENT

5432077

Unavailable

21

Battery

4140006

$99.99

22

COVER,BATTERY

5431769

$14.39

23

CABLE,SOL/STARTER

4010093

$47.99

24

SCREW(10)

7512007

$3.99

25

PAD,RACK MOUNT

5810455

$3.19

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

PIGTAIL, POWER

2460442

$12.39

28

POWER ASM,12V

2410022

Unavailable

29

BRACKET-CDI

5241416

$5.75

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

31

Trim, Edge

8360012-10

Unavailable

32

HEATSINK RECT.

5131036

Unavailable

33

RECTIFIER,FULL WAVE

4060173

Unavailable

34

CLIP,ROSEBUD

4020149

$6.39

35

CLIP-ROUTING

7670109

$2.39
