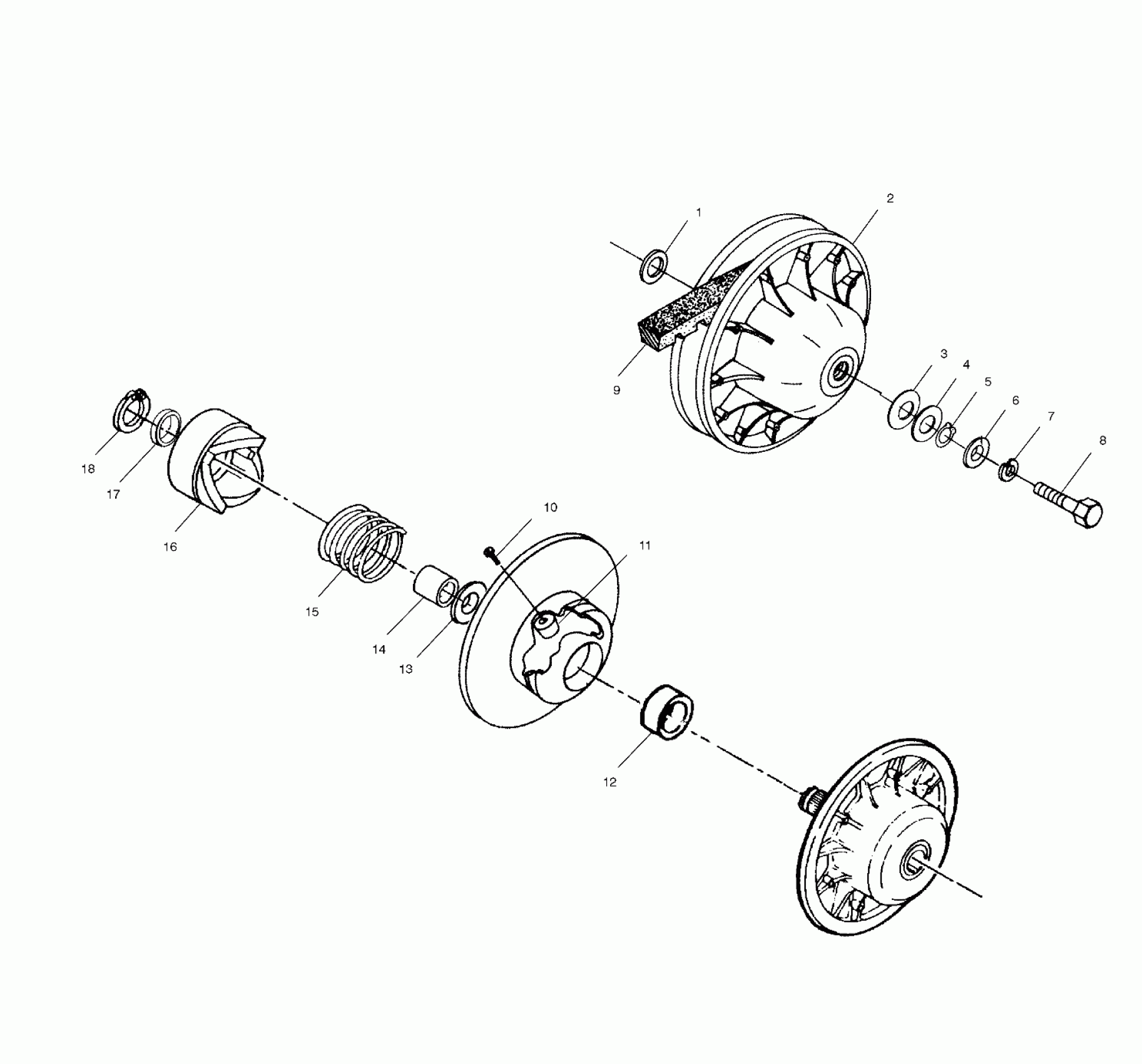

Polaris MAGNUM 500 - A99CD50AA DRIVEN CLUTCH - A99CD50AA (4949254925C002) Diagram

#

Description
Price

1

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

2

CLUTCH,DRVN,BRKG,4-STRK. (Incl. 3-5,10-18)

1322190

Unavailable

3

Washer

7556013

Unavailable

4

Bushing

7556010

Unavailable

5

RING,RETAIN.HD.

7710461

Unavailable

6

WASHER, DOMED(10)

5220646

$2.39

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7515382

$2.39

9

BELT,DRIVE,ENG.BRK.(5)

3211069

$67.99

10

SCREW, SPECIAL

7517323

$13.59

11

ROLLER,TAPER,ENG.BRAKE Substituted by 1321977

3250039

Unavailable

12

Bearing

3585710

$19.99

13

WASHER-2.06X2.62X.105-Y

5211115

$3.99

14

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

15

SPRING,DRVN,4-STK,WHT/GRN

7041636

Unavailable

16

RAMP,STA.BRAKE,4STRK,MACH

5131674

$83.99

17

SPACER(10)

5210752

$1.59

18

RING,RET.

7710448

$3.19
