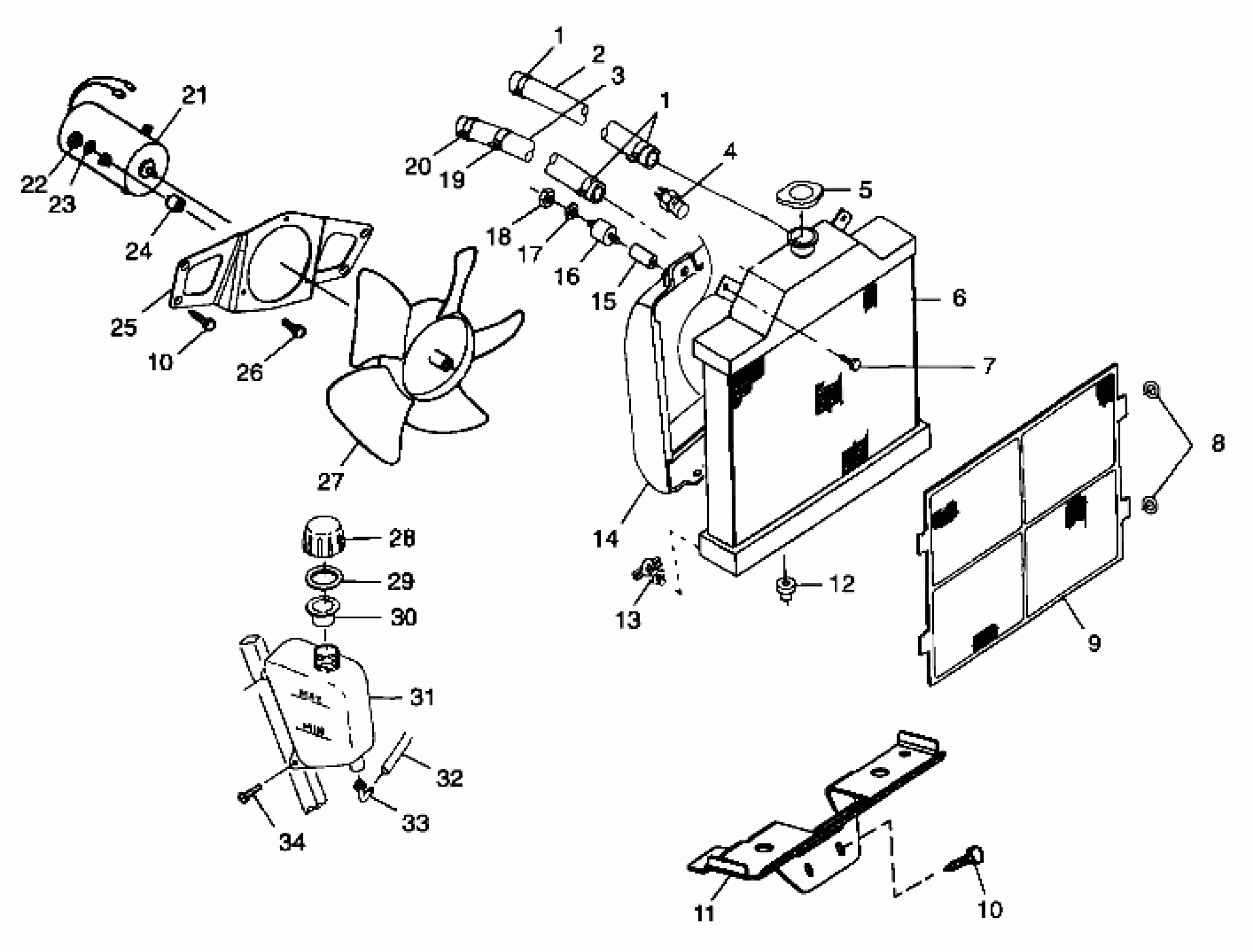

Polaris MAGNUM 500 - A99CD50AA COOLING SYSTEM - A99CD50AA (4949254925A011) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.19

1

CLAMP,HOSE,(10)

7080614

$7.19

2

HOSE (CHAFE PROTECTED)

5411615

$15.67

3

HOSE-3/4"X42CM,CHAFE PROTECTED

5411595

$23.99

4

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

5

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

6

RADIATOR,"U"FLOW

1240015

Unavailable

7

SCREW(10)

7512113

$3.99

8

O RING

5410607

$5.99

9

COVER,RADIATOR,W/MESH

5431760

Unavailable

10

SCREW,(10)

7517386

$1.49

10

SCREW,(10)

7517386

$1.49

11

MT,LOW.RADIATOR,BLK.

5242909-067

Unavailable

12

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

13

VALVE,DRAIN COCK

7052181

Unavailable

14

SHROUD-FAN,ATV

5433188

Unavailable

15

Spacer, Mount

5020572

$8.79

16

Mount, Rubber

3110032

$7.99

17

WASHER(10)

7558301

$1.49

18

NUT-LOCK(10)

7542122

$1.49

19

CLAMP-HOSE

7080807

$9.59

20

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

21

MOTOR,FAN,LIQ,D-SHAFT,CONN

4170013

Unavailable

22

Nut

7547004

$4.79

23

WASHER, FLAT(10)

7558201

$5.79

24

SPACER,FAN BRACKET

5432870

$10.29

25

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

26

SCREW

7517475

Unavailable

27

BLADE,FAN,NYLON,8"

5242550

Unavailable

28

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

29

GASKET-OVERFLOW CAP

5810279

$2.41

30

PLUG,CAP Substituted by 5433774

5431895

Unavailable

31

Tank, Surge

5431673

Unavailable

32

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

33

FITTING,90 DEGREE

7052065

$7.19

34

SCREW(10)

7512084

$1.49
