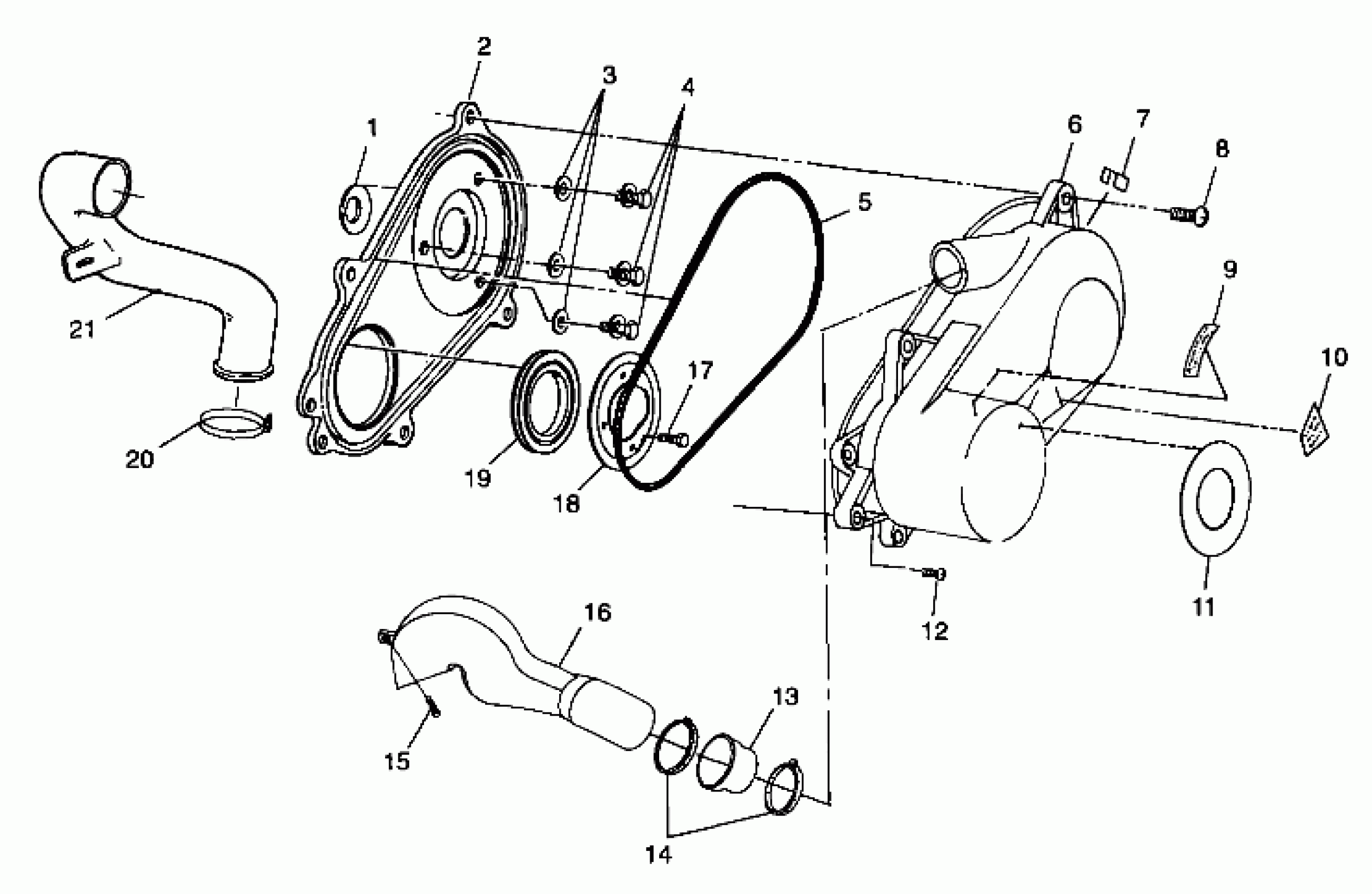

Polaris MAGNUM 500 - A99CD50AA CLUTCH COVER - A99CD50AA (4949254925C003) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.59

2

COVER,CLUTCH,INNER,SVC (Incl. 5,8,12,19)

2201421

Unavailable

3

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

BOLT /WASHER,1-1/8

7517601

$11.43

5

SEAL,CLUTCHCOVER

5521301

$30.88

6

COVER,CLUTCH,OUTER,HV Substituted by 5433540

5432849

$169.87

7

CLIP,CLUTCH COVER(10)

7670051

$2.99

8

SCREW(10)

7512093

$1.49

9

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

10

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

11

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

12

SCREW(10)

7512094

$1.59

13

BOOT,DUCT,HI-FLOW

5411489

Unavailable

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

15

SCREW,(10)

7517386

$1.49

16

DUCT-AIR OUTLET CLUTCH

5433172

Unavailable

17

Screw and Washer (See Crankcase Pg. D5, Ref. 6)

-------

Unavailable

18

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

19

Seal, Cover Case

5410575

Unavailable

20

CLAMP, NARROW BAND(10)

7080511

$4.79

21

DUCT,INLET,DOWN TUBE

5432698

Unavailable
