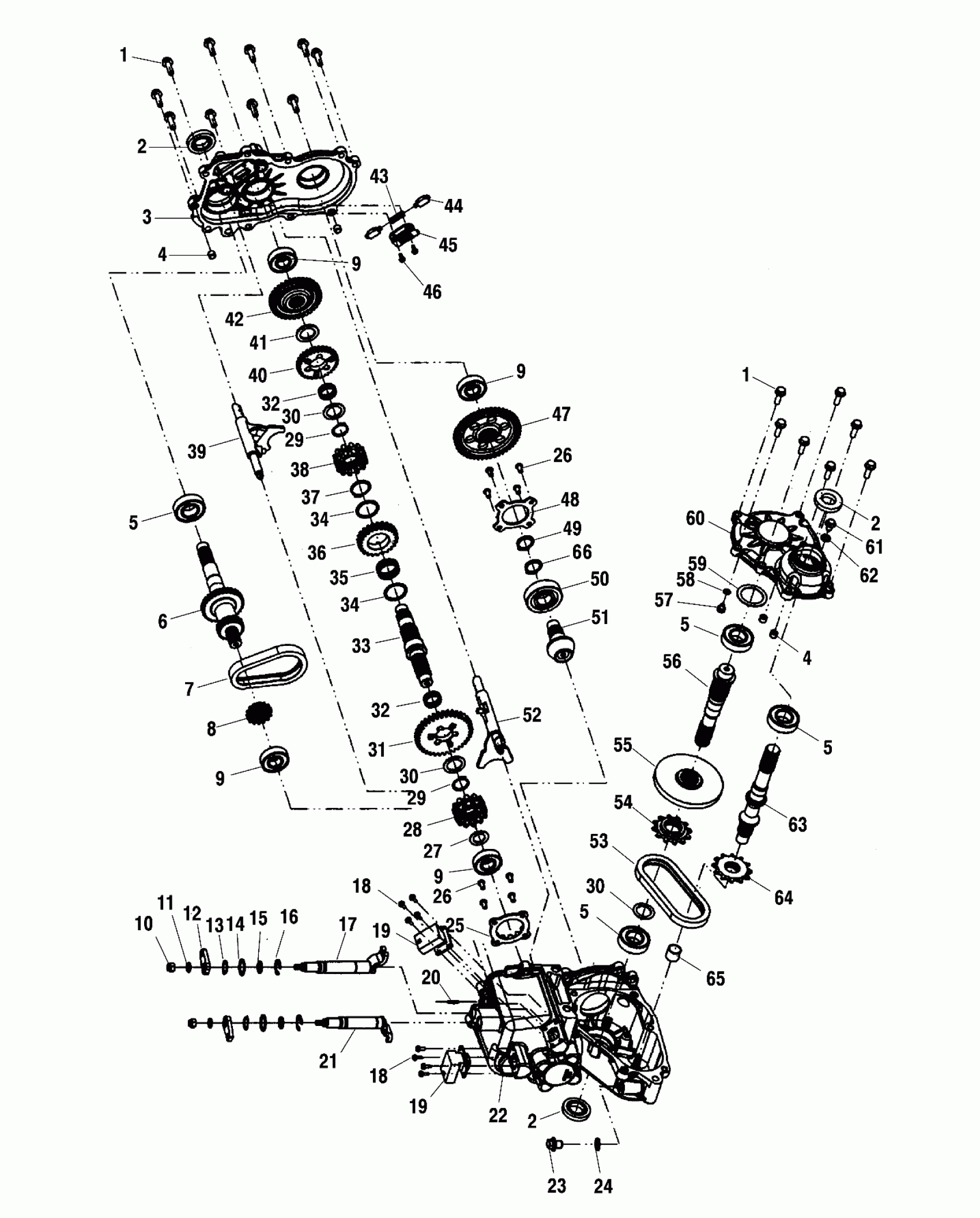

Polaris MAGNUM 500 - A00CD50AA GEARCASE (Service Replacement Asm.) - A00CD50FA (49ATVGEARCASE00MAG500) Diagram

#

Description
Price

-

Asm., Gearcase, Main (FA)(Incl. 1-65) (See Gearcase Pg. C10 for AA/AB/FB information) (FA)(Incl. 1-65) (See Gearcase Pg. C10 for AA/AB/FB information)

1341374

Unavailable

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal, Triple Lip

3233788

$31.99

2

Seal, Triple Lip

3233788

$31.99

2

Seal, Triple Lip

3233788

$31.99

3

Cover w/Park Lock, LH

3233763

Unavailable

4

Pipe, Knock

3233529

$7.99

4

Pipe, Knock

3233529

$7.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

6

Shaft, Input

3233756

Unavailable

7

Chain, Silent

3233036

Unavailable

8

Gear, 14/19T

3233755

$135.71

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

NUT

3233961

$2.79

11

WASHER

-------

Unavailable

12

Bellcrank

3233153

$27.99

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

Washer

3233040

$9.59

15

O-Ring

3233548

$27.99

16

Ring, Retaining

3233618

$1.75

17

Shaft, Shift

3233624

$58.73

18

SCREW

3233749

$5.59

18

SCREW

3233749

$5.59

19

Switch, 3 Position

3234019

Unavailable

19

Switch, 3 Position

3234019

Unavailable

20

Vent, Tube

3233037

Unavailable

21

Shaft, Shift, H/R

3233627

Unavailable

22

Gearcase, RH

3233765

$989.99

23

Plug

3233711

Unavailable

24

Washer

3233872

$9.59

25

Plate, Park Lock

3233757

$51.59

26

Screw

3233608

$5.99

26

Screw

3233608

$5.99

27

Washer

3233628

Unavailable

28

Engagement Dog, Low/Park

3233758

$115.99

29

RING, RETAINING

3233306

$4.79

29

RING, RETAINING

3233306

$4.79

30

WASHER,THRUST

3233619

$21.99

30

WASHER,THRUST

3233619

$21.99

30

WASHER,THRUST

3233619

$21.99

31

Gear, 36T

3233760

$146.39

32

BEARING, NEEDLE

3233103

$31.99

32

BEARING, NEEDLE

3233103

$31.99

33

Shaft, Reverse

3233761

Unavailable

34

WASHER

3233012

Unavailable

34

WASHER

3233012

Unavailable

35

BEARING, NEEDLE

3233014

$43.99

36

Sprocket, 24T

3233599

Unavailable

37

Ring, Retaining

3233029

$5.59

38

Engagement Dog, H/R, HLR

3234020

Unavailable

39

Fork, Shift, H/R

3233602

Unavailable

40

Gear, 30T

3233600

$198.32

41

Spacer

3233613

$3.51

42

Gear, Helical, 36T

3233708

Unavailable

43

Spring

3233032

$12.94

44

Pin, Interlock

3233308

Unavailable

45

Bracket, Interlock

3233309

$20.63

46

Screw, Tapping

3233747

Unavailable

47

Gear, Helical, 48T

3233709

$178.57

48

Cover, Bearing

3233609

$19.99

49

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

50

Bearing, Ball

3233607

$36.41

51

Subasm., Lapped Bevel [Incl. 55]

3230000

$595.54

52

Fork, Shift, Low/Park

3233759

$206.39

53

CHAIN, SILENT

3233784

$87.99

54

SPROCKET, 22T/18T

3233873

$99.99

55

Subasm., Lapped Bevel [Incl. 51]

3230000

$595.54

56

Shaft, Rear Output

3233622

Unavailable

57

THRUST BUTTON

3233582

$7.91

58

SHIM

3233583

$26.39

59

SHIM

3233611

$26.39

60

Cover, Output, Front

3233781

$275.22

61

Plug, Hex

3233777

$34.99

62

Washer

3234035

Unavailable

63

SHAFT,FRONT OUTPUT

3233625

$139.99

64

SPROCKET-22T

3233844

$127.59

65

BUSHING-GARLOCK

3233552

$23.99

66

SPACER

3233357

$21.99
