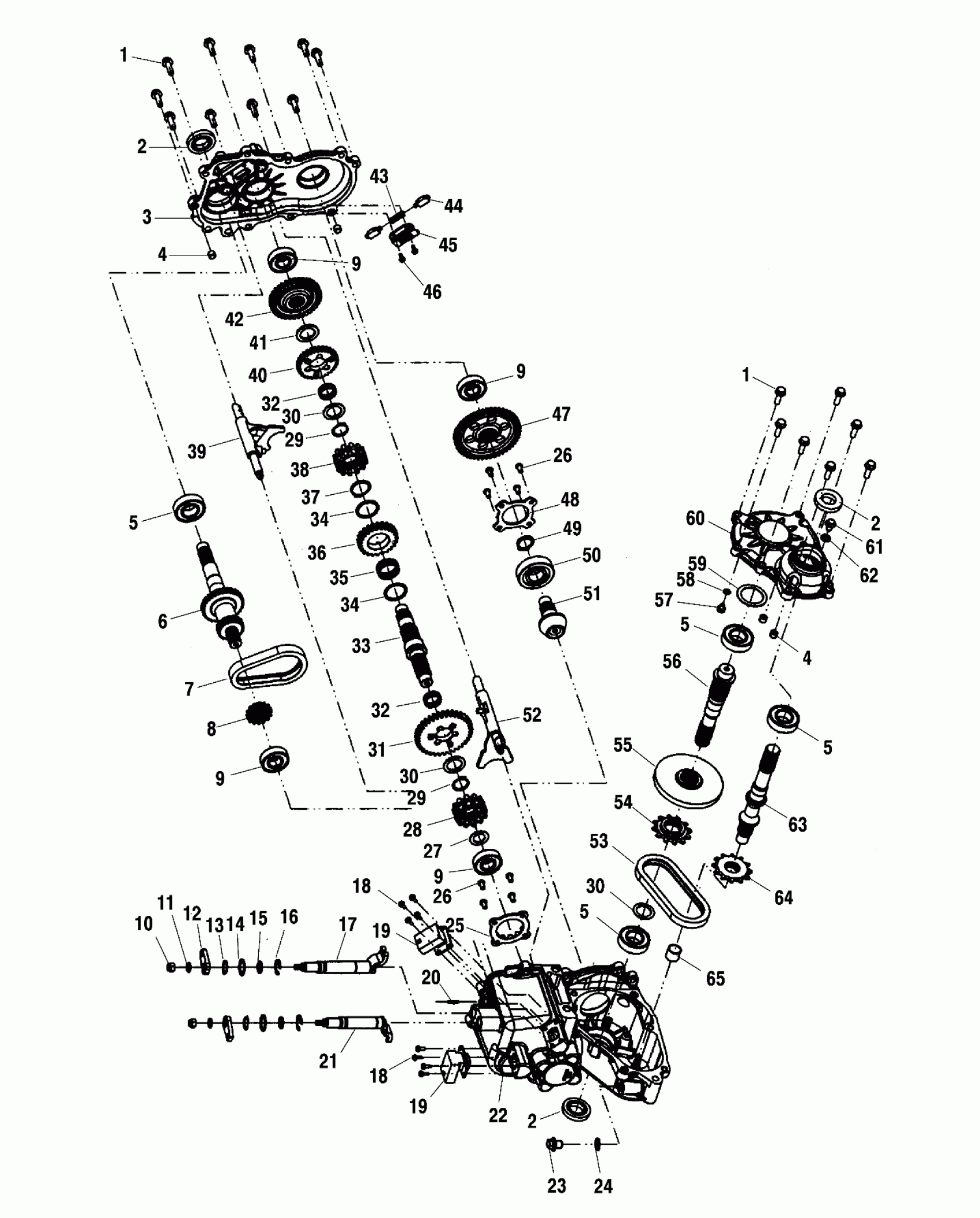

Polaris MAGNUM 500 - A00CD50AA GEARCASE (Not all Internal Service Parts are Readily Available) - A00CD50FA (4954885488E06) Diagram

#

Description
Price

-

Asm., Gearcase, Main (FA)(Incl. 1-65) (See Gearcase Pg. C10 for AA/AB/FB information) (FA)(Incl. 1-65) (See Gearcase Pg. C10 for AA/AB/FB information)

1341353

$1,899.99

1

Screw

3233252

$5.69

1

Screw

3233252

$5.69

2

Seal

3233248

$32.37

2

Seal

3233248

$32.37

2

Seal

3233248

$32.37

3

Cover w/Park Lock, LH

3233763

Unavailable

4

Pipe, Knock

3233529

$10.99

4

Pipe, Knock

3233529

$10.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

6

Shaft, Input

3233756

Unavailable

7

Chain, Silent

3233036

Unavailable

8

Gear, 14/19T

3233755

$135.71

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

10

Nut

3233055

$3.32

11

Washer

3233054

$6.46

12

Bellcrank

3233153

$32.37

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

14

Washer

3233040

$9.52

15

O-Ring

3233548

$33.24

16

Ring, Retaining

3233618

$1.75

17

Shaft, Shift

3233624

$58.73

18

SCREW

3233749

$5.65

18

SCREW

3233749

$5.65

19

Switch, 3 Position

3233615

Unavailable

19

Switch, 3 Position

3233615

Unavailable

20

Vent, Tube

3233037

Unavailable

21

Shaft, Shift, H/R

3233627

Unavailable

22

Gearcase, RH

3233765

$989.99

23

Plug

3233711

Unavailable

24

Washer

3233324

$8.54

25

Plate, Park Lock

3233757

$51.59

26

Screw

3233608

$5.99

26

Screw

3233608

$5.99

27

Washer

3233628

Unavailable

28

Engagement Dog, Low/Park

3233758

$115.08

29

RING, RETAINING

3233306

$4.76

29

RING, RETAINING

3233306

$4.76

30

WASHER,THRUST

3233619

$24.99

30

WASHER,THRUST

3233619

$24.99

31

Gear, 36T

3233760

Unavailable

32

BEARING, NEEDLE

3233103

$31.75

32

BEARING, NEEDLE

3233103

$31.75

33

Shaft, Reverse

3233761

Unavailable

34

WASHER

3233012

Unavailable

34

WASHER

3233012

Unavailable

35

BEARING, NEEDLE

3233014

$43.65

36

Sprocket, 24T

3233599

Unavailable

37

Ring, Retaining

3233029

Unavailable

38

Engagement Dog, H/R, HLR

3233533

Unavailable

39

Fork, Shift, H/R

3233602

Unavailable

40

Gear, 30T

3233600

$210.46

41

Spacer

3233613

$2.41

42

Gear, Helical, 36T

3233708

Unavailable

43

Spring

3233032

$13.75

44

Pin, Interlock

3233308

Unavailable

45

Bracket, Interlock

3233309

$20.48

46

Screw, Tapping

3233747

Unavailable

47

Gear, Helical, 48T

3233709

$178.57

48

Cover, Bearing

3233609

$19.99

49

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

50

Bearing, Ball

3233607

$36.41

51

Shaft, 10T

3233606

Unavailable

52

Fork, Shift, Low/Park

3233759

$204.76

53

Chain, Roller

3233626

Unavailable

54

Sprocket, 12T w/18T Spline

3233620

Unavailable

55

Gear, Spiral, Bevel, 31T

3233621

Unavailable

56

Shaft, Rear Output

3233622

Unavailable

57

THRUST BUTTON

3233582

$8.99

58

SHIM

3233583

$33.24

59

SHIM

3233611

$34.99

60

Cover, Output

3233623

Unavailable

61

Plug, Drain

3233253

$34.99

62

Washer

3233254

$8.08

63

SHAFT,FRONT OUTPUT

3233625

$141.65

64

Sprocket, 12T

3233903

Unavailable

65

BUSHING-GARLOCK

3233552

$23.81
