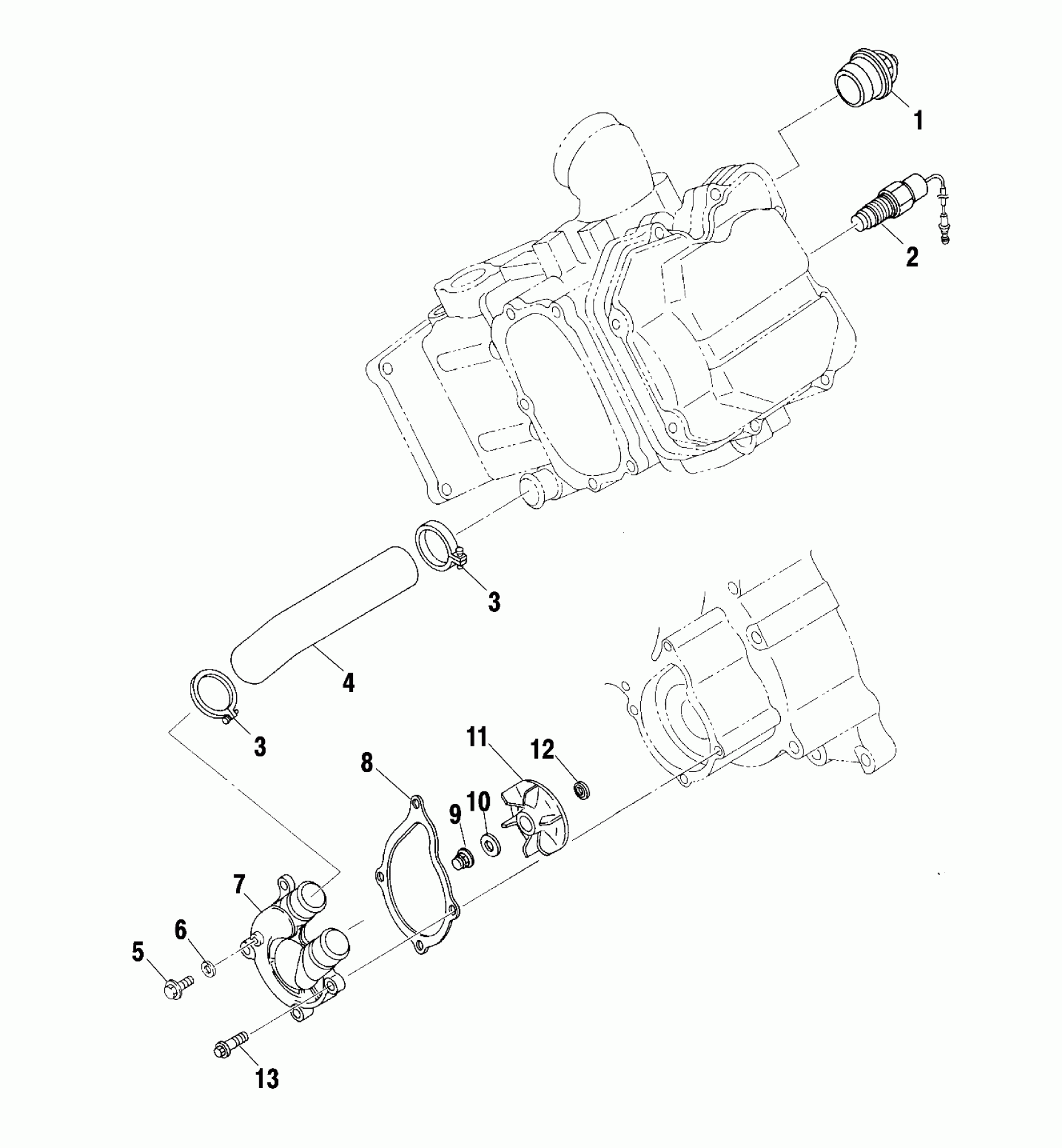

Polaris MAGNUM 500 2X4 HDS - A02CB50FC WATER PUMP - A02CB50FC (4974857485D08) Diagram

#

Description
Price

1

THERMOSTAT

3084940

$91.99

2

Switch, Thermostat

3085352

$127.99

3

Clamp, Hose

3084191

$12.99

3

Clamp, Hose

3084191

$12.99

4

Hose, Main

3085857

Unavailable

5

Bolt, Flange

3085359

$2.39

6

Gasket, Aluminum

3082758

$1.19

7

Cover, Water Pump

3085351

Unavailable

8

GASKET, WATER PUMP

3086840

$6.39

9

NUT, SELF LOCK

3085077

$9.59

10

Gasket

3083138

Unavailable

11

IMPELLER

3084935

$39.99

12

WASHER, SEAL

3084942

Unavailable

13

BOLT, FLANGE

3084877

Unavailable
