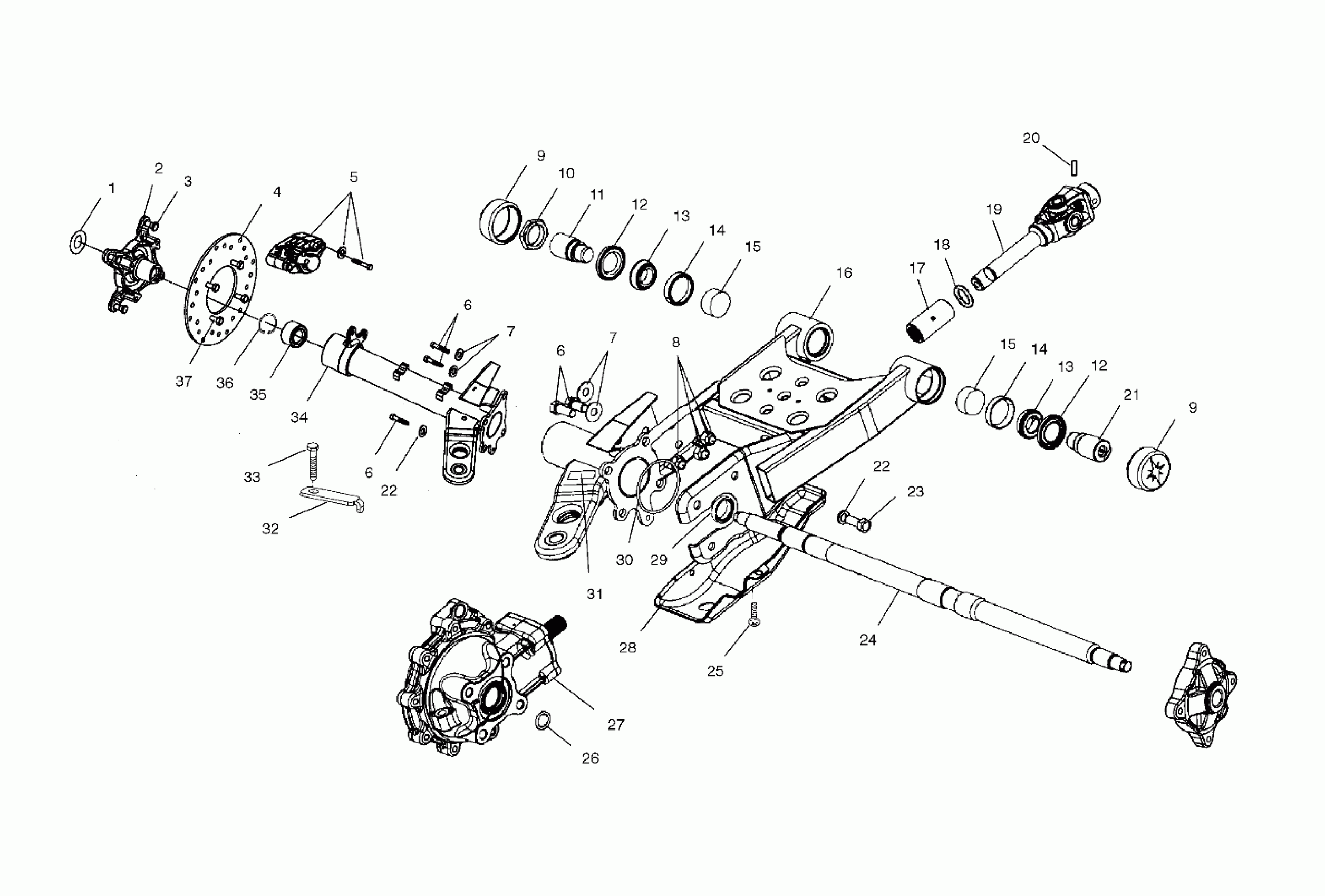

Polaris MAGNUM 500 2X4 HDS - A02CB50FC SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08) Diagram

#

Description
Price

1

O-Ring

5412022

Unavailable

2

Hub, Wheel, 2WD

5132627

Unavailable

3

Stud

7515523

$3.19

4

Disc, Brake

5244882

$94.99

5

Washer, Spring

7552603

$1.49

5

Screw

7515481

$2.63

5

ASM., BRAKE CALIPER [See Brake, Rear Pg. C4 for Details]

-------

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

7

WASHER

7555721

$1.49

7

WASHER

7555721

$1.49

8

Nut, Nylon

7547065

$3.99

9

Cap, Pivot, Swing Arm

5411532

Unavailable

9

Cap, Pivot, Swing Arm

5411532

Unavailable

10

Nut, Jam

5131863

Unavailable

11

Pivot, Threaded

5131864

Unavailable

12

Seal, Pivot, Swing Arm

3610072

Unavailable

12

Seal, Pivot, Swing Arm

3610072

Unavailable

13

Bearing, Tapered Roller Cone

3554506

$31.99

13

Bearing, Tapered Roller Cone

3554506

$31.99

14

Bearing, Tapered Roller Cup

3554507

$31.99

14

Bearing, Tapered Roller Cup

3554507

$31.99

15

Seal, Pivot, Swing Arm

5411602

Unavailable

15

Seal, Pivot, Swing Arm

5411602

Unavailable

16

Asm., Swing Arm [Incl. 14,15]

1541577

$243.16

17

Fitting, Lubrication

7080433

$1.49

17

Coupling, Prop Shaft, Greased

5132201

$59.99

18

O-RING

5411092

$1.60

19

Asm., Prop Shaft, Rear

1380137

$204.99

20

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

21

Pivot, Swing Arm

5132683

Unavailable

22

Washer, Split Lock

7553201

$3.99

22

Washer, Split Lock

7553201

$3.99

23

Bolt

7517585

$4.79

24

Axle, Rear

5132699

Unavailable

25

Screw

7517612

Unavailable

26

O-Ring

5411531

Unavailable

27

ASM., GEARCASE, REAR [See Rear Housing Pg. C11 for Details]

-------

Unavailable

28

Asm., Skid Plate, Rear

1012881

$58.39

28

Plate, Skid, Rear Housing

5242851-067

$19.83

28

Pad, Rubber

5811716

Unavailable

29

Collar, Rear Axle

5132698

Unavailable

30

O-Ring

5411707

Unavailable

31

Decal, Hitch

7078261

Unavailable

32

Clamp, Brake Line, Rear

5245050

$1.75

33

Screw

7512017

$4.79

34

Tube, Axle, LH

1013264-067

Unavailable

35

Bearing, Hubstrut

3514342

Unavailable

36

RING, RETAINING

7710507

$2.39

37

BOLT

7512325

$2.39
