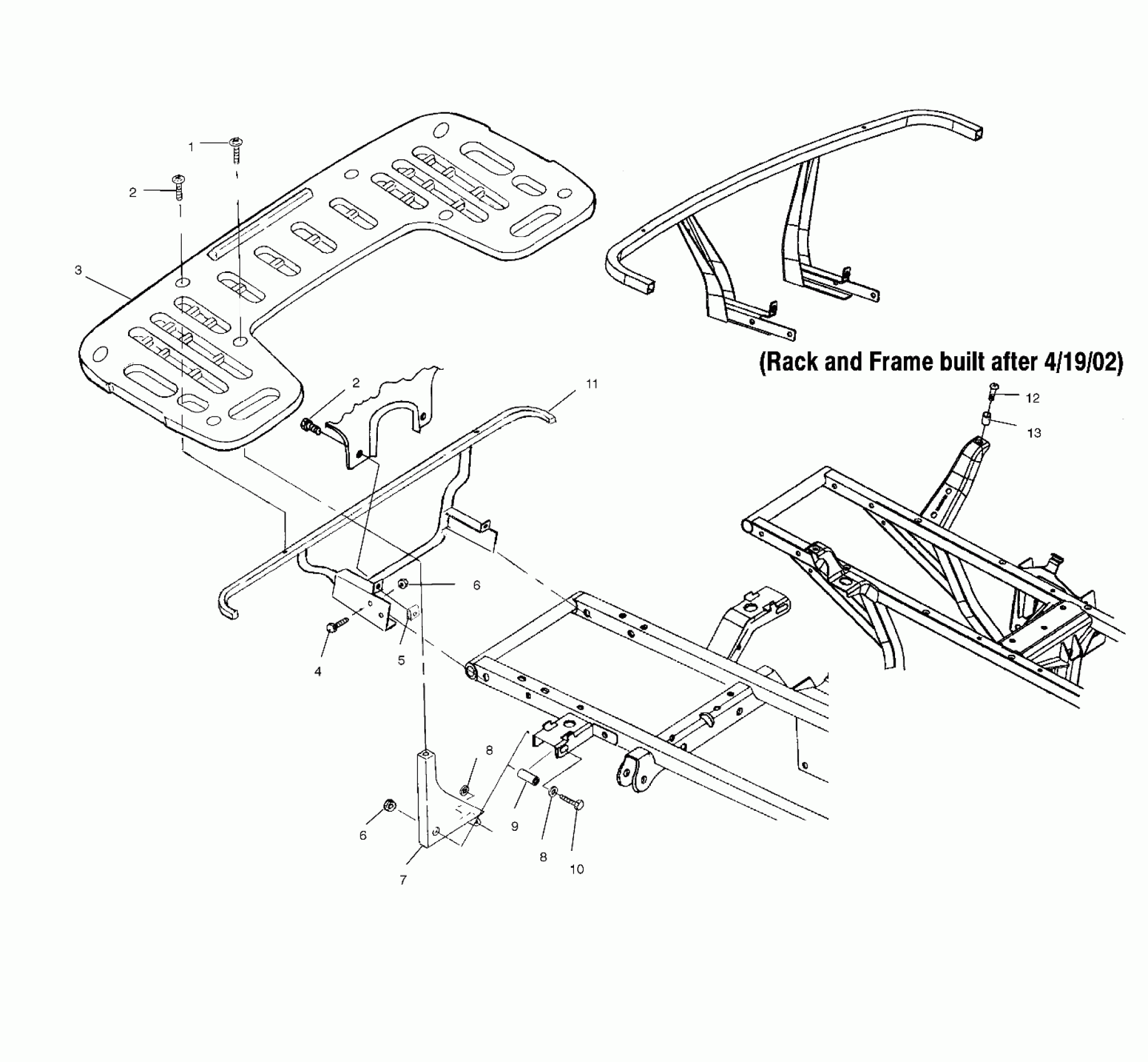

Polaris MAGNUM 500 2X4 HDS - A02CB50FC REAR RACK MOUNTING - A02CB50FC (4974857485A06) Diagram

Screw [If built before 9/03/01]

7517686

$1.59

SCREW

7517685

$1.59

SCREW

7517685

$1.59

Asm., Rack, Rear [Incl. Warning Decal]

2670174-070

Unavailable

Bolt

7512329

$3.97

NUT, CHIMNEY

7670096

$1.59

NUT-5/16-18 NYLOK-Y [If built before 9/03/01]

7542324

$0.79

NUT-5/16-18 NYLOK-Y [If built before 9/03/01]

7542324

$0.79

Mount, Front, Rear Rack, LH [If built before 9/03/01]

1040524-067

Unavailable

Mount, Front, Rear Rack, RH [If built before 9/03/01]

1040525-067

Unavailable

WASHER-.344X.688X.063 FL-Y [If built before 9/03/01]

7558402

$0.99

WASHER-.344X.688X.063 FL-Y [If built before 9/03/01]

7558402

$0.99

Spacer [If built before 9/03/01]

5333332-067

$6.59

Screw [If built before 9/03/01]

7515385

$5.56

Support, Rear Rack [If built after 4/09/02]

1013724-067

Unavailable

Support, Rear Rack [If built before 4/09/02]

1040490-067

Unavailable

Screw [If built after 9/03/01]

7517983

$9.52

Spacer [If built after 9/03/01]

5334092

Unavailable
