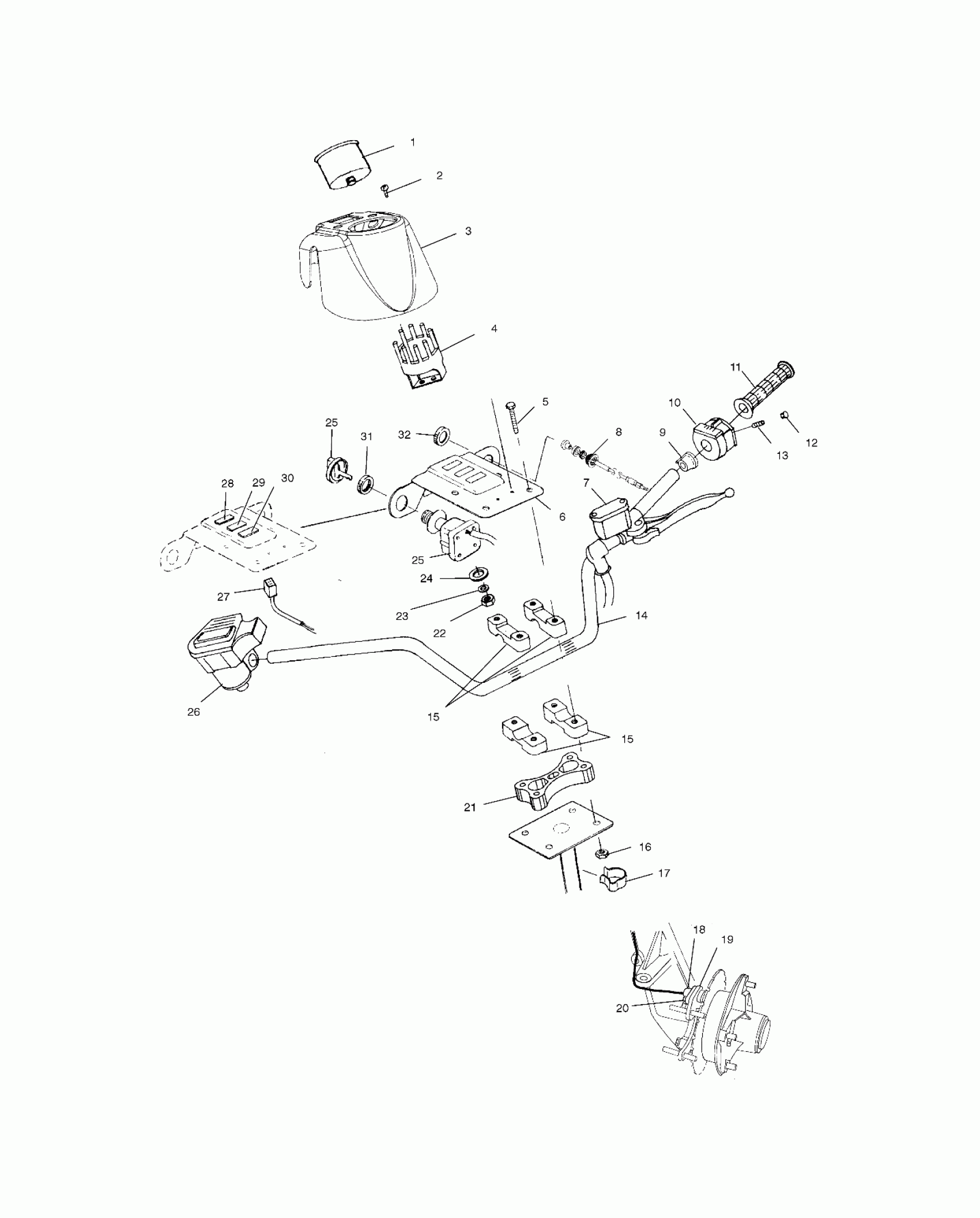

Polaris MAGNUM 500 2X4 HDS - A02CB50FC HANDLEBAR - A02CB50FC (4974857485B09) Diagram

#

Description
Price

1

Speedometer

3280377

Unavailable

2

SCREW

7512024

$4.79

3

Panel, Instrument

5433843-070

$53.59

4

Clamp

3280201

Unavailable

5

Screw

7517224

Unavailable

6

Bracket, Instrument Panel

5244341-067

$5.75

7

ASM., MASTER CYLINDER [See Brake Line/Master Cylinder Pg. C1 for Details]

-------

Unavailable

8

Cable, Choke

7081008

$79.99

9

Spacer, Switch, LH

5433903

Unavailable

10

Switch, Handlebar, H/L/O R/OR

4010422

$123.54

11

Grip, Handlebar

5433834-070

$24.27

12

PLUG, HOLE

5432952

$5.59

13

Screw

7517625

$4.79

14

Tube, Handlebar

5224715-067

Unavailable

15

Block, Handlebar

5630629

$11.59

15

Block, Handlebar

5630629

$11.59

16

Nut, Nylok

7542122

$1.49

17

Clip, Cable Retaining

7080631

$6.29

18

Cap, Hall Sensor

5132382

$23.99

19

Sensor, Hall Effect

4010298

$111.99

20

Screw

7517658

$5.59

21

Block, Riser

5630633

$19.03

22

Nut

7541933

$4.99

23

Washer, Flat

7558212

$1.49

24

Washer, Lock

7555868

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Ignition

4010390

Unavailable

25

Cover, Key

5431964

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Ignition

4010390

Unavailable

25

Cover, Key

5431964

Unavailable

26

ASM., THROTTLE CONTROL [See Controls - Throttle Asm./Cable Pg. A12, Ref. 5]

-------

Unavailable

27

Harness, Control Panel

2460715

Unavailable

28

Indicator, Neutral/Reverse

4040054

$31.99

29

Indicator, "Hot Temperature"

4040053

$31.99

30

Plug, Indicator Hole

5430967

$5.65

31

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

32

Nut, Choke Slide

7080922

$3.19
