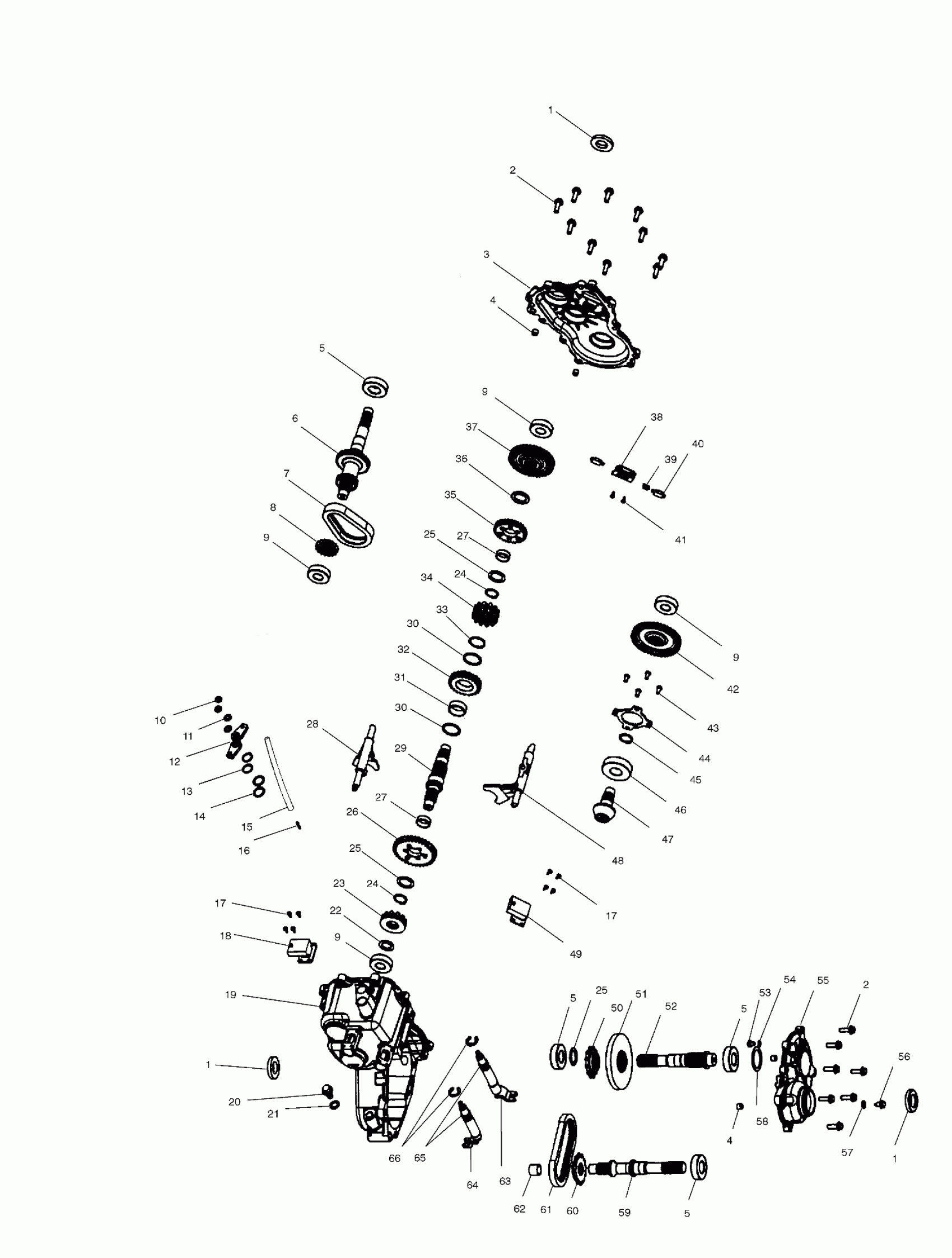

Polaris MAGNUM 500 2X4 HDS - A02CB50FC GEARCASE (Not All Internal Service Parts are Readily Available) - A02CB50FC (4974857485C09) Diagram

#

Description
Price

-

Asm., Gearcase, Main [Incl. 1-66]

1341363

Unavailable

1

Seal

3233788

$32.37

1

Seal

3233788

$32.37

1

Seal

3233788

$32.37

2

Screw

3233252

$5.69

2

Screw

3233252

$5.69

3

Gearcase, LH

3233610

Unavailable

4

Pipe, Knock

3233529

$10.99

4

Pipe, Knock

3233529

$10.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

6

Shaft, Input, 31T

3233756

Unavailable

7

Chain, Silent

3233036

Unavailable

8

Gear, 16T

3233770

$93.65

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

10

NUT, LOCK

3233961

$3.32

11

Washer

3233054

$6.46

12

Bellcrank HLR

3233153

$32.37

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

14

Washer

3233040

$9.52

15

Line, Vent

8360009-600

Unavailable

16

Tube, Vent

3233037

Unavailable

17

Screw, Tapping

3233749

$5.65

17

Screw, Tapping

3233749

$5.65

18

Switch, 3 Position

3233615

Unavailable

19

Gearcase, RH

3233902

Unavailable

20

Plug

3233711

Unavailable

21

Washer

3233324

$8.54

22

Washer

3233628

Unavailable

23

Engagement Dog, Low

3233629

$178.08

24

RING, RETAINING

3233306

$4.76

24

RING, RETAINING

3233306

$4.76

25

WASHER,THRUST

3233619

$24.99

25

WASHER,THRUST

3233619

$24.99

25

WASHER,THRUST

3233619

$24.99

26

Gear, 35T

3233631

$132.54

27

BEARING, NEEDLE

3233103

$31.75

27

BEARING, NEEDLE

3233103

$31.75

28

Fork, Shift, H/R

3233602

Unavailable

29

Shaft, Reverse

3233598

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

BEARING, NEEDLE

3233014

$43.65

32

Sprocket, 24T

3233599

Unavailable

33

Ring, Retaining

3233029

Unavailable

34

Engagement Dog, H/R

3233533

Unavailable

35

Gear, 30T

3233600

$210.46

36

Spacer

3233613

$2.41

37

Gear, Helical, 40T

3233601

Unavailable

38

Bracket, Interlock

3233309

$20.48

39

Spring

3233032

$13.75

40

Pin, Interlock

3233308

Unavailable

41

Screw

3233747

Unavailable

42

Gear, Helical, 44T

3233612

Unavailable

43

Screw

3233608

$5.99

44

Cover, Bearing

3233609

$19.99

45

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

46

Bearing, Ball

3233607

$36.41

47

Shaft, 10T

3233606

Unavailable

48

Fork, Shift, Low

3233605

Unavailable

49

Switch, 2 Position

3233617

Unavailable

50

Sprocket, 12T

3233620

Unavailable

51

Gear, Spiral, Bevel, 31T

3233621

Unavailable

52

Shaft, Rear Output

3233622

Unavailable

53

THRUST BUTTON

3233582

$8.99

54

SHIM

3233583

$33.24

55

Cover, Output

3233781

Unavailable

56

Plug, Drain

3233777

$34.99

57

Washer

3233254

$8.08

58

SHIM

3233611

Unavailable

59

SHAFT,FRONT OUTPUT

3233625

$141.65

60

Sprocket, 12T

3233093

Unavailable

61

Chain, Roller

3233626

Unavailable

62

BUSHING-GARLOCK

3233552

$23.81

63

Shaft, Shift

3233624

$58.73

64

Shaft, Shift, H/R

3233627

Unavailable

65

O-Ring

3233548

$33.24

66

Ring, Retaining

3233618

$1.75
