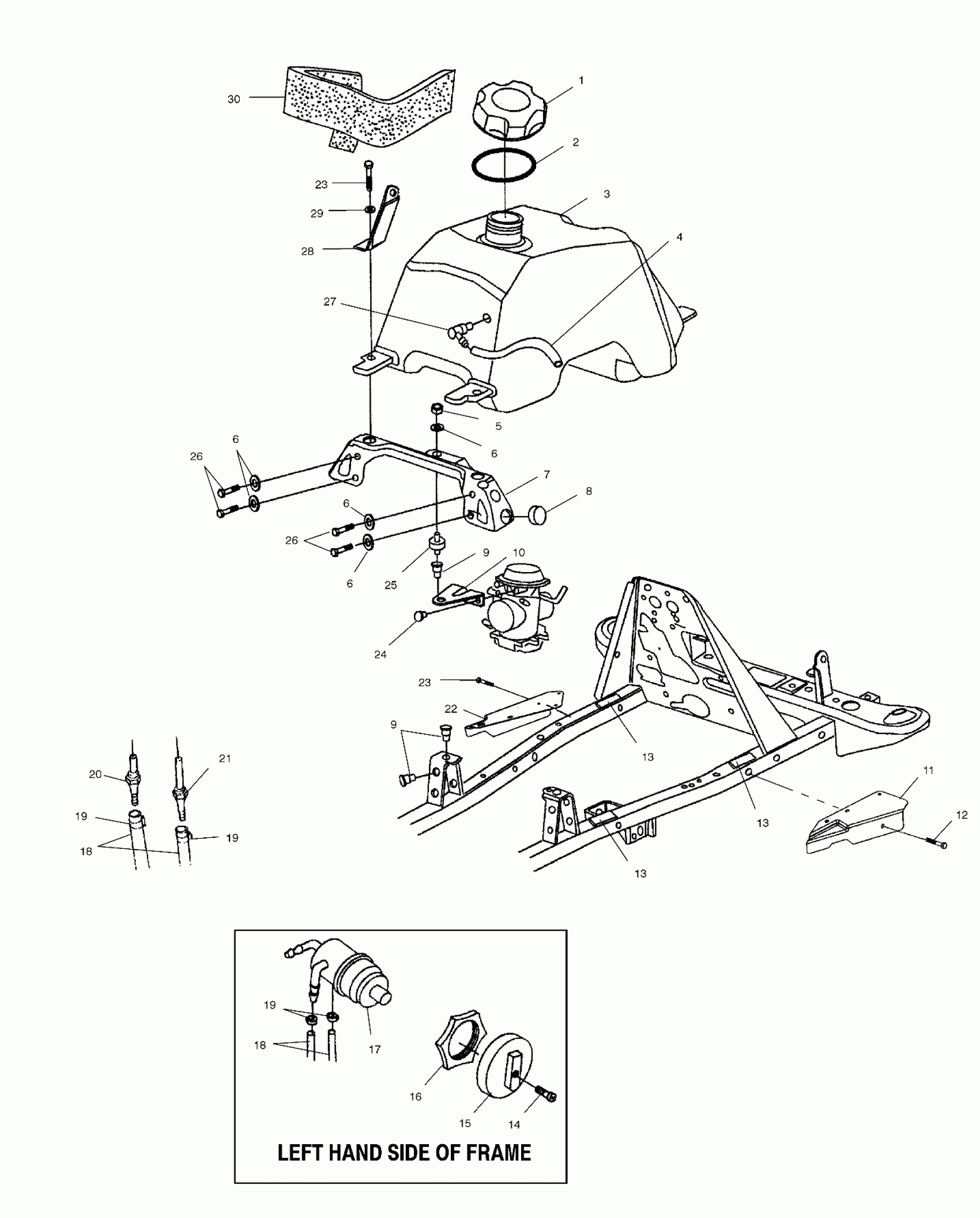

Polaris MAGNUM 500 2X4 HDS - A02CB50FC FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01) Diagram

#

Description
Price

1

Cap, Gas Tank [Includes Gasket]

5433687

$20.22

2

GASKET

5812123

$5.65

3

Asm., Fuel Tank [Incl. 20,21,27]

2520143

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Nut, Nylok

7542105

$3.99

6

Washer, Flat

7552605

$5.27

6

Washer, Flat

7552605

$5.27

6

Washer, Flat

7552605

$5.27

6

Washer, Flat

7552605

$5.27

7

Bracket, Carburetor Support

5245672-067

$13.19

8

Bumper, Rubber

5410414

$3.19

9

Nutsert

7547069

$3.99

9

Nutsert

7547069

$3.99

10

Mount, Carb

5245673-067

$2.63

11

Shield, Splash, RH

5245533-067

$15.67

12

SCREW

7517386

$1.49

13

Pad, Fuel Tank Bracket

5810317

Unavailable

13

Pad, Fuel Tank Bracket

5810317

Unavailable

13

Pad, Fuel Tank Bracket

5810317

Unavailable

14

Screw

7517505

$1.59

15

Knob, Fuel Valve

5432559

$10.39

16

Nut, Fuel Valve

5432733

Unavailable

17

Valve, 3-Way

7052161

$39.99

18

Line, Fuel

8450040-600

Unavailable

18

Line, Fuel

8450040-600

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

Fitting, Fuel Outlet, Main

7052150

$27.99

21

Fitting, Fuel Outlet, Reserve

7052149

$23.99

22

Shield, Splash, LH

5245394-067

$15.67

23

Screw

7512277

$4.79

23

Screw

7512277

$4.79

24

Screw and Washer

3084205

$3.99

25

MOUNT, CARBURETOR

3110050

$12.99

26

Screw

7512276

$4.79

26

Screw

7512276

$4.79

27

Vent, Tank

5431053

$19.99

28

Bracket, Fuel Cover Mount, Rear, LH

5222154-067

Unavailable

28

Bracket, Fuel Cover Mount, Rear, RH

5222155-067

Unavailable

29

Washer Flat

7558301

$1.49

30

Seal, Foam

5811942

Unavailable
