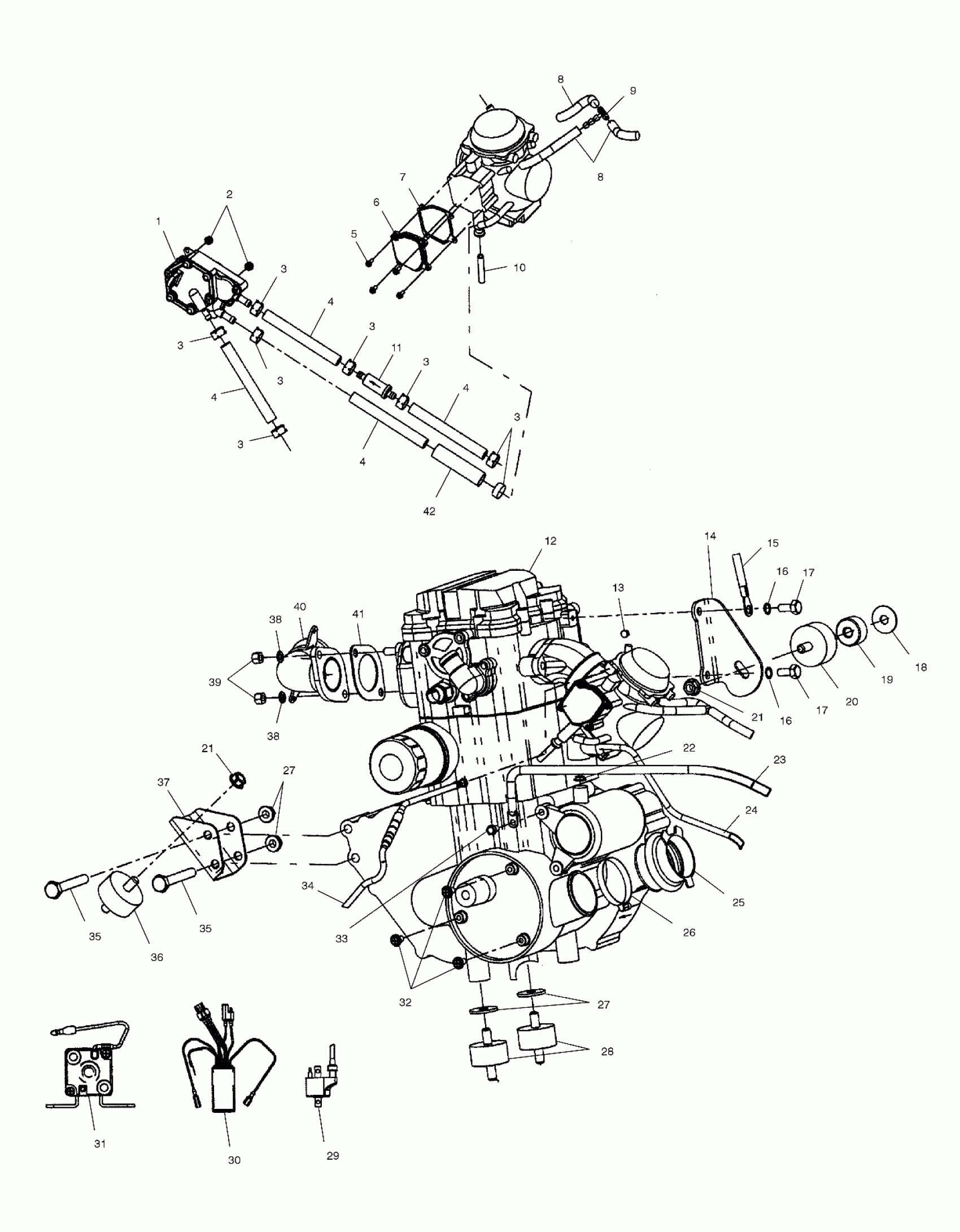

Polaris MAGNUM 500 2X4 HDS - A02CB50FC ENGINE MOUNTING - A02CB50FC (4974857485A13) Diagram

#

Description
Price

1

Asm., Fuel Pump

3085275

$77.21

2

NUT-M5X.8,HX NYL-Y

7546601

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

4

Line, Fuel

8450040-600

$68.79

4

Line, Fuel

8450040-600

$68.79

4

Line, Fuel

8450040-600

$68.79

4

Line, Fuel

8450040-600

$68.79

5

SCREW

3130535

$7.19

6

COVER

3130511

$43.99

7

O-Ring

3130512

$39.99

8

Line, Fuel

8450003-1525

Unavailable

8

Line, Fuel

8450003-1525

Unavailable

9

Fitting, Lubrication

7052075

$9.59

10

LINE, FUEL

8360009-600

$40.46

11

FILTER

2530009

$5.65

12

Engine, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty c

3085556

Unavailable

13

Cable Guide

3130543

$27.99

14

Mount, Engine, Top

5242936-067

$5.75

15

Cable, Ground

4010132

Unavailable

16

WASHER, SPRING LOCK

7552901

$1.49

16

WASHER, SPRING LOCK

7552901

$1.49

17

BOLT

7512315

$4.79

17

BOLT

7512315

$4.79

18

WASHER, FLAT

7555823

$3.99

19

Spacer

5132007

Unavailable

20

Mount, Rubber

3021045

Unavailable

21

NUT

7547108

$4.79

21

NUT

7547108

$4.79

22

NUT, FLANGE

3083649

$3.99

23

Cable, Block Battery/Engine

4010095

Unavailable

24

Cable, Solenoid/Starter

4010093

$47.99

25

Boot, Clutch, Intake

5410421

$11.19

26

Clamp, Narrow Band

7080511

$4.79

27

Washer

7555815

$3.99

27

Washer

7555815

$3.99

28

Mount, Rubber, Rear

3021119

Unavailable

29

Asm., Ignition Coil

3084690

Unavailable

30

CDI System (See Magneto Pg. D11, Ref. 15)

-------

Unavailable

31

Switch, Magnetic (See Magneto Pg. D11, Ref. 18)

-------

Unavailable

32

Screw and Washer

3084205

$3.99

33

Bolt and Washer

3082038

$3.99

34

Cable, Choke

7081008

$79.99

35

SCREW

7515417

$4.79

35

SCREW

7515417

$4.79

36

Mount, Rubber, Top

3110044

Unavailable

37

Mount, Engine, Lower, Front

5242818-067

$40.19

38

Washer, Lock

3080530

$3.19

38

Washer, Lock

3080530

$3.19

39

Nut

3080285

Unavailable

40

Manifold

1260978-029

Unavailable

41

GASKET

3085075

$39.99

42

Sheath, Foil, Laminated

8450080-18

$15.49
