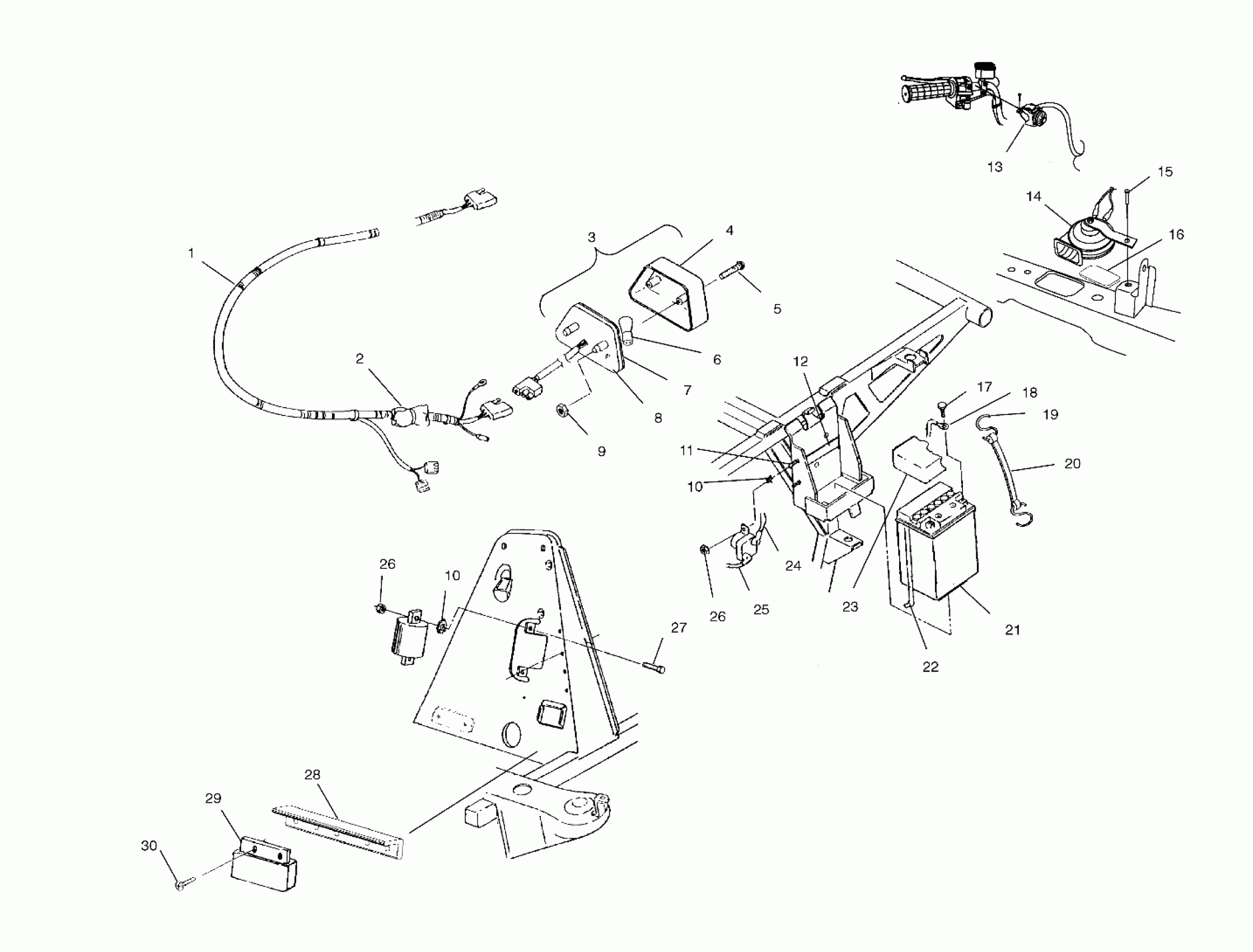

Polaris MAGNUM 500 2X4 HDS - A02CB50FC ELECTRICAL/TAILLIGHT - A02CB50FC (4974857485C05) Diagram

#

Description
Price

1

Harness, Main Wire

2460981

$273.02

2

Kit, Circuit Breaker, 20 AMP

2200593

$63.99

3

Asm., Taillight w/Brake Light [Incl. 4-9](If built before 2/01/02)

2432034

$55.99

3

Asm., Taillight, 12V [Incl. 4-9](If built after 2/01/02)

2410320

$63.99

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

Backing, Taillight/Brake Light

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

Washer

7571602

$4.79

10

Washer

7571602

$4.79

11

Screw

7512027

$1.49

12

PAD-BATTERY

5810290

$7.27

13

Switch, Horn

4010311

$59.99

14

Horn

4010310

Unavailable

15

SCREW

7517386

$1.49

16

Pad

5810317

Unavailable

17

Kit, Battery Bolt, Short

2200361

$3.99

18

Cable, Battery/Engine

4010095

Unavailable

19

Hook, Battery Strap

7010032

$1.59

20

Strap, Battery Holddown

5410424

Unavailable

21

Battery

4140006

$99.99

22

Tube, Battery Vent

5432077

Unavailable

23

Cover, Battery

5431769

$14.39

24

Cable, Battery/Solenoid

4010094

Unavailable

25

Cable, Solenoid/Starter

4010093

$47.99

26

Nut, Nylok

7541925

$1.49

26

Nut, Nylok

7541925

$1.49

27

BOLT

7512007

$3.99

28

Sink, Heat

5131036

Unavailable

29

Rectifier, Regulator, LR 39

4060173

Unavailable

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
